OEX Alternator 24V 60A Sawafuji Style SXA732

The OEX Alternator SXA732 is a 24V, 60A unit in Sawafuji style, supplied new and fitted with an internal regulator. It is described as a brushless unit and uses a 9 groove pulley, so pulley style and drive setup need to be checked against the vehicle or machine before ordering.

This alternator is listed with a twin leg mount, 86mm inside mounting legs, 220mm mount centre to centre, a 14mm pivot hole and a 10mm adjusting hole. Those measurements are the key points to compare if you are replacing an existing Sawafuji alternator rather than fitting one from scratch.

OEX identifies this part as SXA732, with pin code IR33 and a shaft dimension of 25. The stated application coverage includes Hino, Franna, Hitachi, Kobelco and UD Nissan Diesel/UD Trucks models, but final fitment still depends on the exact alternator mounted in the vehicle or equipment.

Key Features

• 24V alternator rated at 60 amps
• Sawafuji style unit
• Internal regulator
• Brushless unit
• 9 groove pulley
• Twin leg alternator mount

Specifications

• Voltage: 24V
• Power rating: 60A
• Part No.: SXA732

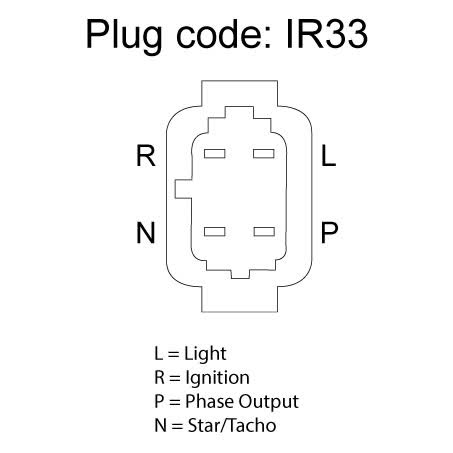

• Pin Code: IR33
• Regulator Type: Internal
• Pulley Outside Diameter: 75mm
• Pulley Section: 9 Groove
• Alternator Mount: Twin Leg

Verified application references

• Hino applications are listed, including 300 Series and 500 Series
• Franna applications are listed, including AT-14, AT-15, AT-18 and AT-20
• Hitachi application reference includes EX300
• Kobelco application references include SK200-10, SK210LC-10, SK225SR-5, SK230SRLC-5, SK235SR-5, SK250-10 and SK260LC-10
• UD Nissan Diesel and UD Trucks Condor applications are listed

Application and Buying Notes

Before ordering, compare the physical alternator you are removing with the key measurements on this SXA732 unit: 24V, 60A, twin leg mount, 86mm inside mounting legs, 220mm mount centre to centre, 14mm pivot hole and 10mm adjusting hole. If any of those points differ, the part may not line up correctly even if the vehicle make is similar.

The pulley arrangement matters here because this alternator has a 9 groove pulley and a 75mm outside diameter. The note also says it is a brushless unit and may need the original pulley for some applications, so check the existing pulley style and drive belt setup before fitting.

This part is listed for Sawafuji style applications and OEX identifies it under part number SXA732 with pin code IR33. When replacing a charging unit, the part number and mounting dimensions are usually the safest checks, especially on equipment and commercial vehicles where similar-looking alternators can differ in bracket spacing or pulley configuration.

The warranty stated for this alternator is 3 years passenger and 1 year commercial. That warranty detail does not replace fitment checking, but it is useful when you are matching the part to a vehicle or machine that is used in different duty cycles.

If you are unsure, compare the original unit’s labels, mounting ears, pulley groove count and hole sizes before purchase. The listed applications cover several Hino, Franna, Hitachi, Kobelco and UD Nissan Diesel/UD Trucks examples, but the exact alternator fitted to the vehicle remains the deciding factor.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number SXA732 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 86mm, Pivot Hole Diameter 14, Pulley Outside Diameter 75mm, Regulator Type Internal, Voltage 24, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Shaft Dimension 25, Product Group 1 ROTATING ELECTRICAL, Part No. SXA732, Brand OEX, Description OEX Alternator 24V 60A Sawafuji Style, Adjusting Hole Diameter 10, Pin Code IR33, Power Rating (Amp) 60, Pulley Section 9 Groove, Suits Unit Make Sawafuji.

OEX Alternator 24V 60A Sawafuji Style. Part number SXA732 should be checked first. Listed voltage is 24. Listed output rating is 60. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 9 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number SXA732, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 60 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching the SXA732 part number, IR33 pin code, 24V specification, 60A rating, twin leg mount and pulley details to the unit currently fitted to the vehicle or machine. Application listings are a guide only and should be checked against the existing alternator and mounting points before ordering.

FAQ

What is the voltage and output rating of this alternator?

It is a 24V alternator rated at 60A.

What is the part number?

The listed part number is SXA732.

Does this alternator have an internal regulator?

Yes. The regulator type is listed as internal.

What type of pulley does it use?

It has a 9 groove pulley and a 75mm pulley outside diameter.

Which mounting measurements should I check?

Check the twin leg mount, 86mm inside mounting legs, 220mm mount centre to centre, 14mm pivot hole and 10mm adjusting hole.

Are there any application examples listed?

Yes. Listed references include Hino 300 Series and 500 Series, Franna AT-14, AT-15, AT-18 and AT-20, Hitachi EX300, several Kobelco SK models, and UD Nissan Diesel/UD Trucks Condor applications.
