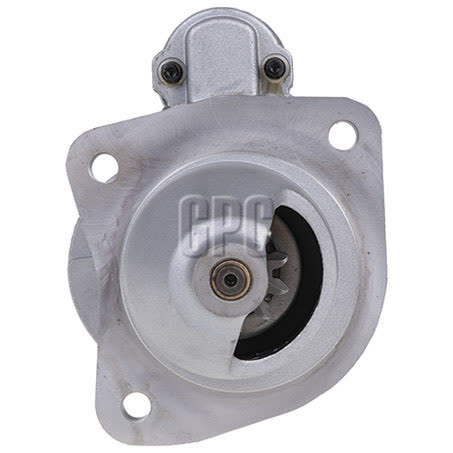

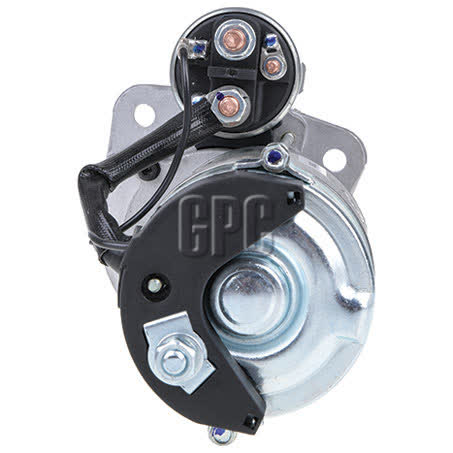

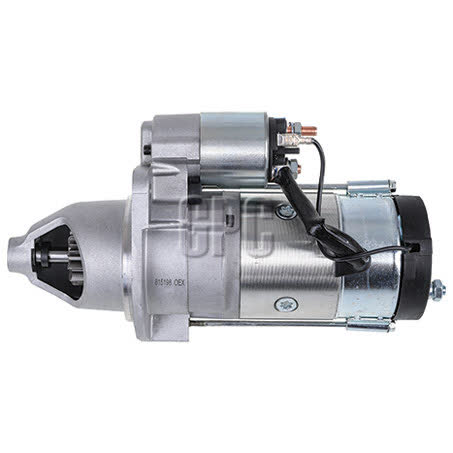

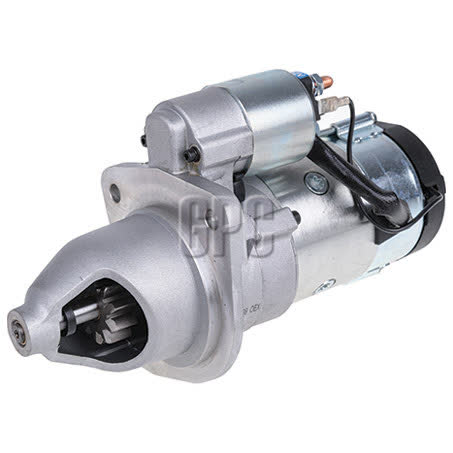

OEX Starter Motor 12V 11T CW Valeo Style VXS932

The OEX VXS932 is a new 12V starter motor in a Valeo style configuration, with 11 teeth, clockwise rotation and a 3-hole starter mount type. It is listed with a 3.1kW power rating, 127mm mount centres A, 90mm mount centres B, 90mm mount centres C and a 89mm flange diameter, so it is the kind of unit that needs to be matched carefully to the original starter arrangement.

This starter motor is specified for dry clutch applications and has a pinion diameter of 42.5mm, a pinion at rest measurement of 47mm and a 10mm mount hole diameter. The listed part number is VXS932 and the unit is described as a Valeo style starter, which makes the part number and physical dimensions the most important checks before ordering.

OEX lists this starter motor as part of its rotating electrical range and notes that its products are sourced from ISO certified factories. The warranty shown is 3 years for passenger use and 1 year for commercial use, so it is important to confirm the application carefully, especially where the vehicle or machine uses a Valeo-type starter with the same mounting and pinion details.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• 3-hole starter mount type
• New unit, not remanufactured
• 3.1kW power rating

Specifications

• Part No.: VXS932
• Brand: OEX
• Type: Starter Motor
• Voltage: 12V
• Number of teeth: 11
• Rotation: CW
• Power rating: 3.1kW
• Starter mount type: 3 hole

Fitment guidance

• Verified fitment groups include HYUNDAI, PEUGEOT, VOLVO CONSTRUCTION and VOLVO MARINE/PENTA applications.
• Sample applications listed include HYUNDAI GRANDEUR, HYUNDAI SANTA FE, PEUGEOT XDP4.90, VOLVO CONSTRUCTION EC130C, EC150C and EC160, plus VOLVO MARINE/PENTA AD31B, AQAD30A, AQAD31A, AQAD40A, AQAD41 and AQAD41A.
• Model years shown in the supplied applications include examples such as HYUNDAI GRANDEUR 2006 to 2010, PEUGEOT XDP4.90 1980, VOLVO CONSTRUCTION EC130C 1997 to 1998, EC150C 1997 to 1998 and EC160 1998 to 2002.
• The fitment list also includes other Volvo marine and construction references such as KAD32P, KAD42A, KAMD42A, MD21, MD30A, MD32, MD5C, TAMD30A, TAMD31, TAMD41, TD40, TMD30A, TMD31A and TMD40A, but each application still needs confirmation against the original starter details.

Application and Buying Notes

Before ordering, compare the part number VXS932 and the starter layout against the original unit on the vehicle or machine. The key matching points here are 12V, 11 teeth, clockwise rotation, 3-hole mount type, 89mm flange diameter and the listed 127mm, 90mm and 90mm mount centres, because those details are often what separates a correct replacement from one that almost fits.

The 42.5mm pinion diameter and 47mm pinion at rest measurement are also important. If the replacement starter has different pinion position or tooth engagement, it may not mesh correctly with the ring gear even if the mounting pattern appears similar. That is why matching the physical measurements is just as important as matching the vehicle or engine name.

This unit is listed as a dry clutch starter motor, so it should be checked against the original application type. It is also a new unit, not a remanufactured one, and OEX states the product comes with a 3-year passenger warranty or 1-year commercial warranty. Those warranty terms are useful, but they do not replace fitment checking on the actual application.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS932 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 11, Pinion Diameter 42.5mm, Rotation CW, Voltage 12, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 1 ROTATING ELECTRICAL, Part No. VXS932, Brand OEX, Description OEX Starter Motor 12V 11Th CW Valeo Style, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 10, Pinion at Rest 47mm, Power Rating 3.1kW.

OEX Starter Motor 12V 11Th CW Valeo Style. Part number VXS932 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS932, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility by checking the original starter part number, the 12V system, 11-tooth CW configuration, 3-hole mount pattern and all listed dimensions before purchase. Vehicle and engine references should be matched against the actual application details, not the model name alone.

FAQ

What is the part number for this starter motor?

The listed part number is VXS932.

Is this a new starter motor or a remanufactured unit?

It is listed as new.

What voltage does this starter motor use?

It is a 12V starter motor.

What rotation does the unit have?

The rotation is clockwise, shown as CW.

What clutch type is listed for this starter motor?

It is listed for dry clutch applications.

Which applications are shown in the supplied fitment details?

The supplied fitment details include Hyundai, Peugeot, Volvo Construction and Volvo Marine/Penta applications, with sample references such as Hyundai Grandeur, Hyundai Santa Fe, Peugeot XDP4.90, Volvo Construction EC130C, EC150C and EC160, and Volvo Marine/Penta AD31B, AQAD30A, AQAD31A, AQAD40A, AQAD41 and AQAD41A.
