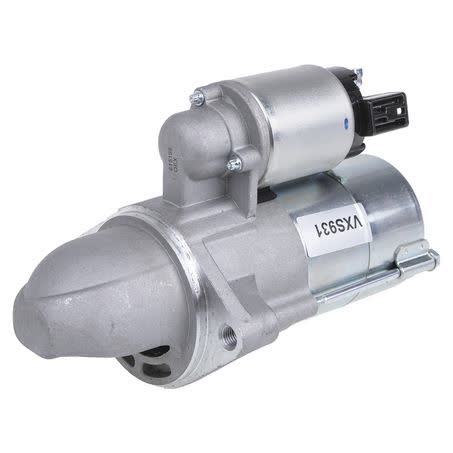

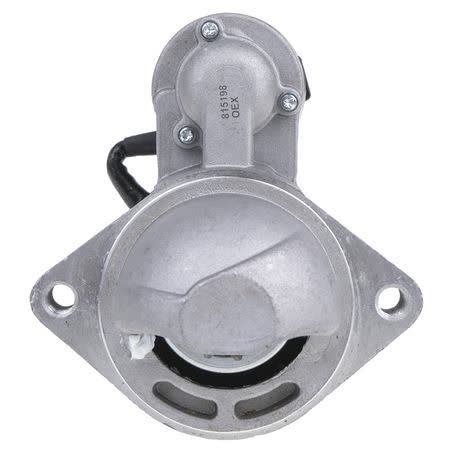

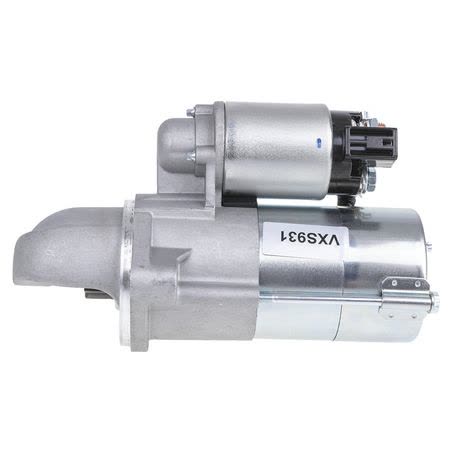

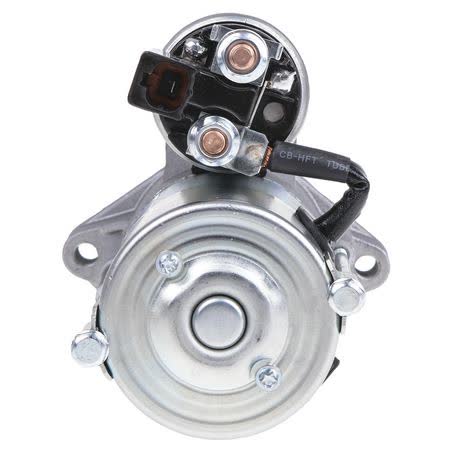

OEX Starter Motor 12V 11 Tooth CW Valeo Style VXS931

The OEX Starter Motor VXS931 is a new 12V unit with 11 teeth, clockwise rotation, and a 2kW power rating. It is described as Valeo style and suits Valeo units, so matching the part number and unit type is the best starting point before purchase.

Key dimensions for identification include a 105mm mount centres A measurement, 75mm flange diameter, 63mm nose cone length, and 222mm overall length. The starter uses a 2 hole mount with M10 mounting holes, which helps confirm whether it matches the physical setup in the vehicle.

The pinion diameter is 34.6mm and the pinion at rest measurement is 25mm. As with any starter motor, those measurements matter because the correct unit needs to align with the existing mounting and engagement arrangement, not just the electrical rating.

Key Features

• OEX starter motor, part number VXS931
• 12V, 11 tooth, clockwise rotation
• 2kW power rating
• New unit
• Suits Valeo units
• 2 hole starter mount

Specifications

• Type: Starter motor
• Brand: OEX
• Part No.: VXS931
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 2kW
• Starter mount type: 2 hole

Confirmed fitment applications

• Hyundai Grandeur
• Hyundai iX35
• Hyundai Santa Fe
• Hyundai Sonata
• Kia Carnival / Grand Carnival
• Kia Sorento
• Kia Sportage
• Kia

Application and Buying Notes

Before ordering, check the part number VXS931, the 12V electrical requirement, and the 11 tooth clockwise configuration against the unit already fitted to the vehicle. The mount centres A measurement is 105mm, the mount hole diameter is M10, and the starter uses a 2 hole mount, so the physical layout needs to match as well as the electrical specification.

This starter is listed as Valeo style and suits Valeo units, which makes the original starter type an important reference point. If the existing starter has different rotation, tooth count, flange size, or overall length, it may not be the correct replacement even if the vehicle family appears similar.

The main dimensional checks are 75mm flange diameter, 63mm nose cone length, 222mm overall length, 34.6mm pinion diameter, and 25mm pinion at rest. These measurements are useful when comparing against the old unit because starter motors can differ in mounting and pinion arrangement across build dates and applications.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. That makes the intended duty cycle worth considering before purchase, along with the vehicle’s electrical and mounting details. A starter that matches the vehicle in name only is not enough if the physical and application details do not line up.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS931 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Nose Cone Length 63mm, Overall Length 222mm, Pinion Diameter 34.6mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. VXS931, Brand OEX, Description OEX Starter Motor 12V 11Th CW Valeo Style, Flange Diameter 75mm, Mount Hole Diameter M10, Number of Teeth 11, Pinion at Rest 25mm, Power Rating 2kW.

OEX Starter Motor 12V 11Th CW Valeo Style. Part number VXS931 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS931, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2006, HYUNDAI GRANDEUR 2007, HYUNDAI GRANDEUR 2008, KIA CARNIVAL, KIA CARNIVAL / GRAND CARNIVAL. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by checking the VXS931 part number, 12V specification, 11 tooth CW configuration, and the listed dimensions against the vehicle’s existing starter and application details before ordering.

FAQ

What is the part number for this starter motor?

The part number is VXS931. For this listing, part number VXS931 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2006, HYUNDAI GRANDEUR 2007. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number VXS931 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2006, HYUNDAI GRANDEUR 2007. These details should still be checked against the original unit before ordering.

What voltage does this starter use?

It is a 12V starter motor. For this listing, part number VXS931 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2006, HYUNDAI GRANDEUR 2007. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 11 teeth. For this listing, part number VXS931 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2006, HYUNDAI GRANDEUR 2007. These details should still be checked against the original unit before ordering.

What rotation does it have?

It is clockwise rotation, shown as CW. For this listing, part number VXS931 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2006, HYUNDAI GRANDEUR 2007. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number VXS931 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2006, HYUNDAI GRANDEUR 2007. These details should still be checked against the original unit before ordering.
