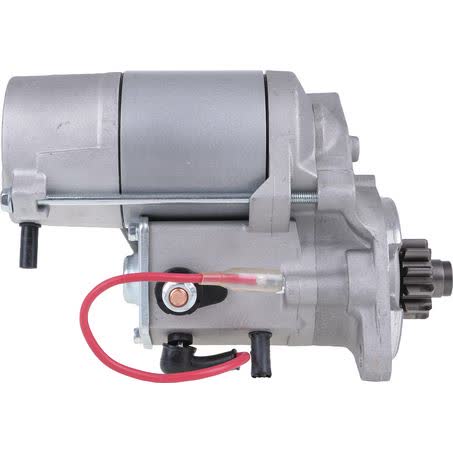

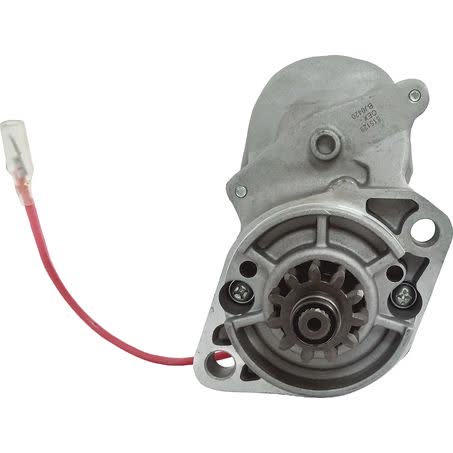

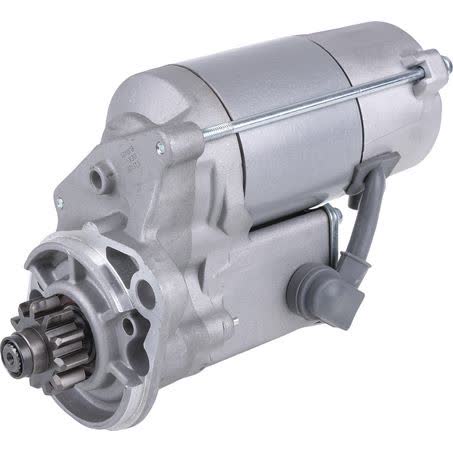

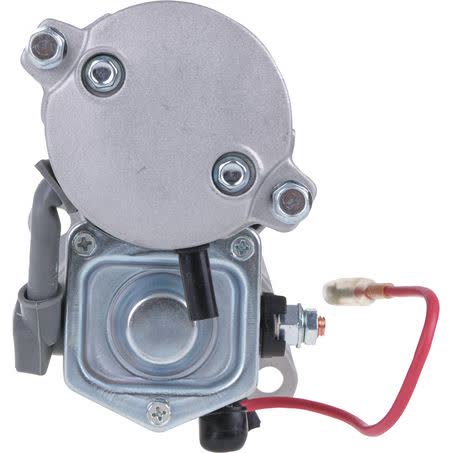

OEX Starter Motor 12V 11 Tooth CW Denso Style DXS620

This OEX starter motor is a 12V unit with 11 teeth, clockwise rotation, and a Denso style layout. It is a new starter motor with part number DXS620, listed with a 2.0kW power rating, 2 hole starter mount type, and dry clutch configuration.

Key physical details include a 105mm mount centre measurement, 82.5mm flange diameter, 11mm mount hole diameter, 40mm pinion diameter, 25mm pinion at rest, and 218mm overall length. The unit weighs 4.64kg and is supplied as each.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. This starter motor is backed by a one year warranty, which gives a clear reference point when matching the part to an existing application.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• Denso style unit
• 2.0kW power rating
• New starter motor

Specifications

• Part number: DXS620
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Number of teeth: 11
• Rotation: CW
• Power rating: 2.0kW
• Starter mount type: 2 hole

Fitment guidance

• No verified vehicle fitment list is supplied here.
• The product is identified as suitable for Denso applications, but that alone is not enough to confirm installation.
• Check the existing starter against the 12V specification, 11 tooth count, clockwise rotation, 2 hole mount, 105mm mount centres, and 82.5mm flange diameter before ordering.
• Match the part number DXS620 where possible, especially if replacing an existing OEX or Denso style unit.

Application and Buying Notes

When comparing this starter motor to the old unit, the most useful checks are the 12V rating, 11 tooth pinion, clockwise rotation, and the 2 hole mounting pattern. The listed 105mm mount centres, 82.5mm flange diameter, 11mm mount hole diameter, and 218mm overall length are all practical measurements that should be checked against the removed part or the vehicle application.

The 2.0kW power rating is another important detail to confirm, because starter motors can look similar while differing in output and mounting dimensions. If the existing starter is marked Denso style or the original unit is a Denso type, that supports the comparison, but the physical dimensions and part number still need to line up.

This unit is new, dry clutch type, and supplied with a one year warranty. Those details matter when assessing replacement quality and service expectations, but they do not replace the need to confirm fitment on the vehicle. The safest approach is to verify the old starter’s label, tooth count, rotation, mount pattern, and any Denso references before purchase.

If the vehicle has been modified, or if a previous repair used a non-standard starter, rely on the measurements and part number rather than general appearance. The 25mm pinion at rest and 40mm pinion diameter are useful comparison points where access allows a direct check. Careful matching helps avoid downtime and reduces the chance of receiving a starter that is close in appearance but wrong in detail.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS620 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 105mm, Number of Teeth 11, Pinion at Rest 25mm, Power Rating 2.0kW, Suits Unit Make Denso, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. DXS620, Brand OEX, Description OEX Starter Motor 12V 11Th CW Denso Style, Flange Diameter 82.5mm, Mount Hole Diameter 11, Overall Length 218mm, Pinion Diameter 40mm, Rotation CW.

OEX Starter Motor 12V 11Th CW Denso Style. Part number DXS620 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS620, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include KUBOTA SERIES-L, KUBOTA SERIES-L 1986, KUBOTA SERIES-M, KUBOTA SERIES-M 1986. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking the part number DXS620, the 12V electrical specification, the 11 tooth count, clockwise rotation, and the recorded mount and dimension details against the vehicle or removed starter before ordering.

FAQ

What is the part number for this starter motor?

The part number is DXS620. For this listing, part number DXS620 is the main reference point. Listed voltage is 12. Published fitment references include KUBOTA SERIES-L, KUBOTA SERIES-L 1986, KUBOTA SERIES-M. These details should still be checked against the original unit before ordering.

Is this starter motor 12 volt?

Yes. The listed voltage is 12V. For this listing, part number DXS620 is the main reference point. Listed voltage is 12. Published fitment references include KUBOTA SERIES-L, KUBOTA SERIES-L 1986, KUBOTA SERIES-M. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 11 teeth. For this listing, part number DXS620 is the main reference point. Listed voltage is 12. Published fitment references include KUBOTA SERIES-L, KUBOTA SERIES-L 1986, KUBOTA SERIES-M. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The rotation is clockwise, shown as CW. For this listing, part number DXS620 is the main reference point. Listed voltage is 12. Published fitment references include KUBOTA SERIES-L, KUBOTA SERIES-L 1986, KUBOTA SERIES-M. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new, not remanufactured. For this listing, part number DXS620 is the main reference point. Listed voltage is 12. Published fitment references include KUBOTA SERIES-L, KUBOTA SERIES-L 1986, KUBOTA SERIES-M. These details should still be checked against the original unit before ordering.

Does this listing confirm vehicle fitment?

No specific vehicle fitment list is supplied here. It is identified as a Denso style starter motor, so fitment should be confirmed by part number, mounting details, and the existing unit’s specifications. For this listing, part number DXS620 is the main reference point. Listed voltage is 12. Published fitment references include KUBOTA SERIES-L, KUBOTA SERIES-L 1986, KUBOTA SERIES-M. These details should still be checked against the original unit before ordering.
