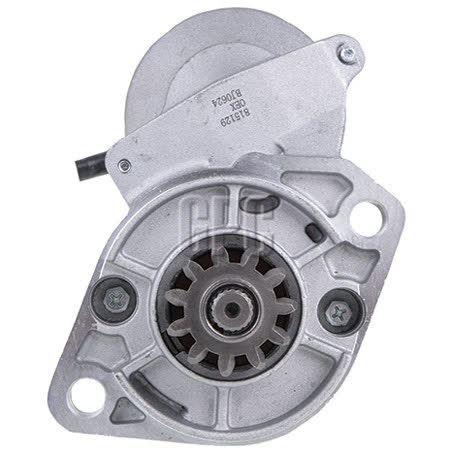

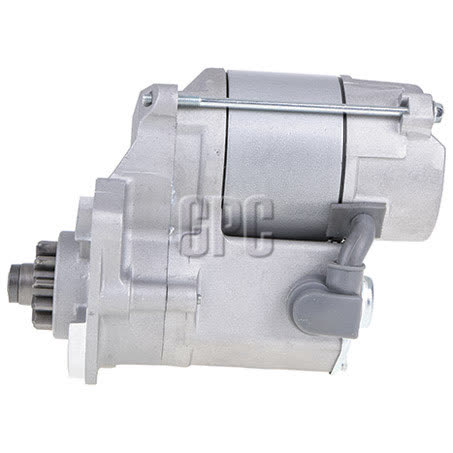

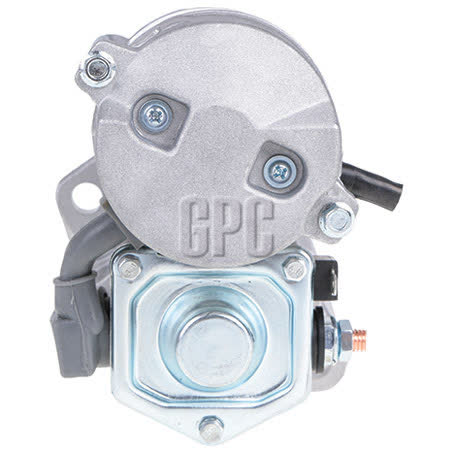

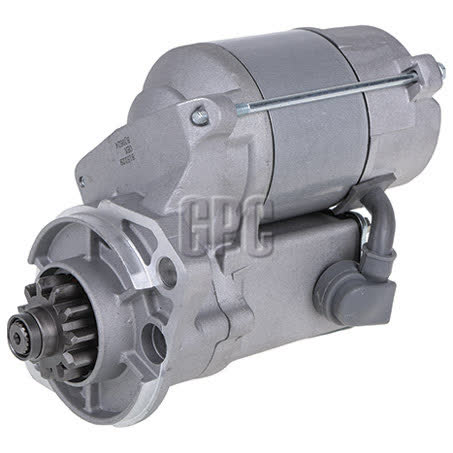

OEX Starter Motor 12V 11 Tooth CW Denso Style DXS622

The OEX Starter Motor DXS622 is a new 12V starter motor built in a Denso style layout with clockwise rotation and 11 teeth. It is listed with a 1.4kW power rating, a 2 hole starter mount type, and a 40mm pinion diameter, so matching the physical layout and electrical requirements is important before ordering.

This unit is supplied as a new rotating electrical part, not remanufactured, and is intended for dry clutch applications. Key dimensions provided include 105mm mount centres, 82mm flange diameter, 11mm mount hole diameter, and 25mm pinion at rest, all of which are useful when comparing the starter against the unit already fitted.

OEX lists this starter as suited to Denso applications, and the part number is DXS622. The listed warranty is 3 years for passenger use and 1 year for commercial use, which gives a clear guide to how the unit is supported depending on the vehicle duty cycle.

For buyers working on equipment or machinery rather than standard road vehicles, checking the tooth count, rotation, mount style, and dimensions matters just as much as voltage. A 12V, 11 tooth, clockwise starter such as this one must match the application closely for proper engagement and installation.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• New unit
• Denso style
• 2 hole starter mount

Specifications

• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 1.4kW
• Suits unit make: Denso
• Starter mount type: 2 hole

Known application groups provided

• Carrier Extra
• Hitachi ZW40
• Hitachi ZW50
• Kubota KX161-3
• Kubota KX161-3S
• Kubota M59
• Kubota Series-L
• Kubota Series-M

Application and Buying Notes

Before ordering, compare the starter’s key identifiers against the unit you are replacing: 12V voltage, clockwise rotation, 11 teeth, 1.4kW power rating, and Denso style fitment. The mounting details also need to line up, including the 2 hole mount type, 105mm mount centres, 82mm flange diameter, and 11mm mount hole diameter.

The pinion details are especially important on starters, because the 40mm pinion diameter and 25mm pinion at rest must suit the application. If the old starter has a different tooth count, different rotation direction, or a different mounting pattern, it should not be assumed to interchange.

This starter is listed for dry clutch use and is supplied new. That makes it suitable where the application calls for a dry setup and where a new rotating electrical unit is preferred over a remanufactured option. The listed warranty is 3 years for passenger use and 1 year for commercial use, so the vehicle’s duty cycle should be considered when comparing parts.

The fitment groups provided include Carrier Extra, Hitachi ZW40 and ZW50, several Kubota models, and TYM T430/431 and T450/451 applications. Even where a model appears in the fitment list, the safest approach is to confirm the part number DXS622 and match the physical specifications against the existing starter before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS622 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 11, Pinion Diameter 40mm, Rotation CW, Voltage 12, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXS622, Brand OEX, Description OEX Starter Motor 12V 11Th CW Denso Style, Flange Diameter 82mm, Mount Hole Diameter 11, Pinion at Rest 25mm, Power Rating 1.4kW, Suits Unit Make Denso, Item Type Starter Motor.

OEX Starter Motor 12V 11Th CW Denso Style. Part number DXS622 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS622, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CARRIER EXTRA, CARRIER EXTRA 1996, HITACHI ZW40, HITACHI ZW40 2009, HITACHI ZW40 2010, HITACHI ZW40 2011. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by matching part number DXS622, 12V voltage, 11 tooth count, clockwise rotation, Denso style mounting, and the listed measurements against the existing starter and application details before purchase.

FAQ

What type of starter motor is this?

It is an OEX starter motor, listed as new, 12V, clockwise rotation, 11 tooth, Denso style, with a 1.4kW power rating.

What is the part number?

The listed part number is DXS622.

Is this a new or remanufactured unit?

It is listed as new, not remanufactured.

What mounting details are provided?

The starter is listed with a 2 hole starter mount type, 105mm mount centres, 82mm flange diameter, and 11mm mount hole diameter.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.

Which applications are mentioned?

The provided fitment groups include Carrier Extra, Hitachi ZW40 and ZW50, Kubota KX161-3, KX161-3S, M59, Series-L, Series-M, Series-ME, T193, V1903, V2403-M, and TYM T430/431 and T450/451.
