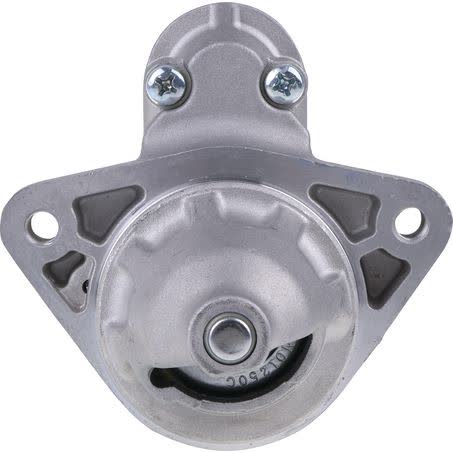

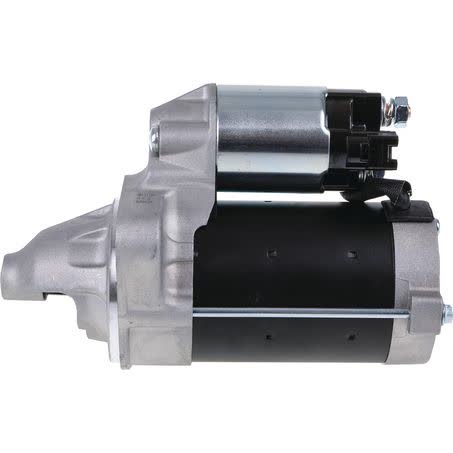

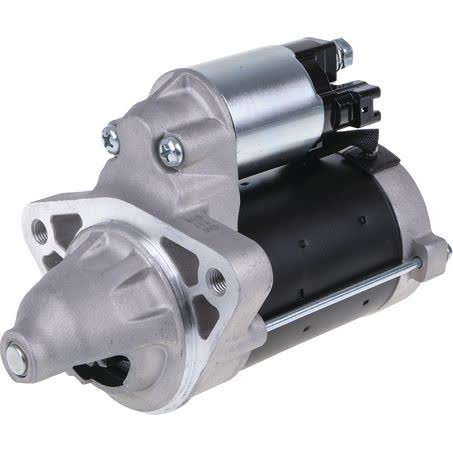

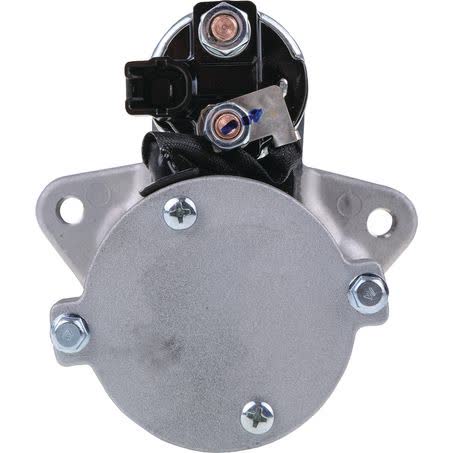

OEX Starter Motor 12V 9 Tooth CW Denso Style DXS4040

The OEX Starter Motor DXS4040 is a new 12V starter motor with a 9 tooth pinion, clockwise rotation, and a 1.6kW power rating. It is built in a Denso style configuration and suits Denso units, so checking the part number and starter layout is the safest way to confirm you are comparing the right unit.

This starter uses a 2 hole mount type with 104mm mount centres, a 74mm flange diameter, and M10 mount hole diameter. Those mounting details matter when you are matching a replacement, especially where the original starter needs to line up correctly with the bellhousing and engine mounting position.

Key dimensions include a 29mm pinion diameter and 20mm pinion at rest, with a dry clutch design. The unit is sold each and is covered by a 3 year passenger / 1 year commercial warranty, which gives a clear reference point for buyers needing a replacement starter for compatible Denso applications.

Key Features

• New starter motor
• 12V electrical system
• 9 tooth pinion
• Clockwise rotation
• Denso style unit
• Suits Denso applications

Specifications

• Part No.: DXS4040
• Brand: OEX
• Product type: Starter Motor
• Voltage: 12V
• Power rating: 1.6kW
• Number of teeth: 9
• Rotation: CW
• Mount centres A: 104mm

Fitment guidance

• Commonly listed against selected Hino and Toyota applications
• Fitment data includes Hino Dutro and Hino Ranger
• Fitment data includes Toyota Dyna 200
• Fitment data includes Toyota Hiace and Hiace / Commuter
• Fitment data includes Toyota Hiace SBV
• Fitment data includes Toyota Hilux
• Fitment data includes Toyota Land Cruiser Prado
• Fitment data includes Toyota Regius Ace

Application and Buying Notes

When comparing this starter to your original, the part number DXS4040 is the strongest reference, followed by the 12V specification, 9 tooth pinion, and clockwise rotation. A Denso style starter can still vary by mounting pattern, so the 2 hole mount type, 104mm mount centres, and M10 mount hole size should all be checked against the removed unit before purchase.

The 1.6kW power rating is a useful comparison point when matching like for like, but it should not be used on its own to identify fitment. The pinion diameter of 29mm and pinion at rest measurement of 20mm are practical checks for clearance and engagement, particularly where the starter sits close to surrounding components.

If you are buying for a vehicle application, use the fitment list as a guide only and compare the engine, starter layout, and the removed unit carefully. The presence of Hino and Toyota applications does not remove the need to confirm the exact match by part number and physical specifications, particularly on vehicles with multiple starter variations.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4040 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 104mm, Number of Teeth 9, Pinion Diameter 29mm, Rotation CW, Voltage 12, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXS4040, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 74mm, Mount Hole Diameter M10, Pinion at Rest 20mm, Power Rating 1.6kW, Suits Unit Make Denso, Item Type Starter Motor.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS4040 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4040, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HINO DUTRO, HINO DUTRO 2000, HINO DUTRO 2003, HINO RANGER, TOYOTA DYNA 200, TOYOTA DYNA 200 1995. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by checking the part number DXS4040, the 12V rating, 9 tooth pinion, clockwise rotation, 2 hole mount type, and the 104mm mount centres against your existing starter and vehicle application details before ordering.

FAQ

What is the part number for this starter motor?

The part number is DXS4040. For this listing, part number DXS4040 is the main reference point. Listed voltage is 12. Published fitment references include HINO DUTRO, HINO DUTRO 2000, HINO DUTRO 2003. These details should still be checked against the original unit before ordering.

Is this starter motor new or reconditioned?

It is listed as new, not remanufactured. For this listing, part number DXS4040 is the main reference point. Listed voltage is 12. Published fitment references include HINO DUTRO, HINO DUTRO 2000, HINO DUTRO 2003. These details should still be checked against the original unit before ordering.

What voltage does this starter use?

It is a 12V starter motor. For this listing, part number DXS4040 is the main reference point. Listed voltage is 12. Published fitment references include HINO DUTRO, HINO DUTRO 2000, HINO DUTRO 2003. These details should still be checked against the original unit before ordering.

What are the key mounting details?

It has a 2 hole mount type, 104mm mount centres, a 74mm flange diameter, and M10 mount hole diameter. For this listing, part number DXS4040 is the main reference point. Listed voltage is 12. Published fitment references include HINO DUTRO, HINO DUTRO 2000, HINO DUTRO 2003. These details should still be checked against the original unit before ordering.

Which way does it rotate?

It rotates clockwise (CW). For this listing, part number DXS4040 is the main reference point. Listed voltage is 12. Published fitment references include HINO DUTRO, HINO DUTRO 2000, HINO DUTRO 2003. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS4040 is the main reference point. Listed voltage is 12. Published fitment references include HINO DUTRO, HINO DUTRO 2000, HINO DUTRO 2003. These details should still be checked against the original unit before ordering.
