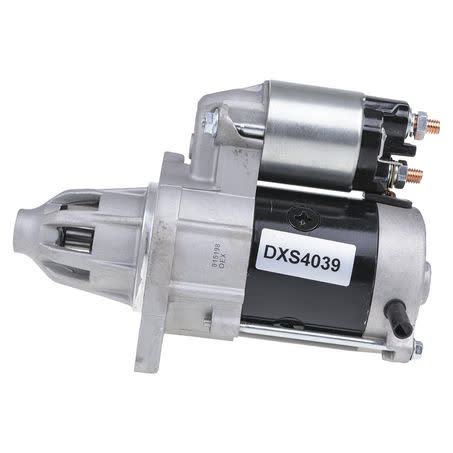

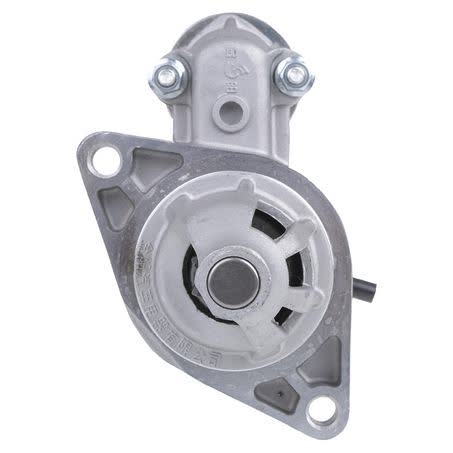

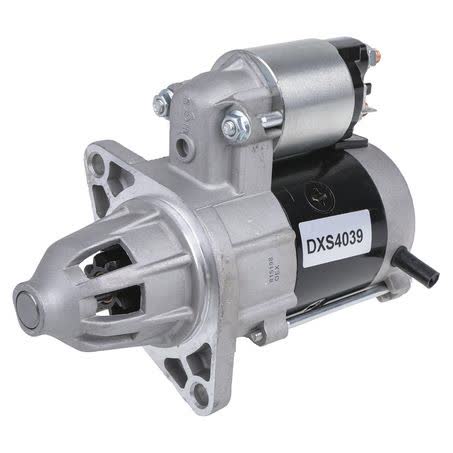

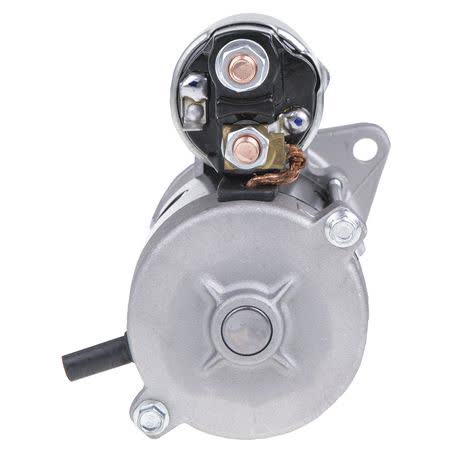

OEX Starter Motor 12V 8 Tooth CCW Denso Style DXS4039

The OEX starter motor, part number DXS4039, is a 12V unit in Denso style with 8 teeth, counter-clockwise rotation and a .8kW power rating. It is listed as a new starter motor for dry clutch applications and suits Denso units.

Key physical details include a 2 hole starter mount, 111mm mount centres, 65mm flange diameter, 67mm nose cone length and 205mm overall length. The pinion diameter is 28.5mm, the pinion at rest is 28mm, and the mount hole diameter is 9mm.

At 3.12kg, this is a compact rotating electrical component that needs to match the vehicle’s original starter configuration closely. The OEX brand is sourced from market leading original equipment manufacturers and aftermarket suppliers, with products sourced from ISO certified factories.

Key Features

• 12V starter motor
• Denso style design
• 8 tooth pinion
• Counter-clockwise rotation
• 2 hole starter mount
• New unit

Specifications

• Brand: OEX
• Part No.: DXS4039
• Product type: Starter motor
• Voltage: 12V
• Power rating: .8kW
• Rotation: CCW
• Number of teeth: 8
• Suits unit make: Denso

Fitment guidance

• SUZUKI: CARRY, CARRY 1999, CARRY 2000, CARRY 2001, CARRY 2002, plus other listed applications

Application and Buying Notes

Before ordering, compare the part number DXS4039, the Denso style design, the 12V rating and the 8 tooth CCW configuration against the unit already fitted to the vehicle. Starter motors can look similar while still differing in rotation, tooth count, mount type or nose cone length, so those checks matter as much as the brand name.

The listed mounting dimensions are important when confirming physical compatibility. This unit has 2 hole mounting, 111mm mount centres, a 65mm flange diameter and 9mm mount holes, with an overall length of 205mm and a 67mm nose cone length. If any of those measurements do not match the removed starter, it should be rechecked before purchase.

The pinion details are also worth confirming. This starter has an 8 tooth pinion, a 28.5mm pinion diameter and 28mm pinion at rest. Those figures help distinguish it from other starters in the same general family, especially where the application uses a Denso-style unit but not the exact same starter specification.

This starter is listed for dry clutch applications and as a new unit, not remanufactured. The 3yr Passenger 1yr Commercial warranty is stated for the product, but the correct application still depends on matching the vehicle’s original starter specification, mounting pattern and electrical setup. If the existing unit has a label, part number or visible casting reference, use that as an extra check alongside the measurements.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4039 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 111mm, Nose Cone Length 67mm, Overall Length 205mm, Pinion Diameter 28.5mm, Rotation CCW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.12kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS4039, Brand OEX, Description OEX Starter Motor 12V 8Th CCW Denso Style, Flange Diameter 65mm, Mount Hole Diameter 9, Number of Teeth 8, Pinion at Rest 28mm, Power Rating .8kW.

OEX Starter Motor 12V 8Th CCW Denso Style. Part number DXS4039 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4039, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include SUZUKI CARRY, SUZUKI CARRY 1999, SUZUKI CARRY 2000, SUZUKI CARRY 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number DXS4039, Denso style, 12V, CCW rotation, 8 tooth pinion, 2 hole mount and the listed dimensions against the vehicle’s original starter before ordering.

FAQ

What is the part number for this starter motor?

The part number is DXS4039. For this listing, part number DXS4039 is the main reference point. Listed voltage is 12. Published fitment references include SUZUKI CARRY, SUZUKI CARRY 1999, SUZUKI CARRY 2000. These details should still be checked against the original unit before ordering.

What voltage and rotation does it use?

It is a 12V starter motor with CCW rotation. For this listing, part number DXS4039 is the main reference point. Listed voltage is 12. Published fitment references include SUZUKI CARRY, SUZUKI CARRY 1999, SUZUKI CARRY 2000. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 8 teeth. For this listing, part number DXS4039 is the main reference point. Listed voltage is 12. Published fitment references include SUZUKI CARRY, SUZUKI CARRY 1999, SUZUKI CARRY 2000. These details should still be checked against the original unit before ordering.

Is this starter new or remanufactured?

It is listed as new. For this listing, part number DXS4039 is the main reference point. Listed voltage is 12. Published fitment references include SUZUKI CARRY, SUZUKI CARRY 1999, SUZUKI CARRY 2000. These details should still be checked against the original unit before ordering.

What type of mounting does it use?

It uses a 2 hole starter mount with 111mm mount centres and 9mm mount holes. For this listing, part number DXS4039 is the main reference point. Listed voltage is 12. Published fitment references include SUZUKI CARRY, SUZUKI CARRY 1999, SUZUKI CARRY 2000. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3yr Passenger 1yr Commercial. For this listing, part number DXS4039 is the main reference point. Listed voltage is 12. Published fitment references include SUZUKI CARRY, SUZUKI CARRY 1999, SUZUKI CARRY 2000. These details should still be checked against the original unit before ordering.
