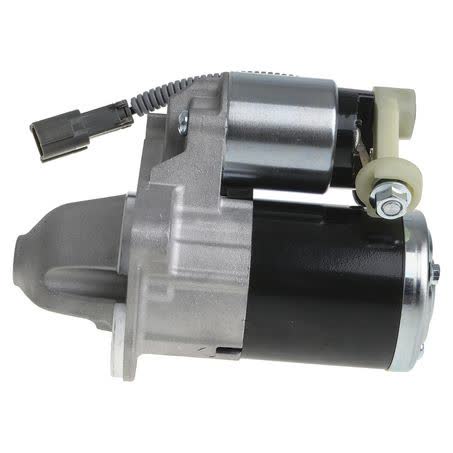

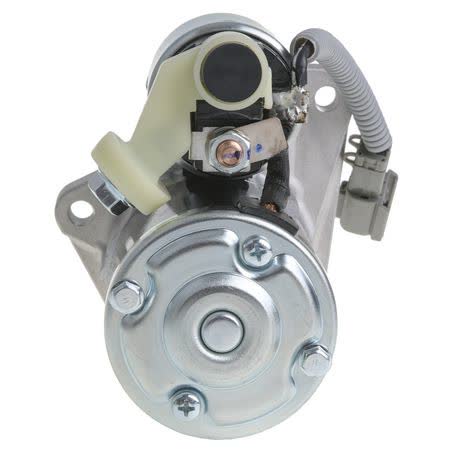

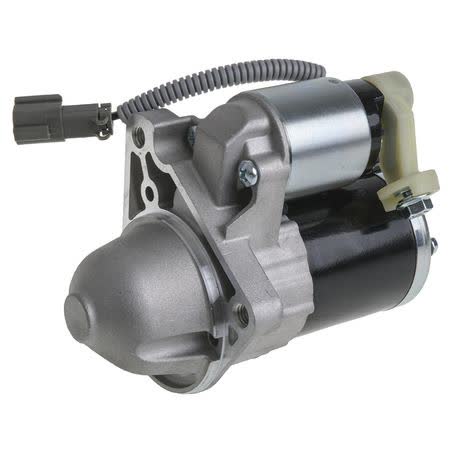

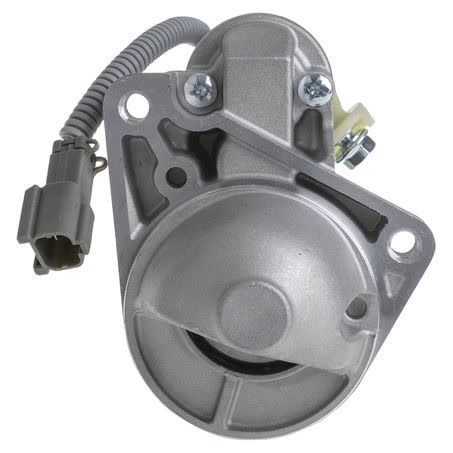

OEX Starter Motor 12V 10TH CW Mitsubishi Style MXS2071

The OEX Starter Motor MXS2071 is a new 12V rotating electrical unit with a clockwise (CW) rotation, 10 teeth, and a Mitsubishi-style application. It is listed with a 1.4kW power rating, a 2 hole starter mount type, and a suitability note for Mitsubishi units.

Key physical details include a 97mm mount centres A measurement, 82.5mm flange diameter, 50.8mm nose cone length, 183mm overall length, 34.5mm pinion diameter, and M10x1.5 mount hole diameter. The pinion at rest is 19mm, which is a useful check when comparing against the vehicle’s original starter motor.

This starter is supplied new, sold as each, and carries OEX warranty coverage of 3 years for passenger use and 1 year for commercial use. The OEM number listed is M0T36671, which is a practical reference point when confirming the correct replacement against an existing part.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 10-tooth pinion
• New unit
• 2 hole starter mount
• 1.4kW power rating

Specifications

• Part No.: MXS2071
• OEM Number: M0T36671
• Voltage: 12V
• Power Rating: 1.4kW
• Rotation: CW
• Number of Teeth: 10
• Starter Mount Type: 2 hole
• Mount Centres A: 97mm

Fitment guidance

• NISSAN: NV350, NV350 / CARAVAN, NV350 / CARAVAN 2012, NV350 2012

Application and Buying Notes

This starter motor is identified as a Mitsubishi-style unit with part number MXS2071 and OEM number M0T36671, so the safest way to confirm suitability is to compare those identifiers with the original starter already fitted to the vehicle. The 12V rating, 10-tooth pinion, and clockwise rotation all need to match the replacement application before ordering.

Physical dimensions matter on starter motors, and this unit has several that are worth checking closely: 97mm mount centres A, 82.5mm flange diameter, 50.8mm nose cone length, 183mm overall length, and M10x1.5 mount holes. If any of those dimensions differ from the original starter, fitment may not be correct even if the vehicle is otherwise similar.

The starter is listed for Mitsubishi units, but no vehicle model list is supplied here, so the part number and measurements should carry the decision. The 2 hole starter mount type, 34.5mm pinion diameter, and 19mm pinion at rest are all useful comparison points when matching against a removed starter or workshop record.

Because this is a new starter motor, it is intended as a replacement electrical component rather than a remanufactured unit. The listed 1.4kW power rating should be considered alongside the vehicle’s original specification, especially where an engine variant, transmission type, or earlier replacement part may have been fitted in service.

Warranty coverage is stated as 3 years for passenger use and 1 year for commercial use, which gives a useful reference when choosing the part for the right application type. As with any starter purchase, the correct approach is to verify the part number, OEM number, tooth count, rotation direction, and mounting measurements before installation.

If the original starter is still available, compare the mounting face, flange diameter, and pinion location against this MXS2071 unit before finalising the order. That simple check can prevent unnecessary downtime and helps ensure the replacement matches the electrical and mechanical layout already in the vehicle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2071 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 97mm, Nose Cone Length 50.8mm, Overall Length 183mm, Pinion Diameter 34.5mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include OEM Number M0T36671, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2071, Brand OEX, Description OEX Starter Motor 12V 10Th CW Mitsubishi Style, Flange Diameter 82.5mm, Mount Hole Diameter M10x1.5, Number of Teeth 11, Pinion at Rest 19mm, Power Rating 1.4kW.

OEX Starter Motor 12V 10Th CW Mitsubishi Style. Part number MXS2071 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2071, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN NV350, NISSAN NV350 / CARAVAN, NISSAN NV350 / CARAVAN 2012, NISSAN NV350 2012. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching the part number MXS2071, OEM number M0T36671, 12V electrical specification, 10-tooth CW rotation, and all mounting dimensions against the original starter motor and vehicle application details before purchase.

FAQ

What is the part number for this starter motor?

The part number is MXS2071. The OEM number listed alongside it is M0T36671.

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured.

What voltage and rotation does it use?

This starter motor is 12V with clockwise (CW) rotation.

How many teeth does the pinion have?

The pinion is listed with 10 teeth.

What are the key mounting measurements?

The listed mounting details include 97mm mount centres A, 82.5mm flange diameter, 50.8mm nose cone length, 183mm overall length, and M10x1.5 mount hole diameter.

What warranty is listed for this starter motor?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
