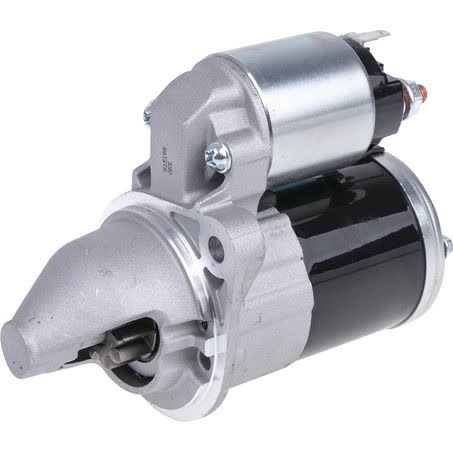

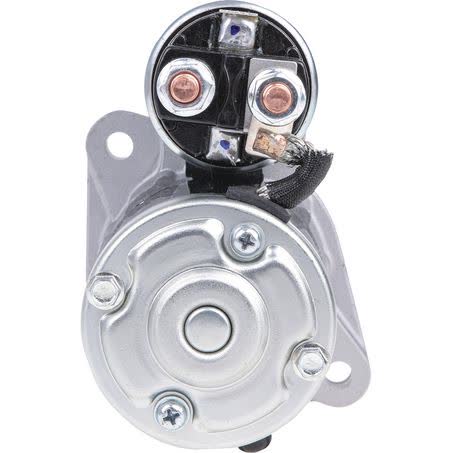

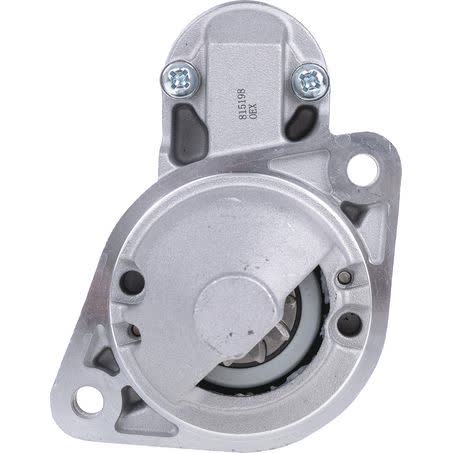

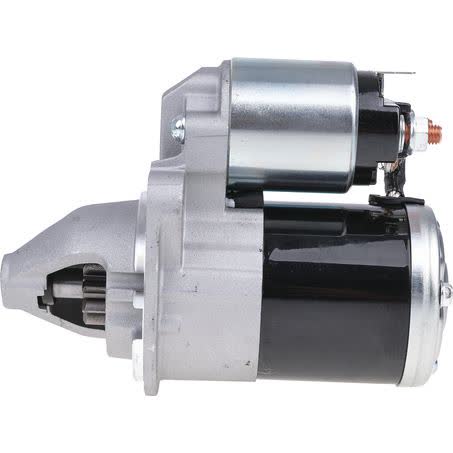

OEX Starter Motor 12V 10 Tooth CW Mitsubishi Style MXS2076

The OEX Starter Motor MXS2076 is a new 12V unit with 10 teeth, clockwise rotation, and a 1.1kW power rating. It is listed as a Mitsubishi style starter motor and suits Mitsubishi applications, with fitment data also showing Mitsubishi Colt and Smart Forfour coverage in the supplied application listing.

This starter motor uses a 2 hole starter mount type, 104mm mount centres, a 75mm flange diameter, and a 9mm mount hole diameter. Overall length is 174mm, the pinion diameter is 28mm, and pinion at rest is 25.5mm, so the physical dimensions should be checked against the existing unit before purchase.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with supply from ISO certified factories. The unit is backed by a 3 year passenger / 1 year commercial warranty, which is relevant when the vehicle application is matched correctly and the installation is carried out to the right specification.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• 1.1kW power rating
• New unit, not remanufactured
• 2 hole starter mount type

Specifications

• Brand: OEX
• Product type: Starter motor
• Part number: MXS2076
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 1.1kW
• Mount centres A: 104mm

Known application guidance

• Mitsubishi
• Mitsubishi Colt
• Smart
• Smart Forfour
• Sample applications supplied include Mitsubishi Colt 2006, 2007, 2008, 2009, 2010, 2011 and 2012
• Sample applications supplied include Smart Forfour 2004, 2005 and 2006

Application and Buying Notes

Before ordering, compare the part number MXS2076, the 12V rating, the 10 tooth pinion count, and clockwise rotation with the starter removed from the vehicle. The mount centres are 104mm and the starter uses a 2 hole mount, so those dimensions need to line up with the existing unit rather than relying on the vehicle badge alone.

The listed fitment points to Mitsubishi, Mitsubishi Colt, Smart, and Smart Forfour applications, but the matching should still be checked against the exact engine and starter arrangement on the vehicle. A Mitsubishi style starter can share broad application coverage while still differing in mounting pattern, pinion position, or length, so the 174mm overall length and 75mm flange diameter are useful checkpoints.

If you are comparing against a worn original starter, measure the flange diameter, mount hole diameter, and pinion at rest before confirming the order. The pinion diameter is 28mm and the mount hole diameter is 9mm, which are practical details for avoiding a mismatch when replacing an existing OEX or equivalent Mitsubishi style unit.

Warranty cover is listed as 3 years for passenger use and 1 year for commercial use. That is useful only when the correct part is installed for the correct application, so it is still worth confirming the vehicle’s model, build year, and starter configuration against the physical unit and the part number MXS2076 before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2076 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 104mm, Number of Teeth 10, Pinion at Rest 25.5mm, Power Rating 1.1kW, Suits Unit Make Mitsubishi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXS2076, Brand OEX, Description OEX Starter Motor 12V 10Th CW Mitsubishi Style, Flange Diameter 75mm, Mount Hole Diameter 9, Overall Length 174mm, Pinion Diameter 28mm, Rotation CW, Voltage 12.

OEX Starter Motor 12V 10Th CW Mitsubishi Style. Part number MXS2076 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2076, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MITSUBISHI COLT, MITSUBISHI COLT 2006, MITSUBISHI COLT 2007, MITSUBISHI COLT 2008, SMART FORFOUR, SMART FORFOUR 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm compatibility using part number MXS2076, the 12V / 10 tooth / CW specification, and the measured mounting dimensions before ordering. Vehicle model names in the fitment list are a guide only, and the existing starter should be checked for mount pattern, flange diameter, pinion position, and overall length.

FAQ

What is the part number for this starter motor?

The part number is MXS2076.

What are the main electrical specifications?

This starter motor is 12V with a 1.1kW power rating and clockwise rotation.

How many teeth does the pinion have?

The pinion has 10 teeth.

What mounting details are listed?

It uses a 2 hole starter mount type, 104mm mount centres, a 75mm flange diameter, and a 9mm mount hole diameter.

Which vehicles are shown in the fitment data?

The supplied fitment data lists Mitsubishi, Mitsubishi Colt, Smart, and Smart Forfour applications, with sample entries including Mitsubishi Colt 2006 to 2012 and Smart Forfour 2004 to 2006.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
