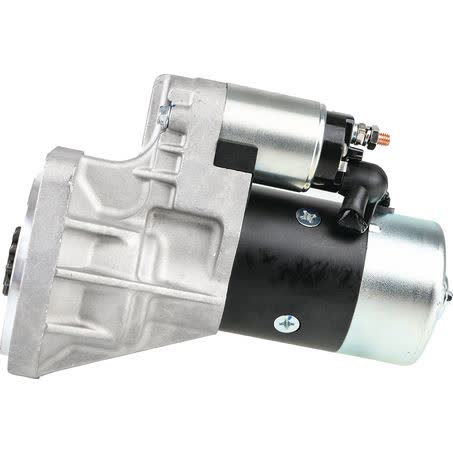

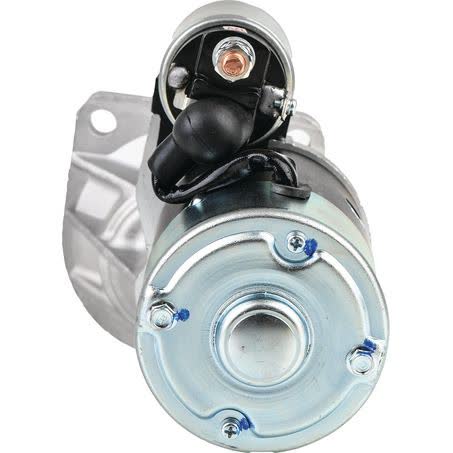

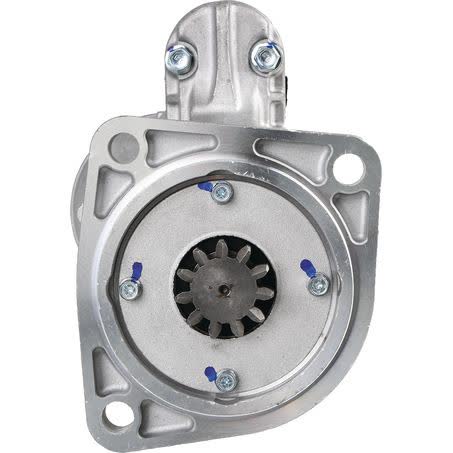

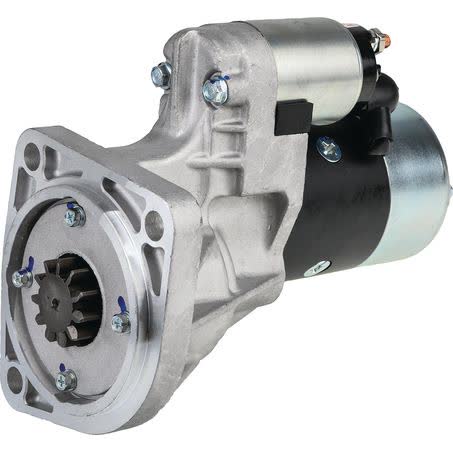

OEX Starter Motor 12V 11T CW Hitachi Style HXS9406

The OEX Starter Motor HXS9406 is a new 12V starter motor with 11 teeth and clockwise rotation. It is described as Hitachi style and suits a Hitachi unit make, which makes the part number and unit type the key checkpoints when matching it to the vehicle application.

This starter motor uses a 3 hole starter mount type, with mount centres of 140mm, 111mm and 92mm. Other listed dimensions include a 105mm flange diameter, 13mm mount hole diameter, a 40mm pinion diameter and 12mm pinion at rest, so these measurements should be compared carefully before ordering.

OEX lists this unit as part number HXS9406, OEM number S15-05, and it is sold as an each unit. The product is backed by a 3 year passenger warranty and 1 year commercial warranty, which is useful to note when selecting the correct replacement for a heavy-duty or passenger application.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• Hitachi style unit
• 3 hole starter mount
• New unit, not remanufactured

Specifications

• Brand: OEX
• Product type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Pinion diameter: 40mm
• Pinion at rest: 12mm
• Starter mount type: 3 hole

Fitment information

• UD Nissan Diesel Condor
• UD Nissan Diesel Condor 1992
• UD Nissan Diesel Condor 1996
• UD Nissan Diesel Condor 1997
• UD Nissan Diesel Condor 1998
• UD Nissan Diesel Condor 1999
• UD Nissan Diesel Condor 2002
• UD Nissan Diesel MK Series

Application and Buying Notes

Before buying, match the starter to the vehicle using the part number HXS9406, the OEM number S15-05, and the Hitachi style description. The listed fitment points to UD Nissan Diesel Condor and MK Series applications, but the safest check is still to compare the mount layout, the 3 hole pattern, and the three centre measurements of 140mm, 111mm and 92mm.

The electrical side of the replacement also matters. This unit is a 12V starter motor with clockwise rotation and 11 teeth, so it needs to suit the vehicle’s starter design as well as the physical fit. If the tooth count, rotation direction, or pinion dimensions do not match the removed unit, do not assume it will install correctly.

When comparing an existing starter, check the flange diameter at 105mm, mount hole diameter at 13mm, and pinion diameter at 40mm. These measurements are useful where the old part is available for comparison, especially on equipment that has been repaired or modified over time.

The warranty listed for this OEX starter motor is 3 years for passenger use and 1 year for commercial use. That does not replace correct identification, so the vehicle application, unit make, and dimensions should still be confirmed before purchase, particularly on commercial diesel applications where starter variants can be similar but not identical.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS9406 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 140mm, Mount Centres C 92mm, Number of Teeth 11, Pinion Diameter 40mm, Suits Unit Make Hitachi, Item Type Starter Motor, Starter Mount Type 3 Hole.

Additional published details for cross-checking include OEM Number S15-05, Product Group 1 ROTATING ELECTRICAL, Part No. HXS9406, Brand OEX, Description OEX Starter Motor 12V 11Th CW Hitachi Style, Flange Diameter 105mm, Mount Centres B 111mm, Mount Hole Diameter 13, Pinion at Rest 12mm, Rotation CW.

OEX Starter Motor 12V 11Th CW Hitachi Style. Part number HXS9406 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS9406, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1992, UD NISSAN DIESEL CONDOR 1996, UD NISSAN DIESEL CONDOR 1997. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by comparing part number HXS9406, OEM number S15-05, Hitachi style application details, and the measured mount and pinion dimensions against the original starter before ordering.

FAQ

What is the part number for this starter motor?

The listed part number is HXS9406. The OEM number shown is S15-05. For this listing, part number HXS9406 is the main reference point. Listed voltage is 12. Published fitment references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1992, UD NISSAN DIESEL CONDOR 1996. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number HXS9406 is the main reference point. Listed voltage is 12. Published fitment references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1992, UD NISSAN DIESEL CONDOR 1996. These details should still be checked against the original unit before ordering.

What rotation does it use?

The starter motor is listed as clockwise rotation, shown as CW. For this listing, part number HXS9406 is the main reference point. Listed voltage is 12. Published fitment references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1992, UD NISSAN DIESEL CONDOR 1996. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 11 teeth. For this listing, part number HXS9406 is the main reference point. Listed voltage is 12. Published fitment references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1992, UD NISSAN DIESEL CONDOR 1996. These details should still be checked against the original unit before ordering.

What vehicles are listed in the fitment data?

The fitment data lists UD Nissan Diesel Condor and UD Nissan Diesel MK Series applications, with multiple year references including 1992, 1995, 1996, 1997, 1998, 1999 and 2002. For this listing, part number HXS9406 is the main reference point. Listed voltage is 12. Published fitment references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1992, UD NISSAN DIESEL CONDOR 1996. These details should still be checked against the original unit before ordering.

What should I check before ordering?

Confirm the part number HXS9406, OEM number S15-05, Hitachi style application, 12V rating, clockwise rotation, 11 tooth count, and the listed mount dimensions of 140mm, 111mm and 92mm. For this listing, part number HXS9406 is the main reference point. Listed voltage is 12. Published fitment references include UD NISSAN DIESEL CONDOR, UD NISSAN DIESEL CONDOR 1992, UD NISSAN DIESEL CONDOR 1996. These details should still be checked against the original unit before ordering.
