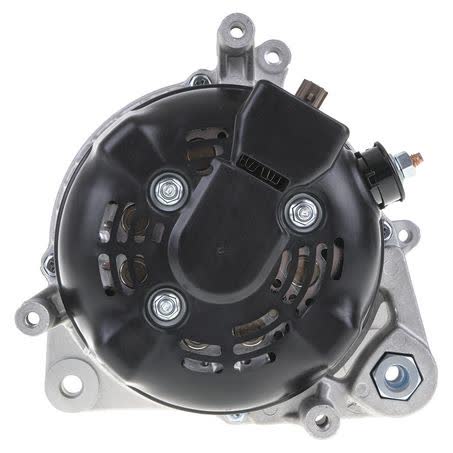

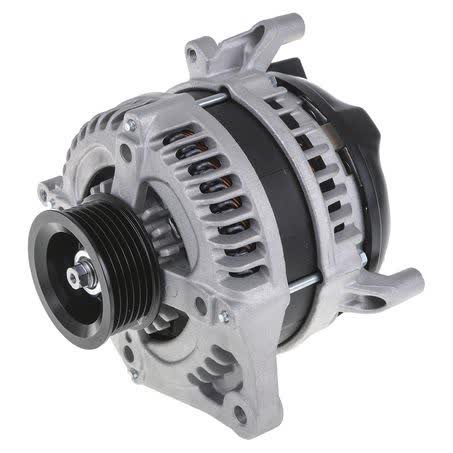

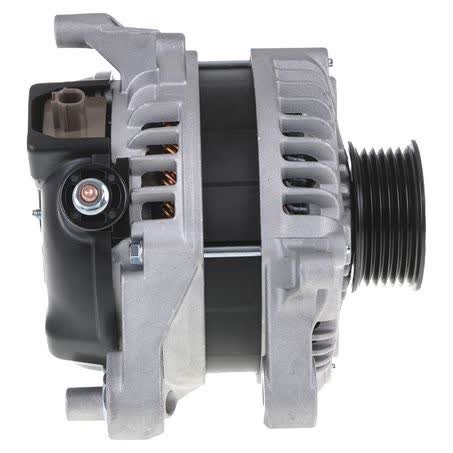

OEX Alternator 12V 130A Denso Style DXA4101

The OEX Alternator DXA4101 is a 12V, 130A unit made in a Denso style, with a twin leg alternator mount and internal regulator. It is listed as a new unit, not remanufactured, and uses a 6 groove pulley with a 60mm outside diameter.

Key dimensional details matter with alternators, and this unit includes 131mm mount centre to centre, 38.5mm inside mounting legs, and an 8.5mm adjusting hole diameter. The pivot hole diameter is listed as M8x1.25 / 9, which is the sort of detail that needs to match the original unit and bracket arrangement before purchase.

This alternator is part number DXA4101, branded OEX, and marked as suitable for Denso unit make. The stated warranty is 3 years for passenger use and 1 year for commercial use, which gives a clear reference point for buyers comparing replacement options.

Key Features

• 12V alternator with 130A output
• Denso style replacement
• Internal regulator
• Twin leg alternator mount
• 6 groove pulley, 60mm outside diameter
• New unit

Specifications

• Brand: OEX
• Product type: Alternator
• Voltage: 12V
• Power rating: 130A
• Regulator type: Internal
• Suits unit make: Denso
• Alternator mount: Twin leg
• Pulley section: 6 groove

Fitment information

• HONDA: CIVIC, CIVIC 2013, CIVIC 2014, CIVIC 2015, CIVIC 2016, plus other listed applications

Application and Buying Notes

Before ordering, compare the part number DXA4101, the Denso style housing, and the mounting details against the alternator you are replacing. The key checks here are the twin leg mount, 131mm mount centre to centre, 38.5mm inside mounting legs, and the M8x1.25 / 9 pivot hole diameter.

The pulley specification is also important. This unit uses a 6 groove pulley with a 60mm outside diameter, so the belt setup needs to match the vehicle’s original configuration. A mismatch at the pulley or mounting points can stop the alternator from fitting correctly even when the electrical rating is suitable.

The 130A output and 12V rating suit applications that call for those exact electrical specifications, but output alone should not be used to confirm fitment. The alternator must also match the regulator type, mounting style, and physical dimensions already fitted to the vehicle.

The stated compatibility detail available here is that the unit suits Denso application styling. If you are replacing an alternator in a Honda Civic or Honda CR-V, check the original unit, bracket layout, connector arrangement, and part number carefully before ordering. The listed fitment preview should be treated as a guide only unless you can confirm the match against the removed part.

The warranty is 3 years for passenger use and 1 year for commercial use, which is useful when comparing options, but warranty coverage does not confirm application fitment. Final confirmation should always be based on the alternator itself, the bracket dimensions, and the vehicle’s original specification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA4101 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 38.5mm, Pivot Hole Diameter M8x1.25 / 9, Pulley Outside Diameter 60mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 131mm.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. DXA4101, Brand OEX, Description OEX Alternator 12V 130A Denso Style, Adjusting Hole Diameter 8.5, Pin Code IR199, Power Rating (Amp) 130, Pulley Section 6 Groove, Suits Unit Make Denso, Alternator Mount Twin Leg.

OEX Alternator 12V 130A Denso Style. Part number DXA4101 should be checked first. Listed voltage is 12. Listed output rating is 130. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA4101, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 130 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HONDA CIVIC, HONDA CIVIC 2013, HONDA CIVIC 2014, HONDA CIVIC 2015. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment using the part number DXA4101, the Denso style designation, and the listed mounting and pulley measurements before purchase. If the removed alternator does not match the 12V, 130A, twin leg, internal regulator, 6 groove configuration, do not assume it will fit.

FAQ

What is the part number for this alternator?

The part number listed is DXA4101.

What voltage and output does it have?

It is a 12V alternator with a 130A power rating.

Is this a new or remanufactured unit?

It is listed as a new unit.

What type of regulator does it use?

It uses an internal regulator.

What pulley and mounting details are listed?

The alternator has a 6 groove pulley, 60mm pulley outside diameter, twin leg mount, 131mm mount centre to centre, 38.5mm inside mounting legs, M8x1.25 / 9 pivot hole diameter, and an 8.5mm adjusting hole diameter.

What warranty is provided?

The stated warranty is 3 years for passenger use and 1 year for commercial use.
