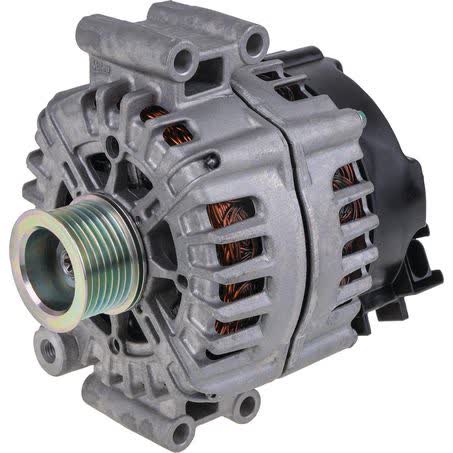

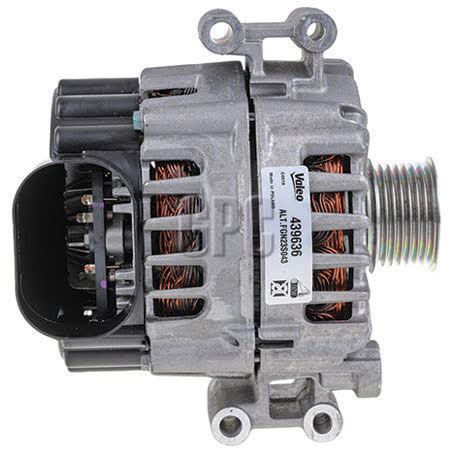

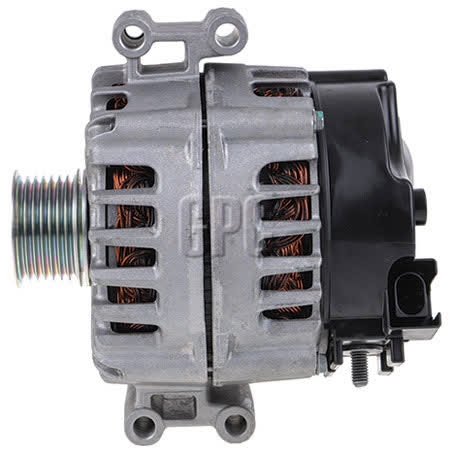

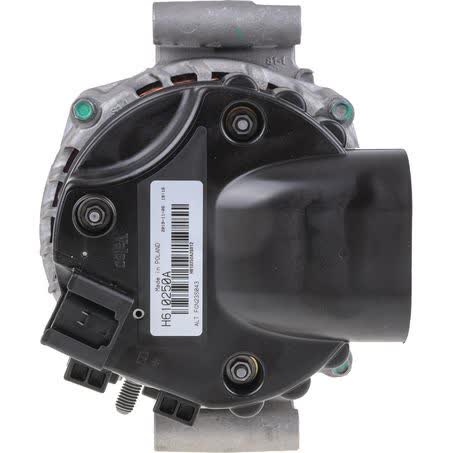

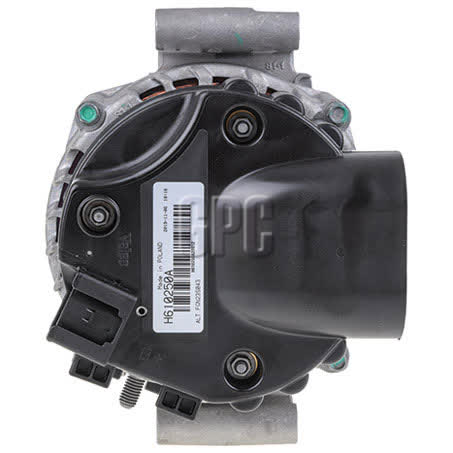

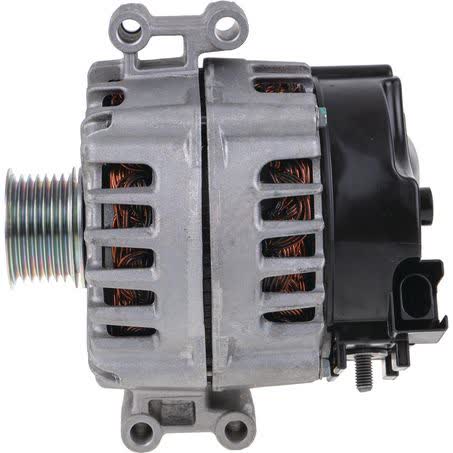

Valeo Alternator 12V 230A 439636

The Valeo Alternator 12V 230A is a new rotating electrical unit supplied by Valeo, part number 439636, with OEM number FG23S010. It is rated at 12 volts and 230 amps, and it uses an internal regulator for direct fastening installation.

This alternator is listed with a single leg mount, 174mm mount centre to centre, and a mount leg thickness of 83mm. It also uses a 7 groove pulley with a 50mm outside diameter, which are important points to match against the removed unit before ordering.

The unit is supplied with no connector for a revolution counter and is marked as having no insulated return. It weighs 7.44kg and is sold individually as each, with a one year warranty.

Valeo is identified here as a leading OE manufacturer and supplier for many euro vehicles. That makes this a sensible replacement choice where the existing unit matches the 12V 230A specification, the mounting arrangement, and the listed connector and pulley details.

Key Features

• 12V alternator rated at 230A
• New unit, sold each
• Internal regulator
• Single leg mount with direct fastening
• 7 groove pulley, 50mm outside diameter
• No connector for revolution counter

Specifications

• Brand: Valeo
• Product type: Alternator
• Voltage: 12V
• Charge current: 230A
• Regulator type: Internal
• Mount type: Single leg
• Fastening type: Direct fastening
• Pulley section: 7 groove

Known application guidance

• BMW 5 series
• BMW 6 series
• BMW 7 series
• BMW X5
• BMW X6
• BMW 5 applications shown include model years 2009, 2010, 2011, 2012 and 2013
• BMW 6 applications shown include model years 2010, 2011 and 2012
• BMW 7 applications shown includes model year 2008

Application and Buying Notes

Before ordering, compare the removed alternator with part number 439636 and OEM number FG23S010. The key match points on this unit are 12V, 230A, internal regulation, single leg mounting, direct fastening, and a 7 groove pulley with a 50mm outside diameter.

The physical dimensions matter on this alternator. Check the 174mm mount centre to centre and the 83mm mount leg thickness against the existing unit, because mounting style and bracket geometry need to line up correctly for installation.

Connector arrangement should also be verified carefully. This Valeo unit is listed with no connector for a revolution counter, so a vehicle that requires a different connector setup should not be matched by guesswork.

Application coverage shown for this part includes BMW 5, BMW 6, BMW 7, BMW X5 and BMW X6 references. Even where the vehicle family appears in the fitment list, final confirmation should still be made against the part number, pulley profile, mount type and electrical connection details on the vehicle being repaired.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 439636 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Pin Code IR182, Pulley Outside Diameter 50mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 174mm, Insulated Return No, Alternator Charge Current [A] 230.

Additional published details for cross-checking include Connector / Clamp No Connector for Revolution Counter, Product Group 2 ALTERNATORS, Part No. 439636, Brand VALEO, Description Valeo Alternator 12V 230A, Mount Leg Thickness 83mm, Power Rating (Amp) 230, Pulley Section 7 Groove, Suits Unit Make Valeo.

Valeo Alternator 12V 230A. Part number 439636 should be checked first. Listed voltage is 12. Listed output rating is 230. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 439636, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 230 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility by matching part number 439636 and OEM number FG23S010 with the removed alternator, including 12V 230A output, single leg mount, direct fastening, 7 groove pulley, 50mm pulley outside diameter, 174mm mount centre to centre, and the listed connector arrangement.

FAQ

Is this alternator new or remanufactured?

This Valeo alternator is listed as new, not remanufactured. For this listing, part number 439636 is the main reference point. Listed voltage is 12. Listed output rating is 230. Published fitment references include BMW 5, BMW 5 2009, BMW 5 2010. These details should still be checked against the original unit before ordering.

What is the electrical rating of this alternator?

It is a 12V alternator with a 230A charge current. For this listing, part number 439636 is the main reference point. Listed voltage is 12. Listed output rating is 230. Published fitment references include BMW 5, BMW 5 2009, BMW 5 2010. These details should still be checked against the original unit before ordering.

Does it have an internal regulator?

Yes. The regulator type is listed as internal. For this listing, part number 439636 is the main reference point. Listed voltage is 12. Listed output rating is 230. Published fitment references include BMW 5, BMW 5 2009, BMW 5 2010. These details should still be checked against the original unit before ordering.

What mounting arrangement does it use?

It is a single leg alternator with direct fastening, and the mount centre to centre is 174mm. For this listing, part number 439636 is the main reference point. Listed voltage is 12. Listed output rating is 230. Published fitment references include BMW 5, BMW 5 2009, BMW 5 2010. These details should still be checked against the original unit before ordering.

What pulley details should be checked before purchase?

It uses a 7 groove pulley with a 50mm outside diameter. Those dimensions should be checked against the removed unit. For this listing, part number 439636 is the main reference point. Listed voltage is 12. Listed output rating is 230. Published fitment references include BMW 5, BMW 5 2009, BMW 5 2010. These details should still be checked against the original unit before ordering.

Which part numbers are provided for identification?

The listed part number is 439636 and the OEM number is FG23S010. For this listing, part number 439636 is the main reference point. Listed voltage is 12. Listed output rating is 230. Published fitment references include BMW 5, BMW 5 2009, BMW 5 2010. These details should still be checked against the original unit before ordering.
