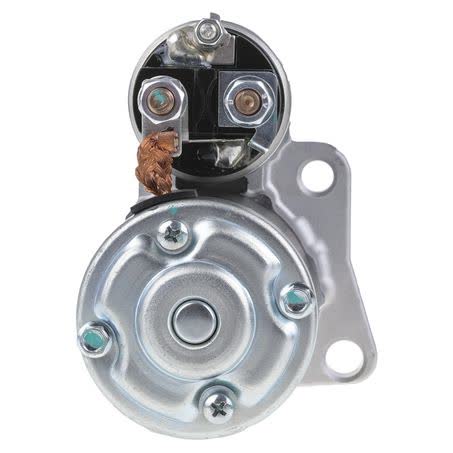

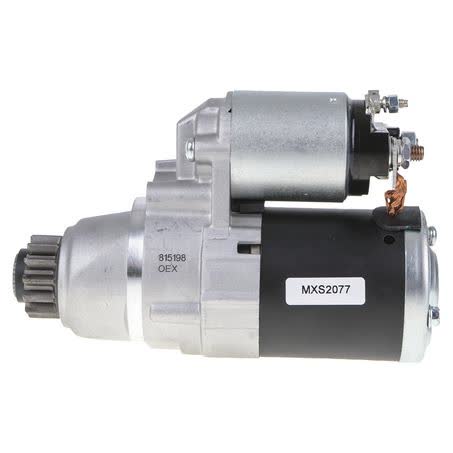

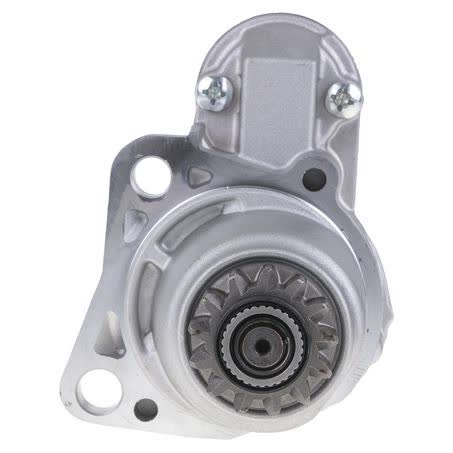

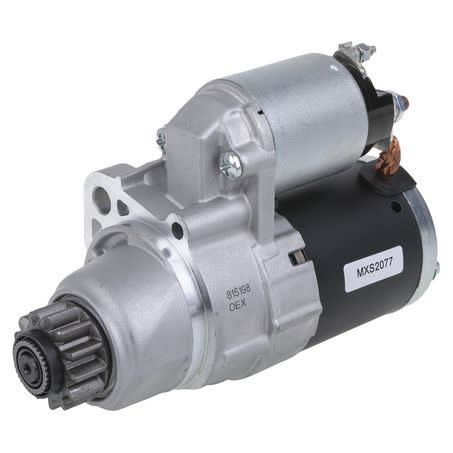

OEX Starter Motor 12V 13 Tooth CCW Mitsubishi Style MXS2077

The OEX starter motor listed here is a 12V unit with 13 teeth, counter-clockwise rotation, and a 1.3kW power rating. It is identified by part number MXS2077 and is described as Mitsubishi style with a 2-hole starter mount, so matching the application details matters when replacing an existing starter.

Key physical dimensions for this unit include a 70mm flange diameter, 199mm overall length, 39mm pinion diameter, and 57.5mm pinion at rest. It is a new starter motor, supplied each, and intended for dry clutch applications.

OEX states its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, made in ISO certified factories, and backed by a nationwide warranty. For this part, the stated warranty is 3 years for passenger use and 1 year for commercial use.

Key Features

• 12V starter motor
• 13-tooth pinion
• CCW rotation
• 1.3kW power rating
• Mitsubishi style application
• 2-hole starter mount

Specifications

• Brand: OEX
• Part number: MXS2077
• Voltage: 12V
• Number of teeth: 13
• Rotation: CCW
• Power rating: 1.3kW
• Flange diameter: 70mm
• Overall length: 199mm

Fitment guidance

• NISSAN: ALTIMA, ALTIMA 2013, ALTIMA 2014, ALTIMA 2015, ALTIMA 2016, plus other listed applications

Application and Buying Notes

Before ordering, compare the part number MXS2077 with the starter already fitted to the vehicle or unit. The critical match points for this starter are 12V operation, 13 teeth, CCW rotation, and the 2-hole mount, because those details must line up with the existing application.

The physical sizes also need to be checked. This starter has a 70mm flange diameter, 199mm overall length, a 39mm pinion diameter, and 57.5mm pinion at rest. If the mounting face, nose cone spacing, or pinion arrangement differs from the original part, the starter may not suit even if it looks similar.

This is a dry clutch starter and is listed as suiting Mitsubishi units. That makes the application detail important, especially where vehicle variants, engine combinations, or gearbox arrangements can change the starter used. When matching parts, the safest approach is to confirm the existing starter’s tag, tooth count, rotation, and mounting style before purchase.

The stated warranty is 3 years for passenger use and 1 year for commercial use. Warranty terms are useful, but they do not replace fitment checking. Confirm the installation context, because correct electrical specification alone does not guarantee the starter will physically interchange.

If you are replacing a worn starter, check for the same pinion count, rotation direction, and mounting pattern before fitting. These are the practical identifiers that usually prevent ordering errors on rotating electrical parts. A close match on one or two measurements is not enough if the part number and application details differ.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2077 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Number of Teeth 13, Pinion at Rest 57.5mm, Power Rating 1.3kW, Suits Unit Make Mitsubishi, New / Reman. New, Wet / Dry Clutch Dry, Product Group 1 ROTATING ELECTRICAL.

Additional published details for cross-checking include Part No. MXS2077, Brand OEX, Description OEX Starter Motor 12V 13Th CCW Mitsubishi Style, Flange Diameter 70mm, Overall Length 199mm, Pinion Diameter 39mm, Rotation CCW, Voltage 12, Starter Mount Type 2 Hole.

OEX Starter Motor 12V 13Th CCW Mitsubishi Style. Part number MXS2077 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2077, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility by matching part number MXS2077, 12V specification, 13-tooth count, CCW rotation, 2-hole mounting, and the listed dimensions against the existing starter and vehicle application before ordering.

FAQ

What is the part number for this starter motor?

The part number is MXS2077. For this listing, part number MXS2077 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN ALTIMA, NISSAN ALTIMA 2013, NISSAN ALTIMA 2014. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number MXS2077 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN ALTIMA, NISSAN ALTIMA 2013, NISSAN ALTIMA 2014. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 13 teeth. For this listing, part number MXS2077 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN ALTIMA, NISSAN ALTIMA 2013, NISSAN ALTIMA 2014. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The starter motor rotates counter-clockwise, noted as CCW. For this listing, part number MXS2077 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN ALTIMA, NISSAN ALTIMA 2013, NISSAN ALTIMA 2014. These details should still be checked against the original unit before ordering.

What warranty is listed for this part?

The stated warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2077 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN ALTIMA, NISSAN ALTIMA 2013, NISSAN ALTIMA 2014. These details should still be checked against the original unit before ordering.

What should be checked before ordering this starter?

Match the part number MXS2077, 12V rating, 13 teeth, CCW rotation, 2-hole mount, and the listed dimensions: 70mm flange diameter, 199mm overall length, 39mm pinion diameter, and 57.5mm pinion at rest. For this listing, part number MXS2077 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN ALTIMA, NISSAN ALTIMA 2013, NISSAN ALTIMA 2014. These details should still be checked against the original unit before ordering.
