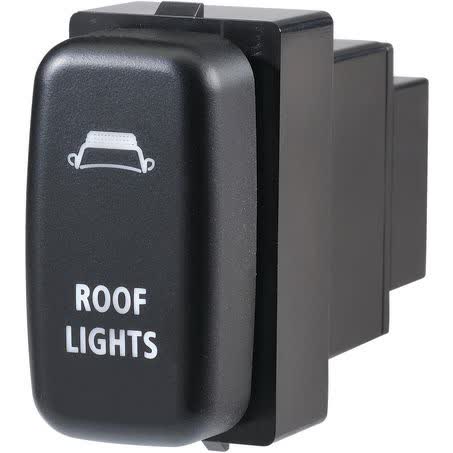

Thunder OE Style Push Button Switch Roof Light 12V 3A Part No. TDR11095

The Thunder OE Style Push Button Switch Roof Light is a 12V, 3A switch supplied as each, with a 35mm x 18mm mounting size and blue LED illumination. It is listed under part number TDR11095 and uses an On-Off-SPST switch action, which is the key detail to check if you are matching it to an existing switch position or wiring setup.

The wiring layout is clearly identified: black for earth, blue for dash light circuit optional, red for 12V input, and green for 12V output. That makes it easier to compare against the vehicle’s existing circuit and the intended accessory setup before fitting. The switch is part of Thunder’s auto electrical accessories range and is listed as a roof light switch style.

Key Features

• OE style push button switch
• Blue LED illumination
• On-Off-SPST switch action
• 12V operating voltage
• 3A power rating
• 35mm x 18mm mount size

Specifications

• Brand: Thunder
• Product type: Switch
• Item type: Switch
• Voltage: 12V
• Power rating: 3A
• Switch type: Push
• Switch action: On-Off-SPST
• Switch illumination: Blue LED

Confirmed fitment references

• Mitsubishi Triton ML series 2009-2015
• Mitsubishi Triton MN series 2009-2015
• Mitsubishi Challenger series 2009-2015
• Mitsubishi Pajero 2009-2015

Application and Buying Notes

Before ordering, compare the part number TDR11095 with the switch you are replacing and confirm the mounting space is 35mm x 18mm. Those two checks matter because the listed fitment is based on Mitsubishi application references, not a universal size or connector pattern.

The switch is rated at 12V and 3A, so it suits low-current accessory switching rather than heavier electrical loads. If the circuit you are working with draws more than 3A, the switch will need to be used only as part of a suitable control arrangement, not as the sole load carrier.

The wiring code is important during installation: black is earth, blue is for the dash light circuit and is optional, red is 12V input, and green is 12V output. If you are replacing an existing switch, matching these functions to the vehicle wiring is the safest way to avoid incorrect operation.

Blue LED illumination is included, which is useful if you want the switch to integrate with dash lighting. If the illumination feed is not required in your setup, the blue wire is noted as optional. That gives some flexibility, but the final wiring still needs to suit the vehicle’s circuit design and the accessory being controlled.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number TDR11095 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 3, Voltage 12V, Switch Type Push, Switch Illumination Blue LED Illumination, Product Group 1 AUTO ELEC ACCESSORIES, Part No. TDR11095, Brand THUNDER.

Additional published details for cross-checking include Description Thunder OE Style Push Button Switch Roof Light, Suits Mitsubishi, Mount Width 18mm, Switch Action On - Off - SPST, Mount Length 35mm, Item Type Switch, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Thunder OE Style Push Button Switch Roof Light, Suits Mitsubishi. Part number TDR11095 should be checked first. Listed voltage is 12V. Listed output rating is 3. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number TDR11095, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12V and output 3 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Confirm fitment by matching part number TDR11095, the 35mm x 18mm mounting size, and the listed Mitsubishi application details for your vehicle before purchase.

FAQ

What vehicles does this switch suit?

It is listed for Mitsubishi Triton ML series 2009-2015, Triton MN series 2009-2015, Challenger series 2009-2015, and Pajero 2009-2015. For this listing, part number TDR11095 is the main reference point. Listed voltage is 12V. Listed output rating is 3. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is TDR11095. For this listing, part number TDR11095 is the main reference point. Listed voltage is 12V. Listed output rating is 3. These details should still be checked against the original unit before ordering.

What are the electrical ratings?

It is a 12V switch with a 3A power rating. For this listing, part number TDR11095 is the main reference point. Listed voltage is 12V. Listed output rating is 3. These details should still be checked against the original unit before ordering.

What is the mounting size?

The listed mount size is 35mm x 18mm, with mount width 18mm and mount length 35mm. For this listing, part number TDR11095 is the main reference point. Listed voltage is 12V. Listed output rating is 3. These details should still be checked against the original unit before ordering.

What wiring connections are identified?

Black is earth, blue is dash light circuit optional, red is 12V input, and green is 12V output. For this listing, part number TDR11095 is the main reference point. Listed voltage is 12V. Listed output rating is 3. These details should still be checked against the original unit before ordering.

Does it have illumination?

Yes. It has blue LED illumination. For this listing, part number TDR11095 is the main reference point. Listed voltage is 12V. Listed output rating is 3. These details should still be checked against the original unit before ordering.
