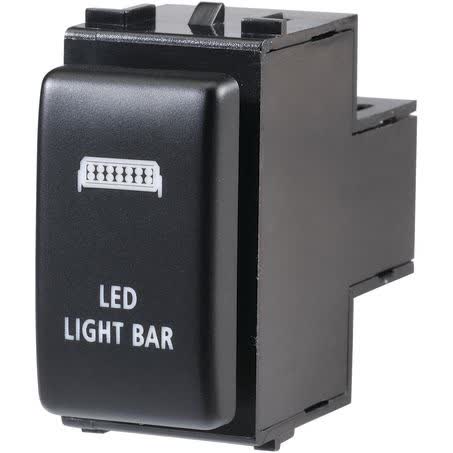

Thunder OE Style Push Button Switch Lightbar 12V 3A TDR11096

The Thunder OE Style Push Button Switch Lightbar is a 12V switch rated at 3A and supplied as part number TDR11096. It is an on-off SPST push switch with blue LED illumination and a mounting size of 35mm x 20mm, which makes it important to compare both the electrical rating and the panel cut-out before ordering.

This switch is listed for Nissan applications, including Pathfinder R51 series 2005-2012, Navara D40 series 2008-2012, Patrol GU4-7 series 2000-2012, Patrol Y61 series 2013-current, Patrol Y62 series 2013-current, and X-Trail T31 series 2007-2013. Because dashboard and console switch panels can vary, the part number TDR11096 and the stated mount width and length are the best checks to make first.

Wiring is identified as Black for earth, Blue for dash light circuit (optional), Red for 12V input, and Green for 12V output. That makes installation planning more straightforward, but the switch still needs to be matched to the vehicle’s circuit layout, the available space in the panel, and the load it will be asked to carry within the 3A / 12V rating.

Key Features

• OE style push button switch
• On - Off - SPST action
• Blue LED illumination
• 12V, 3A rating
• Mount size: 35mm x 20mm
• Part No. TDR11096

Specifications

• Brand: Thunder
• Type: Switch
• Item type: Switch
• Voltage: 12V
• Power rating: 3A
• Switch type: Push
• Switch action: On - Off - SPST
• Switch illumination: Blue LED illumination

Listed vehicle applications

• Nissan Pathfinder R51 series 2005-2012
• Nissan Navara D40 series 2008-2012
• Nissan Patrol GU4-7 series 2000-2012
• Nissan Patrol Y61 series 2013-current
• Nissan Patrol Y62 series 2013-current
• Nissan X-Trail T31 series 2007-2013

Application and Buying Notes

Before buying, check the switch location in the dash or console and measure the opening carefully against the stated 35mm x 20mm mount size. The part number TDR11096 is the most useful identifier when comparing against an existing switch or replacement request, especially where the vehicle is a Nissan Pathfinder R51, Navara D40, Patrol GU4-7, Patrol Y61, Patrol Y62 or X-Trail T31.

The electrical side matters just as much as the physical fit. This is a 12V switch with a 3A rating, so it should be used within that limit and matched to the intended circuit. The wiring code is Black for earth, Blue for dash light circuit if required, Red for 12V input, and Green for 12V output, so confirm the vehicle’s wiring arrangement before connecting.

Blue LED illumination may suit a dash or console install where switch visibility is useful, but the switch still needs to suit the application and the available wiring. If you are replacing an existing lightbar switch, compare the action type, which is on-off SPST, along with the mount dimensions and the existing connector or wiring setup before purchasing.

For Nissan owners, the listed model series and year ranges are the key compatibility checkpoints. Even within the same model line, trim level, factory switch blanks, or accessory wiring can differ. A careful check of the vehicle application, the cut-out size, and the part number will reduce the chance of ordering the wrong switch.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number TDR11096 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type SWITCH, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 3, Voltage 12V, Switch Type Push, Switch Illumination Blue LED Illumination, Product Group 1 AUTO ELEC ACCESSORIES, Part No. TDR11096, Brand THUNDER.

Additional published details for cross-checking include Description Thunder OE Style Push Button Switch Lightbar, Suits Nissan, Mount Width 20mm, Switch Action On - Off - SPST, Mount Length 35mm, Item Type Switch, Product Group 2 FUSES BREAKERS RELAYS SWITCHES.

Thunder OE Style Push Button Switch Lightbar, Suits Nissan. Part number TDR11096 should be checked first. Listed voltage is 12V. Listed output rating is 3. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number TDR11096, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a switch in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12V and output 3 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by checking part number TDR11096, the 35mm x 20mm mount size, the 12V 3A rating, and the listed Nissan application before ordering.

FAQ

What is the part number for this switch?

The part number is TDR11096.

What are the electrical ratings?

It is rated at 12V and 3A.

What type of switch is it?

It is an OE style push button switch with on-off SPST action.

Does it have illumination?

Yes. It has blue LED illumination.

What mounting size does it use?

The stated mount size is 35mm x 20mm, with 20mm mount width and 35mm mount length.

Which Nissan vehicles are listed for this switch?

Listed applications include Pathfinder R51 series 2005-2012, Navara D40 series 2008-2012, Patrol GU4-7 series 2000-2012, Patrol Y61 series 2013-current, Patrol Y62 series 2013-current, and X-Trail T31 series 2007-2013.
