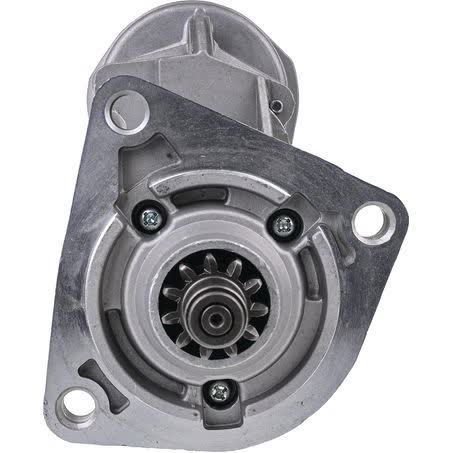

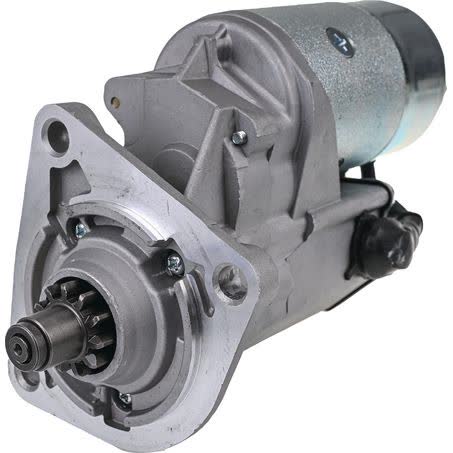

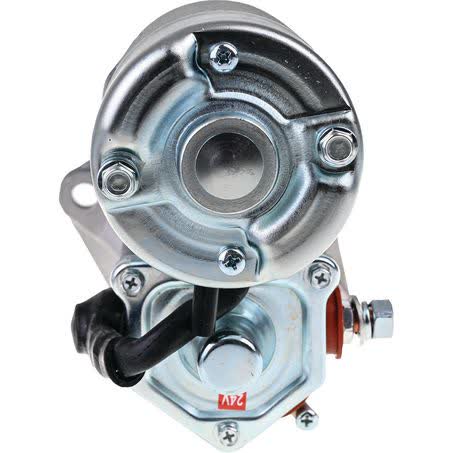

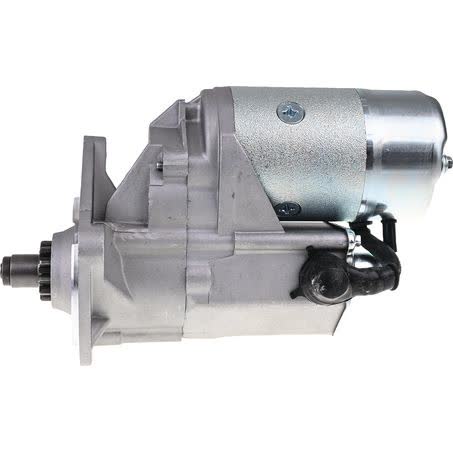

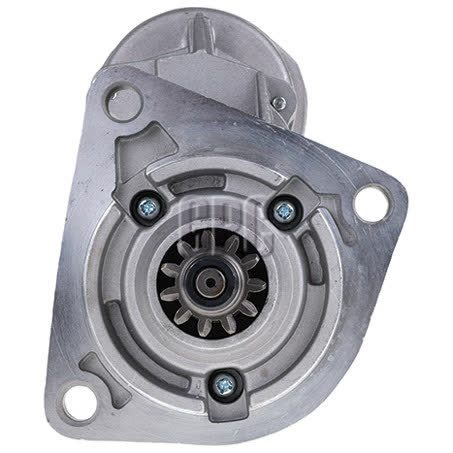

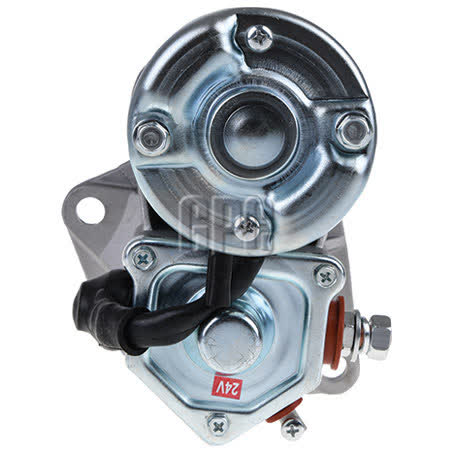

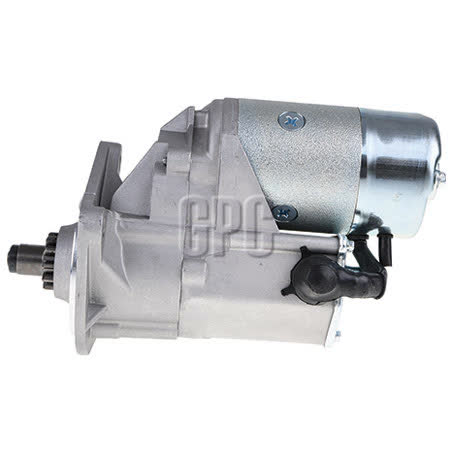

OEX Starter Motor 24V 11T CW Denso Style DXS625

The OEX Starter Motor DXS625 is a new 24V starter motor in Denso style, set up with 11 teeth and clockwise rotation. It is listed with a 4.5kW power rating, a 3 hole starter mount type, and a dry wet / dry clutch arrangement marked dry.

Key dimensions include an overall length of 295mm, a flange diameter of 100mm, mount centres of 140mm, 120mm and 107mm, and a mount hole diameter of 13.5mm. The pinion measures 40mm in diameter and sits at rest at 28mm, so those physical checks are important when matching it to the existing unit.

This starter is supplied under the OEX brand, with the stated source and factory standards behind the range, and it carries a 3 year passenger / 1 year commercial warranty. As with any starter motor, the safest way to buy is to match the part number DXS625, voltage, rotation, tooth count, mounting pattern and unit style before fitting.

The unit weighs 8.26kg and is identified as a starter motor for rotating electrical applications. If you are comparing against an original Denso style starter, the 24V setup, 11 tooth pinion and clockwise rotation are the main identifiers to check first.

Key Features

• 24V starter motor
• 11 tooth pinion
• Clockwise rotation
• Denso style unit
• New, not remanufactured
• 3 hole starter mount

Specifications

• Part No.: DXS625
• Voltage: 24V
• Power rating: 4.5kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 3 hole
• Overall length: 295mm
• Flange diameter: 100mm

Known application groups listed

• Ford N-Series
• Franna AT-14
• Franna AT-15
• Franna AT-18
• Franna AT-20
• Hino 300 Series
• Hino 500 Series
• Hino FB

Application and Buying Notes

Before ordering, compare the existing starter against DXS625 and confirm the 24V system, 11 tooth pinion, clockwise rotation, and 3 hole mounting pattern. The listed mount centres of 140mm, 120mm and 107mm, plus the 100mm flange diameter and 13.5mm mount hole diameter, are the sort of measurements that separate a correct replacement from one that will not bolt up properly.

The Denso style designation matters because starter housings and drive arrangements are not interchangeable by appearance alone. Check the pinion diameter of 40mm, pinion at rest of 28mm, and overall length of 295mm against the removed unit, particularly where there is limited clearance around the bellhousing or frame.

This is a new starter motor with a 4.5kW rating, so it should be selected on the basis of the application and the exact unit style rather than on guesswork. The same part can appear across a range of industrial, truck and equipment applications, but the final check should always be the physical starter details and part number, not just the vehicle or machine family name.

If you are replacing a failed unit, it is worth checking the mounting face, wiring arrangement and the old starter’s tag or casting details before fitting. The weight of 8.26kg also gives a useful sense of the unit size when handling, shipping or comparing it with the removed part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS625 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 140mm, Mount Centres C 107mm, Number of Teeth 11, Pinion at Rest 28mm, Power Rating 4.5kW, Suits Unit Make Denso, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. DXS625, Brand OEX, Description OEX Starter Motor 24V 11Th CW Denso Style, Flange Diameter 100mm, Mount Centres B 120mm, Mount Hole Diameter 13.5, Overall Length 295mm.

OEX Starter Motor 24V 11Th CW Denso Style. Part number DXS625 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS625, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD N-SERIES, FORD N-SERIES 1995, FORD N-SERIES 1996, FRANNA AT-14, FRANNA AT-14 1996, FRANNA AT-14 1997. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number DXS625, 24V voltage, 11 tooth CW rotation, Denso style, and the listed mounting dimensions and application details before purchase.

FAQ

What is the part number for this starter motor?

The part number listed is DXS625. For this listing, part number DXS625 is the main reference point. Listed voltage is 24. Published fitment references include FORD N-SERIES, FORD N-SERIES 1995, FORD N-SERIES 1996. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number DXS625 is the main reference point. Listed voltage is 24. Published fitment references include FORD N-SERIES, FORD N-SERIES 1995, FORD N-SERIES 1996. These details should still be checked against the original unit before ordering.

What voltage does it suit?

This starter motor is specified as 24V. For this listing, part number DXS625 is the main reference point. Listed voltage is 24. Published fitment references include FORD N-SERIES, FORD N-SERIES 1995, FORD N-SERIES 1996. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 11 teeth. For this listing, part number DXS625 is the main reference point. Listed voltage is 24. Published fitment references include FORD N-SERIES, FORD N-SERIES 1995, FORD N-SERIES 1996. These details should still be checked against the original unit before ordering.

What rotation does it use?

The rotation is clockwise, shown as CW. For this listing, part number DXS625 is the main reference point. Listed voltage is 24. Published fitment references include FORD N-SERIES, FORD N-SERIES 1995, FORD N-SERIES 1996. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS625 is the main reference point. Listed voltage is 24. Published fitment references include FORD N-SERIES, FORD N-SERIES 1995, FORD N-SERIES 1996. These details should still be checked against the original unit before ordering.
