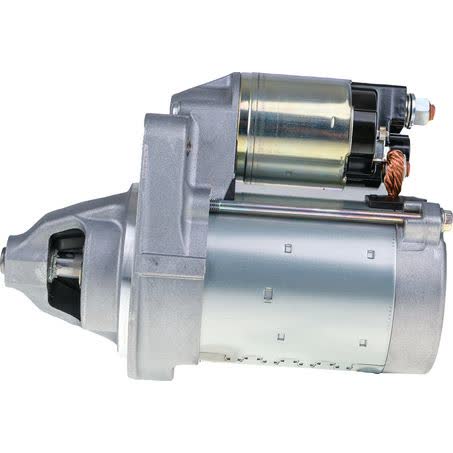

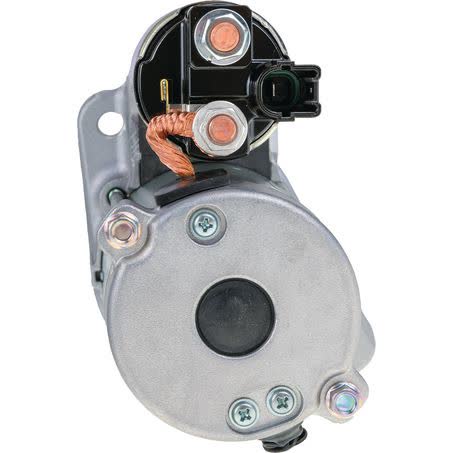

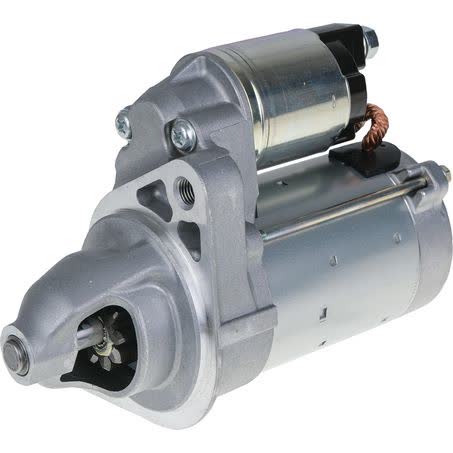

Denso Starter Motor 12V 1.6KW CW Part No. 428080-1240

This Denso starter motor is a new 12V unit with a 1.6kW power rating and clockwise rotation. It is listed as an OE product and carries part number 428080-1240, which is the most reliable reference when checking a replacement starter against the vehicle application.

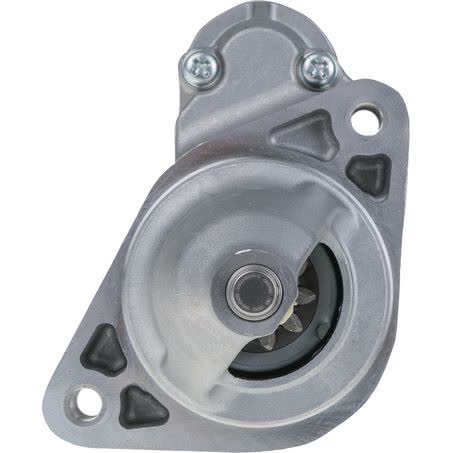

The unit is a 2-hole starter mount type with 113mm mount centres, a 74mm flange diameter, and M10x1.25 mount hole diameter. Overall length is 182mm, with a 31mm pinion diameter and 21mm pinion at rest, so the physical dimensions are important to confirm before ordering.

It is specified with 10 teeth and suits Denso applications. The starter is intended for dry clutch use and weighs 2.78kg, which gives a useful cross-check when comparing to the original starter motor already fitted to the vehicle.

Key Features

• New starter motor
• OE product
• 12V unit
• 1.6kW power rating
• Clockwise rotation
• 10-tooth pinion

Specifications

• Brand: Denso
• Part No.: 428080-1240
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.6kW
• Rotation: CW
• Number of teeth: 10
• Starter mount type: 2 hole

Vehicle applications supplied for this starter motor

• Lexus GS
• Lexus IS
• Lexus IS C
• Lexus RC
• Toyota Hilux
• Toyota Land Cruiser Prado
• Lexus GS model years shown in the supplied fitment include 2012 to 2020
• Toyota Hilux model years shown in the supplied fitment include 2005 to 2015

Application and Buying Notes

When replacing a starter motor, match the part number 428080-1240 first, then check the mounting details against the original unit. The key dimensions here are 113mm mount centres, 74mm flange diameter, M10x1.25 mount holes, 182mm overall length, and a 2-hole mounting pattern.

The electrical and drive details also need to line up with the vehicle’s original starter. This unit is 12V, 1.6kW, clockwise rotation, with 10 teeth and a 31mm pinion diameter. It is listed for dry clutch use, so that detail should be checked carefully before purchase.

If the old starter is still available, compare the pinion at rest measurement of 21mm and the unit weight of 2.78kg as additional checks. Those figures are often helpful when confirming whether the replacement is physically the same style as the one being removed.

Fitment information is provided for Lexus GS, Lexus IS, Lexus IS C, Lexus RC, Toyota Hilux, and Toyota Land Cruiser Prado applications. Even where a vehicle model appears in the fitment list, final confirmation should still be made against the part number, mounting style, and dimensions on the vehicle.

This starter is sold as a new OE product from Denso and is covered by a one-year warranty. That gives a straightforward replacement option where the original starter has failed, but the correct application still depends on matching the vehicle details and the starter configuration exactly.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 428080-1240 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 113mm, Number of Teeth 10, Pinion at Rest 21mm, Power Rating 1.6kW, Suits Unit Make Denso, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. 428080-1240, Brand DENSO, Description Denso Starter Motor 12V 9Th CW, Flange Diameter 74mm, Mount Hole Diameter M10x1.25, Overall Length 182mm, Pinion Diameter 31mm, Rotation CW.

Denso Starter Motor 12V 9Th CW. Part number 428080-1240 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 428080-1240, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using part number 428080-1240, the 12V 1.6kW CW specification, and the mounting and dimensional details before ordering. Vehicle model names alone are not enough to confirm compatibility.

FAQ

What is the part number for this starter motor?

The part number is 428080-1240. For this listing, part number 428080-1240 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2012, LEXUS GS 2013. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number 428080-1240 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2012, LEXUS GS 2013. These details should still be checked against the original unit before ordering.

What voltage and power rating does it have?

It is a 12V starter motor with a 1.6kW power rating. For this listing, part number 428080-1240 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2012, LEXUS GS 2013. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is clockwise rotation, shown as CW. For this listing, part number 428080-1240 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2012, LEXUS GS 2013. These details should still be checked against the original unit before ordering.

What vehicles are listed in the supplied fitment information?

The supplied fitment lists Lexus GS, Lexus IS, Lexus IS C, Lexus RC, Toyota Hilux, and Toyota Land Cruiser Prado applications. For this listing, part number 428080-1240 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2012, LEXUS GS 2013. These details should still be checked against the original unit before ordering.

What should I check before buying?

Confirm the part number 428080-1240, the 12V and 1.6kW specification, CW rotation, 10-tooth pinion, 2-hole mount type, and the mounting dimensions including 113mm mount centres and 182mm overall length. For this listing, part number 428080-1240 is the main reference point. Listed voltage is 12. Published fitment references include LEXUS GS, LEXUS GS 2012, LEXUS GS 2013. These details should still be checked against the original unit before ordering.
