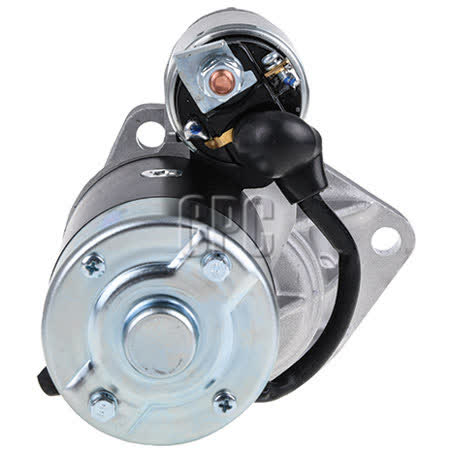

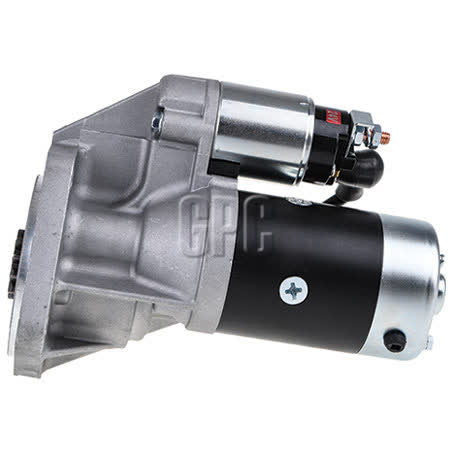

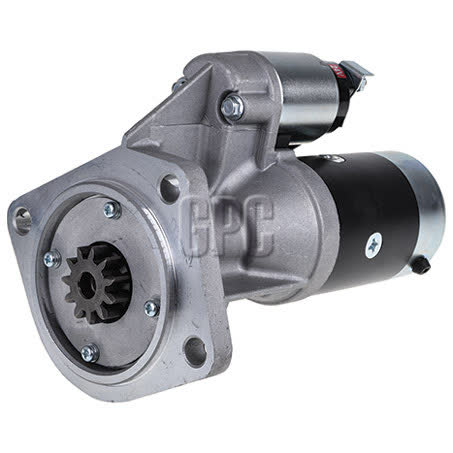

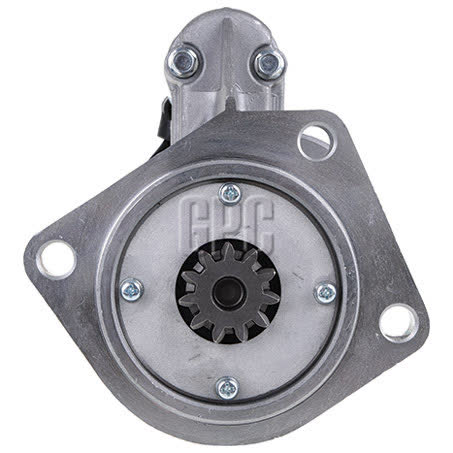

OEX Starter Motor 24V 11 Tooth CW Hitachi Style HXS9408

The OEX Starter Motor HXS9408 is a 24V new starter motor with 11 teeth, clockwise rotation and a Hitachi-style application. It is listed with a 105mm flange diameter, 3-hole starter mount type, and 13.5mm mount hole diameter, so the physical mounting details can be checked against the vehicle before ordering.

This unit is specified with 140mm mount centres A, 114mm mount centres B and 80mm mount centres C, along with a 40mm pinion diameter and 10mm pinion at rest. Those measurements matter when you are matching a replacement starter, especially on applications where the mounting pattern and pinion setup need to align exactly.

OEX states that its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with manufacture in ISO certified factories. The unit is backed by a 3yr passenger / 1yr commercial warranty, which gives a useful reference point for buyers choosing between repair options on a 24V electrical system.

Key Features

• 24V new starter motor
• 11-tooth pinion
• Clockwise rotation
• Hitachi style unit
• 3-hole starter mount
• Backed by 3yr passenger / 1yr commercial warranty

Specifications

• Brand: OEX
• Part No.: HXS9408
• Product type: Starter Motor
• Voltage: 24V
• Rotation: CW
• Number of teeth: 11
• Pinion diameter: 40mm
• Pinion at rest: 10mm

Known application groups supplied for this part

• ISUZU JOURNEY
• NISSAN CIVILIAN
• NISSAN INDUSTRIAL
• NISSAN INDUSTRIAL FORKLIFT
• NISSAN PATROL
• NISSAN SAFARI

Application and Buying Notes

Before buying, compare the part number HXS9408, the 24V rating, and the 11-tooth clockwise configuration with the starter you are removing. The mount layout is also important here: this unit is a 3-hole starter with a 105mm flange diameter, 140mm mount centres A, 114mm mount centres B, and 80mm mount centres C.

The pinion details should not be overlooked. This starter uses a 40mm pinion diameter and a 10mm pinion at rest, so those measurements should be matched to the original unit or the vehicle application. A small difference in tooth count, rotation direction, or mounting pattern can prevent correct installation even when the starter looks similar at a glance.

The listed fitment groups include Isuzu Journey, Nissan Civilian, Nissan Industrial, Nissan Industrial Forklift, Nissan Patrol, and Nissan Safari. Those names are useful as a guide, but matching by vehicle name alone is not enough for a starter motor, because production changes and different engine or electrical setups can affect compatibility.

If you are replacing a failed starter, check the old unit for the stamp or label, confirm the mounting ear spacing, and compare the flange diameter and mount hole diameter before finalising the order. The fact that this is a new OEX unit may suit buyers looking for a direct replacement approach rather than a repairable core unit.

This starter is sold as each, and the warranty is listed as 3 years for passenger use and 1 year for commercial use. If the vehicle is used commercially, make sure the warranty period and operating conditions suit the job, particularly where the starter is being fitted to a working vehicle that sees frequent starts and higher duty cycles.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS9408 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 140mm, Mount Centres C 80mm, Number of Teeth 11, Pinion Diameter 40mm, Suits Unit Make Hitachi, Item Type Starter Motor, Starter Mount Type 3 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. HXS9408, Brand OEX, Description OEX Starter Motor 24V 11Th CW Hitachi Style, Flange Diameter 105mm, Mount Centres B 114mm, Mount Hole Diameter 13.5, Pinion at Rest 10mm, Rotation CW.

OEX Starter Motor 24V 11Th CW Hitachi Style. Part number HXS9408 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS9408, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ISUZU JOURNEY, ISUZU JOURNEY 1993, ISUZU JOURNEY 1994, ISUZU JOURNEY 1995, NISSAN CIVILIAN, NISSAN CIVILIAN 1992. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment with the part number HXS9408 and the full application details, including 24V, 11 teeth, clockwise rotation, 3-hole mount pattern, flange diameter, and pinion measurements before purchasing.

FAQ

What is the part number for this starter motor?

The part number listed is HXS9408.

Is this a 12V or 24V starter motor?

It is a 24V starter motor.

How many teeth does the pinion have?

The starter is specified with 11 teeth.

What direction of rotation does it use?

It is listed as clockwise rotation (CW).

What vehicle groups are shown for this part?

The supplied application groups are Isuzu Journey, Nissan Civilian, Nissan Industrial, Nissan Industrial Forklift, Nissan Patrol, and Nissan Safari.

What warranty is listed for this OEX starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
