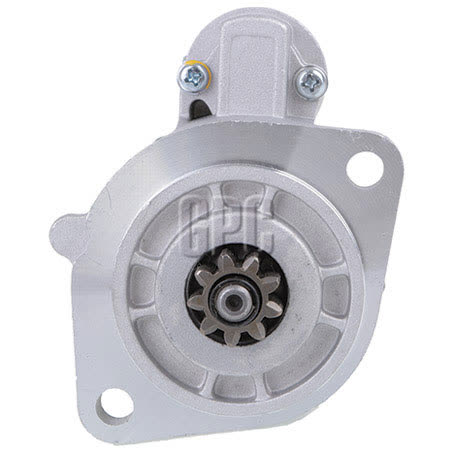

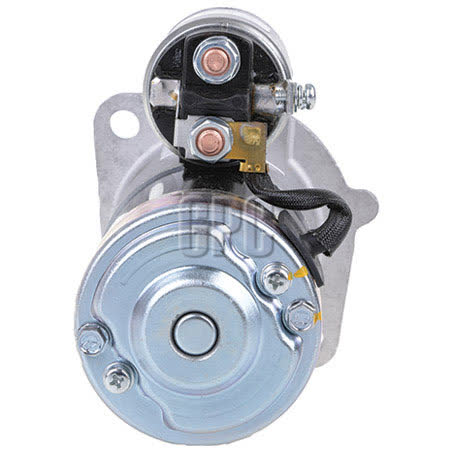

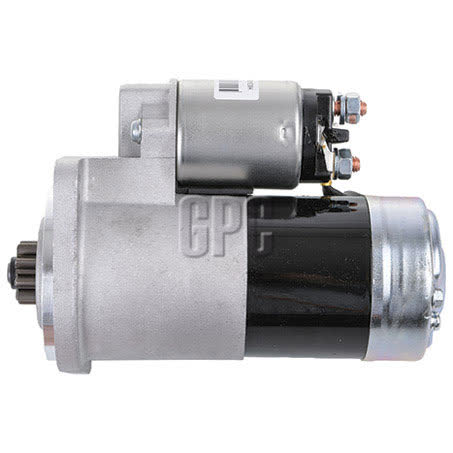

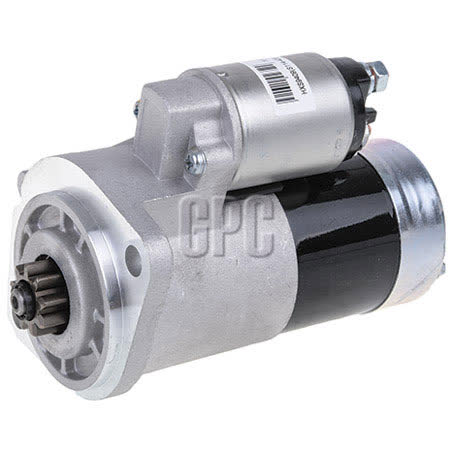

OEX Starter Motor 12V 9T CW Hitachi HXS9409

The OEX Starter Motor HXS9409 is a new 12V unit with a 9 tooth pinion, clockwise rotation, and a 2 hole starter mount type. It is listed for Hitachi applications and is supplied as each, which makes it a straightforward replacement option when the original starter matches the same electrical and mounting details.

Key dimensions for checking compatibility are a 110mm mount centre, 80mm flange diameter, 12mm mount hole diameter, 29mm pinion diameter, and 21mm pinion at rest. Those figures matter because starter motors need both the electrical rating and the physical mounting pattern to line up before installation.

OEX states this starter is made using OE components for fit and function, and that it is sourced from ISO9001 certified factories. The product is backed by a 3 year passenger / 1 year commercial warranty, which gives a clear ownership period to consider when comparing replacement options.

This listing is for the OEX brand, product type Starter Motor, part number HXS9409, and description OEX Starter Motor 12V 9Th CW Hitachi. Confirming the part number and the measured mounting details is the best way to avoid ordering the wrong unit for the application.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• 2 hole starter mount
• New unit
• Suits Hitachi unit make

Specifications

• Brand: OEX
• Part No.: HXS9409
• Product Type: Starter Motor
• Unit of Measure: Each
• Voltage: 12V
• Rotation: CW
• Number of Teeth: 9
• Pinion Diameter: 29mm

Checked fitment applications

• GEHL SL3410
• GEHL SL3610/3615
• GEHL SL3615
• GEHL SL3645
• HITACHI EX22
• HITACHI EX25
• HITACHI EX30
• HITACHI EX30UR

Application and Buying Notes

Before ordering, compare the part number HXS9409 with the starter currently fitted to the machine. The important physical checks here are the 12V electrical rating, clockwise rotation, 9 tooth pinion, 2 hole mount, 110mm mount centres, and 80mm flange diameter. A starter can look similar and still differ in the mounting pattern or pinion arrangement, so the measurements are worth confirming carefully.

This unit is listed for Hitachi applications, with fitment information showing GEHL SL3410, SL3610/3615, SL3615 and SL3645, plus Hitachi EX22, EX25, EX30, EX30UR, EX35 and EX40UR. If your machine is one of these, verify the exact model and year against the existing starter or machine records before purchasing, because the same model family can use different parts across production runs.

The pinion diameter of 29mm and the 21mm pinion-at-rest measurement are useful checkpoints when matching the drive end of the starter. Matching those dimensions helps reduce the chance of issues at installation time, particularly where the mounting face and engagement position need to align with the ring gear.

OEX lists this as a new starter motor, not a remanufactured unit. For buyers comparing new and used or rebuilt alternatives, that distinction matters because it affects how the unit is supplied and what condition to expect on arrival. The listed warranty is 3 years for passenger use and 1 year for commercial use, so the intended application should be considered when assessing warranty coverage.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS9409 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Number of Teeth 9, Pinion Diameter 29mm, Suits Unit Make Hitachi, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. HXS9409, Brand OEX, Description OEX Starter Motor 12V 9Th CW Hitachi, Flange Diameter 80mm, Mount Hole Diameter 12, Pinion at Rest 21mm, Rotation CW, Voltage 12, New / Reman. New.

OEX Starter Motor 12V 9Th CW Hitachi. Part number HXS9409 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS9409, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include GEHL SL3410, GEHL SL3410 1988, GEHL SL3410 1989, GEHL SL3410 1990, HITACHI EX22, HITACHI EX22 2005. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number HXS9409, the 12V CW specification, and the mounting dimensions before purchase. If the existing starter or machine identification does not align with the listed details, check the application carefully rather than assuming interchangeability.

FAQ

What is the part number for this starter motor?

The part number listed is HXS9409.

What voltage and rotation does this starter motor have?

It is a 12V starter motor with clockwise (CW) rotation.

Is this starter motor new or remanufactured?

It is listed as new.

What are the main mounting dimensions?

The listed mounting details are 110mm mount centres, 80mm flange diameter, 12mm mount hole diameter, and a 2 hole starter mount type.

Which applications are shown for this starter motor?

The fitment information lists GEHL SL3410, SL3610/3615, SL3615 and SL3645, plus Hitachi EX22, EX25, EX30, EX30UR, EX35 and EX40UR.

What warranty is listed for this OEX starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
