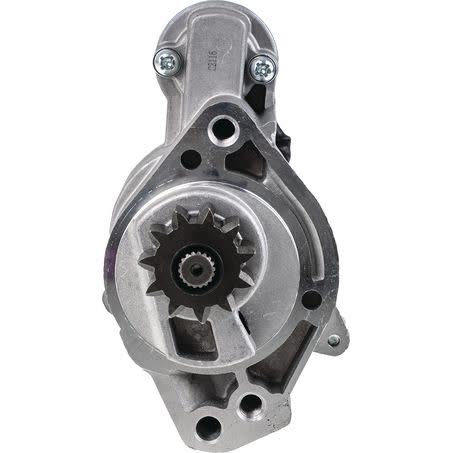

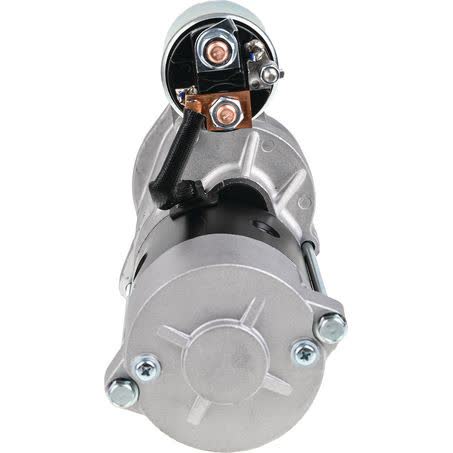

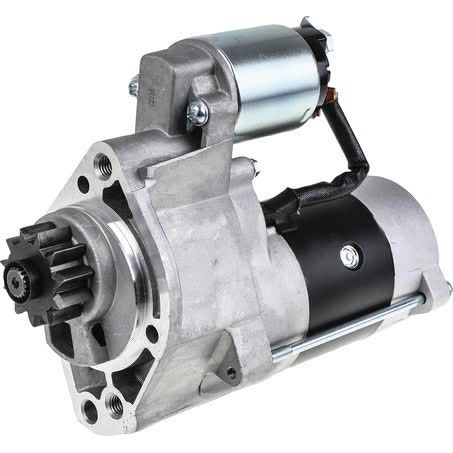

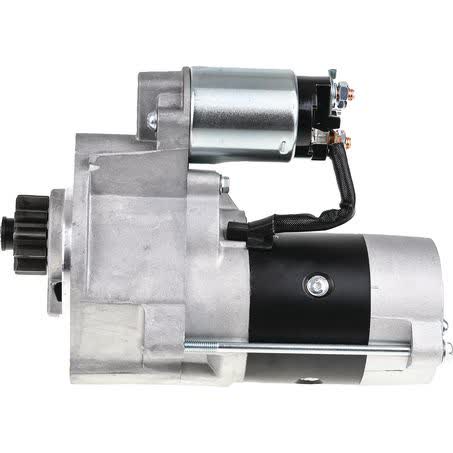

OEX Starter Motor 12V 11 Tooth CW Mitsubishi Style MXS2079

The OEX Starter Motor MXS2079 is a new 12V starter motor with 11 teeth, clockwise rotation, and a 2.2kW power rating. It is listed as a Mitsubishi style unit, with a 3 hole starter mount type, 70mm flange diameter, and M10x1.5 mount hole diameter.

This unit is an offset reduction geared starter motor and the note is specific: it will only replace an 11 tooth unit. The position of the solenoid in relation to the mounting flange must be confirmed against the original unit before purchase, as that detail matters for correct physical fitment.

Measured dimensions include an overall length of 237mm, mount centre to centre of 108mm, pinion diameter of 43mm, and a pinion at rest measurement of 31mm. The unit weighs 4.88kg and is supplied as each.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories and support from a nationwide warranty. Warranty cover is listed as 3 years for passenger use and 1 year for commercial use.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• New unit
• Mitsubishi style application
• 3 hole starter mount

Specifications

• Part number: MXS2079
• Voltage: 12V
• Power rating: 2.2kW
• Number of teeth: 11
• Rotation: CW
• Mount hole diameter: M10x1.5
• Starter mount type: 3 hole
• Flange diameter: 70mm

Fitment guidance

• NISSAN: NAVARA, NAVARA 2002, NAVARA 2003, NAVARA 2004, NAVARA 2005, plus other listed applications

Application and Buying Notes

Before ordering, check the 11 tooth count on your original starter carefully. This MXS2079 unit is only listed to replace an 11 tooth unit, so a 10 tooth or 12 tooth starter is not interchangeable on the information provided here.

Confirm the solenoid position relative to the mounting flange against your original starter motor. That check is specifically called out for this Mitsubishi style unit, and it is an important physical compatibility point even when the rotation, bolt pattern, and voltage appear close.

Measure the mounting points on the vehicle side as well as the starter itself. The listed 3 hole starter mount type, 70mm flange diameter, M10x1.5 mount hole diameter, and 108mm mount centre to centre are the practical dimensions that help confirm whether the replacement will locate correctly.

Make sure the electrical and mechanical requirements match the existing unit. This starter is 12V with a 2.2kW power rating, clockwise rotation, and a 43mm pinion diameter, so the replacement should be checked against the original starter’s key details rather than relying on appearance alone.

If you are comparing options, use the part number MXS2079 as the main reference point along with the application to Mitsubishi style units. The product is new, dry clutch type, and intended as an offset reduction geared starter, so these are the defining features to compare when assessing suitability.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2079 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter M10x1.5, Overall Length 237mm, Pinion Diameter 43mm, Rotation CW, Voltage 12, Item Type Starter Motor, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS2079, Brand OEX, Description OEX Starter Motor 12V 11Th CW Mitsubishi Style, Flange Diameter 70mm, Number of Teeth 11, Pinion at Rest 31mm, Power Rating 2.2kW.

OEX Starter Motor 12V 11Th CW Mitsubishi Style. Part number MXS2079 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2079, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment with the part number MXS2079 and check the 11 tooth count, 12V specification, clockwise rotation, 3 hole mount, and solenoid position against the original unit before ordering.

FAQ

What is the part number for this starter motor?

The part number is MXS2079. For this listing, part number MXS2079 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number MXS2079 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth, and the note says it will only replace an 11 tooth unit. For this listing, part number MXS2079 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

What are the key electrical specifications?

The starter motor is 12V and rated at 2.2kW, with clockwise rotation. For this listing, part number MXS2079 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

What mounting details are listed?

The unit has a 3 hole starter mount type, M10x1.5 mount hole diameter, 70mm flange diameter, and 108mm mount centre to centre. For this listing, part number MXS2079 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

What should be checked before ordering?

Confirm the 11 tooth count and the solenoid position relative to the mounting flange against the original starter, and verify the listed dimensions and 12V specification. For this listing, part number MXS2079 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.
