OEX Alternator 12V 180A Denso Style DXA4152

The OEX Alternator DXA4152 is a 12V, 180A unit built in a Denso style configuration. It is listed as a new alternator with an internal regulator, a 6 groove pulley, and a quad leg mount, so it suits buyers who need those specific mounting and electrical details matched before ordering.

Key dimensions include 45mm inside mounting legs, a 139mm centre-to-centre mount, a 54mm pulley outside diameter, and an M10x1.5 / 11 pivot hole diameter. Those measurements matter because alternators may look similar at a glance but still differ in bracket spacing, pulley setup, or fixing points.

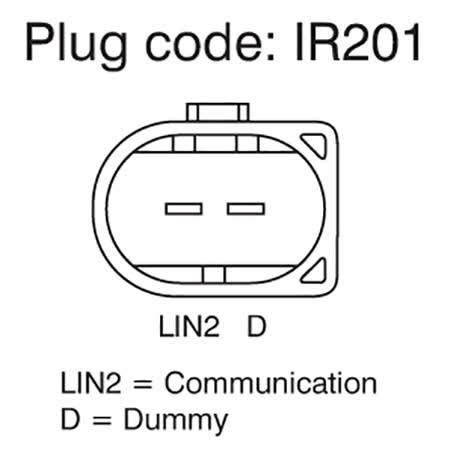

This unit is identified by part number DXA4152 and pin code IR201. The listed application reference is Denso, so the safest approach is to compare the part number, regulator type, mount style, pulley section, and physical dimensions against the existing unit already fitted to the vehicle.

Key Features

• 12V alternator with 180A power rating
• Denso style unit
• New alternator, not remanufactured
• Internal regulator
• 6 groove pulley
• Quad leg mount

Specifications

• Brand: OEX
• Product type: Alternator
• Voltage: 12V
• Power rating: 180A
• Suits unit make: Denso
• Regulator type: Internal
• Pulley section: 6 groove
• Alternator mount: Quad leg

Vehicle fitment guidance

• JAGUAR: XF, XF 2012, XF 2013, XF 2014, XF 2015, plus other listed applications

Application and Buying Notes

For this alternator, the most important checks are the part number DXA4152, the Denso style application, and the physical mounting details. The listed 6 groove pulley, quad leg mount, 45mm inside mounting legs, 139mm centre-to-centre spacing, and M10x1.5 / 11 pivot hole diameter need to line up with the unit being replaced.

The 180A output rating is a useful point of comparison when replacing a charging system component, but the alternator still has to match the vehicle’s mounting arrangement and pulley configuration. A different amperage unit or a different pulley count can create installation problems even when the alternator appears similar.

Because alternators are matched by a combination of electrical and mechanical details, it is best to confirm the existing unit’s label, mounting ears, pulley section, regulator arrangement, and dimensions before purchase. The pin code IR201 and the Denso application reference are additional checkpoints that help narrow the correct replacement.

If the vehicle has already been modified, or if the original alternator has been replaced before, compare the fitted unit carefully rather than relying only on model year or general vehicle description. The safer method is to check the actual alternator on the vehicle and confirm it against the measurements and identifiers listed here.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA4152 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Pin Code IR201, Power Rating (Amp) 180, Pulley Section 6 Groove, Suits Unit Make Denso, Alternator Mount Quad Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. DXA4152, Brand OEX, Description OEX Alternator 12V 180A Denso Style, Inside Mounting Legs 45mm, Pivot Hole Diameter M10x1.5 / 11, Pulley Outside Diameter 54mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 139mm.

OEX Alternator 12V 180A Denso Style. Part number DXA4152 should be checked first. Listed voltage is 12. Listed output rating is 180. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA4152, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 180 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by checking the part number DXA4152, the Denso style application, and the physical details including 12V, 180A, 6 groove pulley, quad leg mount, 45mm inside mounting legs, 139mm mount centre-to-centre, and M10x1.5 / 11 pivot hole diameter before ordering.

FAQ

What is the part number for this alternator?

The listed part number is DXA4152. For this listing, part number DXA4152 is the main reference point. Listed voltage is 12. Listed output rating is 180. Published fitment references include JAGUAR XF, JAGUAR XF 2012, JAGUAR XF 2013. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number DXA4152 is the main reference point. Listed voltage is 12. Listed output rating is 180. Published fitment references include JAGUAR XF, JAGUAR XF 2012, JAGUAR XF 2013. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with a 180A power rating. For this listing, part number DXA4152 is the main reference point. Listed voltage is 12. Listed output rating is 180. Published fitment references include JAGUAR XF, JAGUAR XF 2012, JAGUAR XF 2013. These details should still be checked against the original unit before ordering.

What type of pulley does it use?

It has a 6 groove pulley with a 54mm outside diameter. For this listing, part number DXA4152 is the main reference point. Listed voltage is 12. Listed output rating is 180. Published fitment references include JAGUAR XF, JAGUAR XF 2012, JAGUAR XF 2013. These details should still be checked against the original unit before ordering.

What mounting details are listed?

The alternator has a quad leg mount, 45mm inside mounting legs, 139mm mount centre to centre, and an M10x1.5 / 11 pivot hole diameter. For this listing, part number DXA4152 is the main reference point. Listed voltage is 12. Listed output rating is 180. Published fitment references include JAGUAR XF, JAGUAR XF 2012, JAGUAR XF 2013. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3yr Passenger and 1yr Commercial. For this listing, part number DXA4152 is the main reference point. Listed voltage is 12. Listed output rating is 180. Published fitment references include JAGUAR XF, JAGUAR XF 2012, JAGUAR XF 2013. These details should still be checked against the original unit before ordering.
