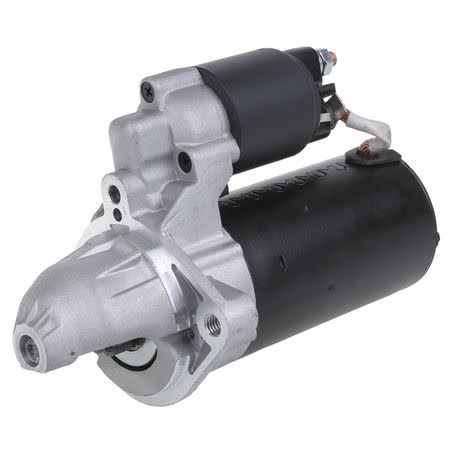

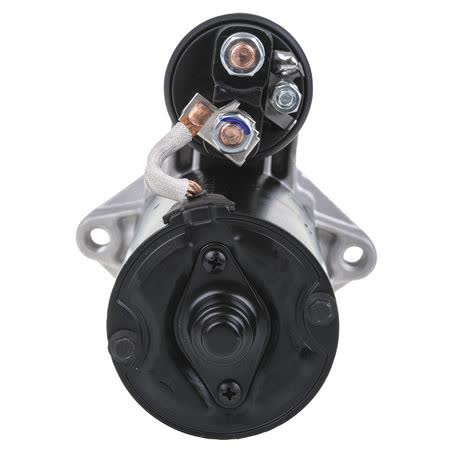

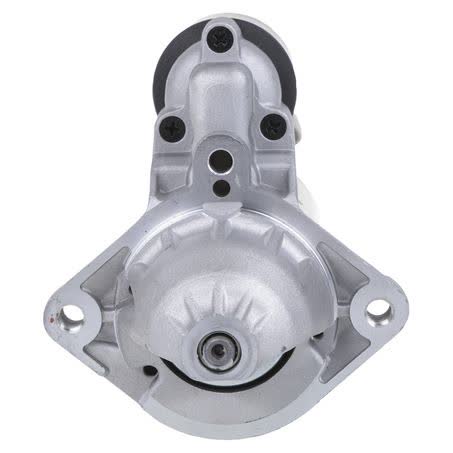

OEX Starter Motor 12V 9TH CW Bosch Style BXS0169

The OEX Starter Motor BXS0169 is a new 12V starter motor with a 9-tooth pinion, clockwise rotation and Bosch suitability. It is listed with a 1.8kW power rating, a 2 hole starter mount, 105mm mount centres, and an M10x1.5 mount hole diameter.

This unit has a 74mm flange diameter, a 56mm nose cone length, and an overall length of 235mm. The pinion diameter is 29.7mm, and the pinion at rest measures 21.2mm. Those dimensions are important when matching an existing starter, particularly where space around the bellhousing or mounting face is limited.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, are produced in ISO certified factories, and are backed by a nationwide warranty. Warranty coverage for this starter is listed as 3 years for passenger use and 1 year for commercial use.

Key Features

• New starter motor
• 12V electrical system
• 9-tooth pinion
• Clockwise rotation
• Bosch style unit
• 2 hole starter mount

Specifications

• Part number: BXS0169
• Brand: OEX
• Type: Starter motor
• Voltage: 12V
• Power rating: 1.8kW
• Rotation: CW
• Number of teeth: 9
• Starter mount type: 2 hole

Confirmed fitment applications supplied

• BMW 1
• BMW 1 2004
• BMW 1 2005
• BMW 1 2006
• BMW 1 2007
• BMW 1 2008
• BMW 1 2009
• BMW 1 2010

Application and Buying Notes

Before ordering, compare the part number BXS0169 with the starter already fitted to the vehicle, and check that the replacement uses a Bosch-style 12V starter arrangement with 9 teeth and clockwise rotation. The listed 2 hole starter mount, 105mm mount centres, and M10x1.5 mounting holes need to match the existing application closely for correct installation.

The physical dimensions matter as much as the electrical rating. This starter is listed at 1.8kW, with a 74mm flange diameter, 56mm nose cone length, 235mm overall length, and 29.7mm pinion diameter. If the original unit differs in any of those areas, especially around the nose cone or mounting face, the replacement should be checked carefully before purchase.

This starter is supplied new and is intended for Bosch applications, so it is best matched by part number and specification rather than by vehicle name alone. The fitment data supplied includes BMW 1, BMW 3, BMW 5, BMW X3 and BMW X5 applications, with model-year references shown for BMW 1 and BMW 3, but the safest approach is still to confirm the exact starter on the vehicle and compare all listed dimensions.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. If the vehicle is used commercially, that shorter warranty period is the one to rely on. Keep the purchase record and part number handy so the unit can be identified quickly if there is any need to verify the application later.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0169 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Nose Cone Length 56mm, Overall Length 235mm, Pinion Diameter 29.7mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXS0169, Brand OEX, Description OEX Starter Motor 12V 9Th CW Bosch Style, Flange Diameter 74mm, Mount Hole Diameter M10x1.5, Number of Teeth 9, Pinion at Rest 21.2mm, Power Rating 1.8kW.

OEX Starter Motor 12V 9Th CW Bosch Style. Part number BXS0169 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0169, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BMW 1, BMW 1 2004, BMW 1 2005, BMW 1 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number BXS0169, Bosch-style application, 12V rating, 9-tooth clockwise configuration, mounting pattern, and all listed dimensions against the existing starter and vehicle application before ordering.

FAQ

What is the part number for this starter motor?

The part number is BXS0169. For this listing, part number BXS0169 is the main reference point. Listed voltage is 12. Published fitment references include BMW 1, BMW 1 2004, BMW 1 2005. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number BXS0169 is the main reference point. Listed voltage is 12. Published fitment references include BMW 1, BMW 1 2004, BMW 1 2005. These details should still be checked against the original unit before ordering.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation. For this listing, part number BXS0169 is the main reference point. Listed voltage is 12. Published fitment references include BMW 1, BMW 1 2004, BMW 1 2005. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number BXS0169 is the main reference point. Listed voltage is 12. Published fitment references include BMW 1, BMW 1 2004, BMW 1 2005. These details should still be checked against the original unit before ordering.

What vehicles are listed in the supplied fitment data?

The supplied fitment data includes BMW 1, BMW 3, BMW 5, BMW X3 and BMW X5 applications, with BMW 1 and BMW 3 model-year references shown in the data provided. For this listing, part number BXS0169 is the main reference point. Listed voltage is 12. Published fitment references include BMW 1, BMW 1 2004, BMW 1 2005. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS0169 is the main reference point. Listed voltage is 12. Published fitment references include BMW 1, BMW 1 2004, BMW 1 2005. These details should still be checked against the original unit before ordering.
