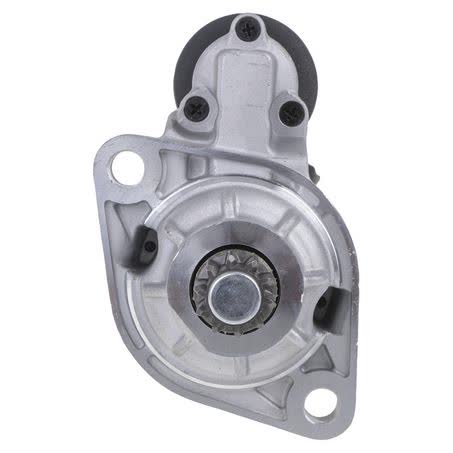

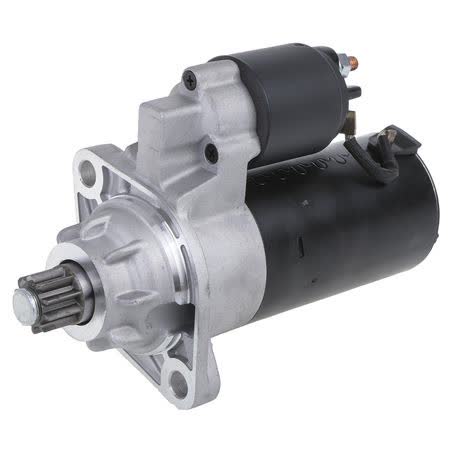

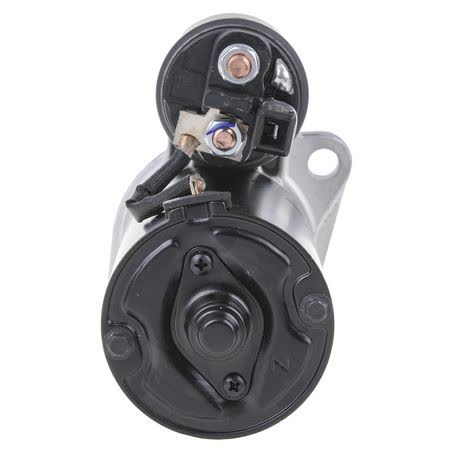

OEX Starter Motor 12V 10 Tooth CCW Bosch Style BXS0170

The OEX Starter Motor BXS0170 is a new 12V unit with a 10 tooth pinion, counter clockwise rotation and Bosch suitability. Key physical details include a 112mm mount centres A measurement, 76mm flange diameter, 67mm nose cone length and 260mm overall length, so it is worth checking the existing starter against these dimensions before ordering.

This starter motor is listed with a 2kW power rating, a 28mm pinion diameter and a 62.5mm pinion at rest measurement. It uses a 2 hole starter mount with 12.5mm mount hole diameter and is specified as a dry unit. Those measurements are the practical checks that matter when confirming whether it is the correct replacement for the vehicle already fitted with a Bosch style starter.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. The warranty listed is 3 years for passenger use and 1 year for commercial use, which gives a clear reference point for customers comparing replacement starter motors in the rotating electrical category.

Key Features

• New starter motor
• 12V electrical system
• 10 tooth pinion
• CCW rotation
• Bosch style fitment
• 2 hole starter mount

Specifications

• Part number: BXS0170
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 2kW
• Number of teeth: 10
• Rotation: CCW
• Suits unit make: Bosch

Fitment guidance

• AUDI A3
• VOLKSWAGEN BORA
• VOLKSWAGEN GOLF

Application and Buying Notes

Before ordering, match the part number BXS0170 and confirm the physical starter details against the vehicle already fitted. The important points here are 12V, 10 tooth, CCW rotation, Bosch suitability, 2 hole mounting, 112mm mount centres A and the 260mm overall length. If any of those differ from the existing unit, the part should be checked again before purchase.

The fitment information provided includes AUDI A3, VOLKSWAGEN BORA and VOLKSWAGEN GOLF applications, but it should still be treated as a confirmation aid rather than a substitute for checking the vehicle and the removed starter. For starter motors, the number of teeth, rotation direction, mount type and dimensions such as nose cone length and flange diameter are all important because a close visual match is not always enough.

This unit is specified as a new Bosch style starter motor with a 2kW rating, so it is suitable where those exact details are required. The warranty is listed separately for passenger and commercial use, at 3 years and 1 year respectively, so buyers should choose with the intended vehicle use in mind and keep their invoice and part details for reference.

For a clean installation, inspect the mounting face, electrical connections and the existing starter’s orientation before fitting. The 28mm pinion diameter, 62.5mm pinion at rest measurement and 12.5mm mount hole diameter are all useful checkpoints when comparing against the removed part. If the original starter has been replaced before, compare the old unit and any visible markings carefully rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0170 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 112mm, Nose Cone Length 67mm, Overall Length 260mm, Pinion Diameter 28mm, Rotation CCW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXS0170, Brand OEX, Description OEX Starter Motor 12V 10Th CCW Bosch Style, Flange Diameter 76mm, Mount Hole Diameter 12.5, Number of Teeth 10, Pinion at Rest 62.5mm, Power Rating 2kW.

OEX Starter Motor 12V 10Th CCW Bosch Style. Part number BXS0170 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0170, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI A3, AUDI A3 1999, AUDI A3 2000, AUDI A3 2001, VOLKSWAGEN BORA, VOLKSWAGEN BORA 2000. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number BXS0170, Bosch style application details, 12V specification, 10 tooth count, CCW rotation and the listed mounting dimensions before purchase.

FAQ

What is the part number for this starter motor?

The part number is BXS0170. For this listing, part number BXS0170 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1999, AUDI A3 2000. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number BXS0170 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1999, AUDI A3 2000. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number BXS0170 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1999, AUDI A3 2000. These details should still be checked against the original unit before ordering.

What rotation direction is listed?

The starter motor is listed as CCW rotation. For this listing, part number BXS0170 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1999, AUDI A3 2000. These details should still be checked against the original unit before ordering.

Which unit make does it suit?

It is specified to suit Bosch units. For this listing, part number BXS0170 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1999, AUDI A3 2000. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS0170 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 1999, AUDI A3 2000. These details should still be checked against the original unit before ordering.
