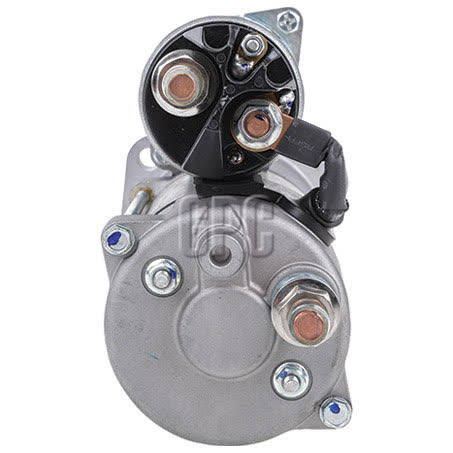

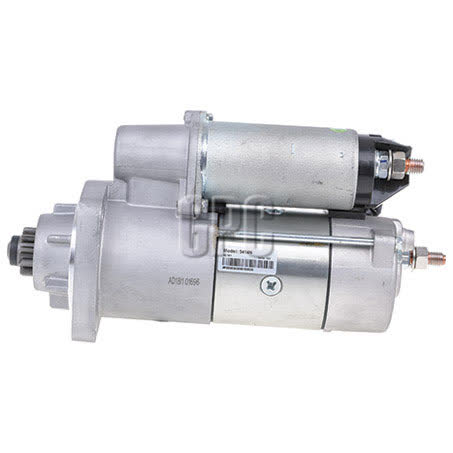

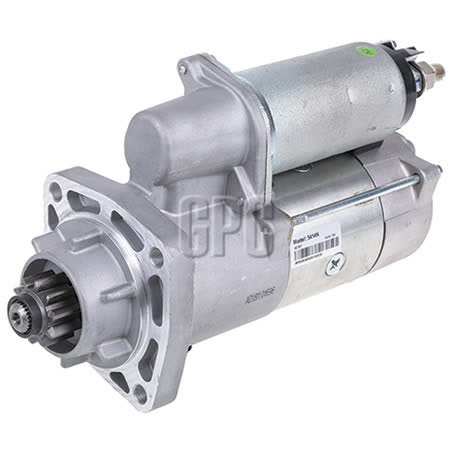

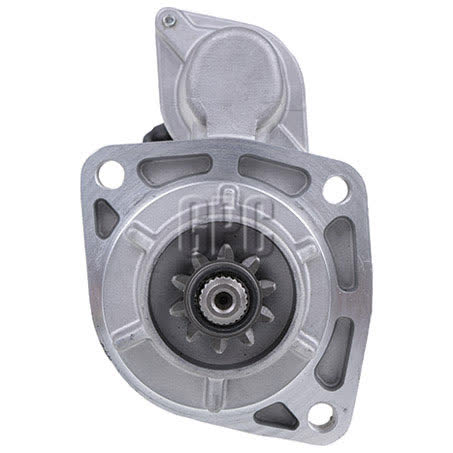

OEX Starter Motor 12V 10 Tooth CW Delco 35MT Style DXS628

The OEX Starter Motor DXS628 is a new 12V starter motor in a Delco 35MT style layout, with 10 teeth and clockwise rotation. It is listed as a dry clutch unit and is intended for applications that match the mounting and pinion dimensions shown here, including 3 hole mounting and 4.3kW power rating.

Key dimensions to check before ordering are the 126mm mount centres A, 90mm mount centres B and C, 11mm mount hole diameter, 40mm pinion diameter and 48mm pinion at rest. Those measurements are what matter when comparing against the existing starter, especially when the vehicle uses a Delco-pattern unit.

This starter is part number DXS628 and is supplied as a new OEX unit. OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories and backed by a nationwide warranty.

Key Features

• 12V starter motor
• Delco 35MT style
• 10 tooth pinion
• Clockwise rotation
• 3 hole starter mount
• New unit

Specifications

• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 4.3kW
• Rotation: CW
• Number of teeth: 10
• Suits unit make: Delco
• Starter mount type: 3 hole

Fitment guidance

• No verified vehicle fitment has been supplied for this listing.
• Application is shown against Delco-style starter use, but compatibility still needs to be confirmed by measurements and part number.
• Check the existing unit for DXS628 or compare all listed mounting and pinion dimensions before ordering.

Application and Buying Notes

Starter motors are best matched by part number, mounting pattern and pinion measurements, not just by voltage. For this OEX unit, the important checkpoints are DXS628, 12V, 10 teeth, clockwise rotation and the Delco 35MT style with 3 hole mounting.

If you are replacing a worn starter, compare the old unit carefully against the 126mm mount centres A, 90mm mount centres B and C, 11mm mount hole diameter and 40mm pinion diameter. The 48mm pinion at rest measurement is also useful when checking physical clearance and engagement style.

The 4.3kW rating tells you the unit’s output class, but it should still be matched to the vehicle application and the existing starter design. The fact that this is a new, dry clutch starter is relevant where the original unit is built the same way, while the listed warranty is 3 years for passenger use and 1 year for commercial use.

If the old starter is missing, damaged or has an unreadable label, the safest approach is to confirm the vehicle’s application against the Delco style layout and then verify each measurement against the replacement part. That is the most reliable way to avoid ordering a starter that fits the wrong mounting pattern or pinion setup.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS628 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres B 90mm, Mount Hole Diameter 11, Pinion at Rest 48mm, Power Rating 4.3kW, Suits Unit Make Delco, Item Type Starter Motor, Starter Mount Type 3 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. DXS628, Brand OEX, Description OEX Starter Motor 12V 10Th CW Delco 35MT Style, Mount Centres A 126mm, Mount Centres C 90mm, Number of Teeth 10, Pinion Diameter 40mm, Rotation CW.

OEX Starter Motor 12V 10Th CW Delco 35MT Style. Part number DXS628 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS628, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BANDIT INTIMIDATOR 18XP, BANDIT INTIMIDATOR 18XP 2021, CUMMINS ISB 6.7, CUMMINS ISB 6.7 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking part number DXS628, Delco 35MT style application details, 12V specification, 10 tooth count, clockwise rotation, and all mounting and pinion dimensions against the existing starter before purchase.

FAQ

What is the part number for this starter motor?

The part number listed is DXS628. For this listing, part number DXS628 is the main reference point. Listed voltage is 12. Published fitment references include BANDIT INTIMIDATOR 18XP, BANDIT INTIMIDATOR 18XP 2021, CUMMINS ISB 6.7. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number DXS628 is the main reference point. Listed voltage is 12. Published fitment references include BANDIT INTIMIDATOR 18XP, BANDIT INTIMIDATOR 18XP 2021, CUMMINS ISB 6.7. These details should still be checked against the original unit before ordering.

What is the rotation of this starter motor?

The listed rotation is clockwise, shown as CW. For this listing, part number DXS628 is the main reference point. Listed voltage is 12. Published fitment references include BANDIT INTIMIDATOR 18XP, BANDIT INTIMIDATOR 18XP 2021, CUMMINS ISB 6.7. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number DXS628 is the main reference point. Listed voltage is 12. Published fitment references include BANDIT INTIMIDATOR 18XP, BANDIT INTIMIDATOR 18XP 2021, CUMMINS ISB 6.7. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It is listed as a 3 hole starter mount. For this listing, part number DXS628 is the main reference point. Listed voltage is 12. Published fitment references include BANDIT INTIMIDATOR 18XP, BANDIT INTIMIDATOR 18XP 2021, CUMMINS ISB 6.7. These details should still be checked against the original unit before ordering.

Is vehicle fitment guaranteed from the information provided?

No. The supplied details do not confirm exact vehicle fitment, so the part number, Delco 35MT style application and all listed measurements should be checked against the existing starter before ordering. For this listing, part number DXS628 is the main reference point. Listed voltage is 12. Published fitment references include BANDIT INTIMIDATOR 18XP, BANDIT INTIMIDATOR 18XP 2021, CUMMINS ISB 6.7. These details should still be checked against the original unit before ordering.
