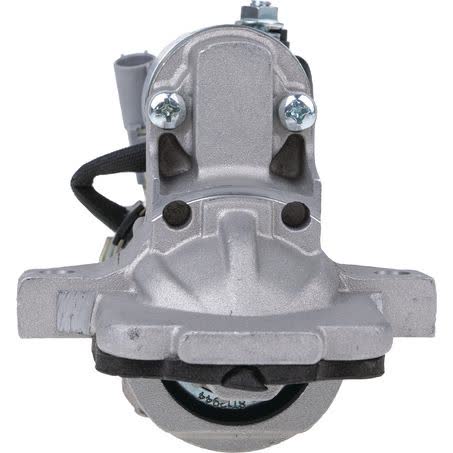

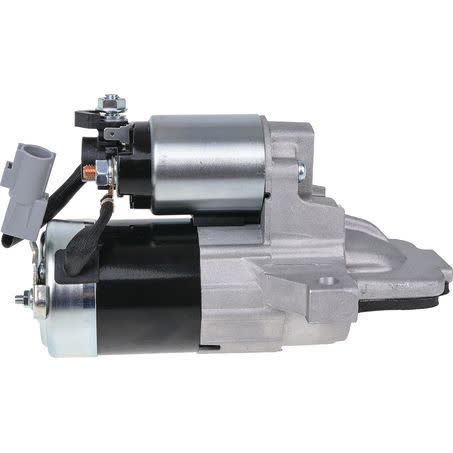

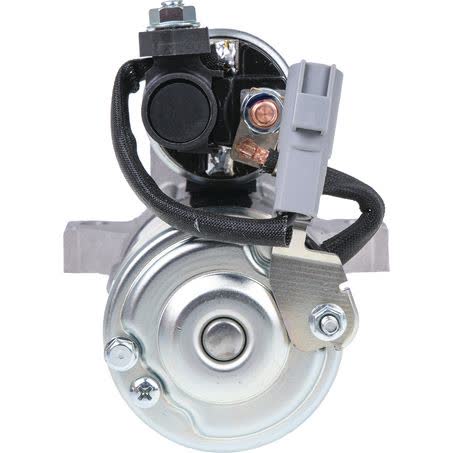

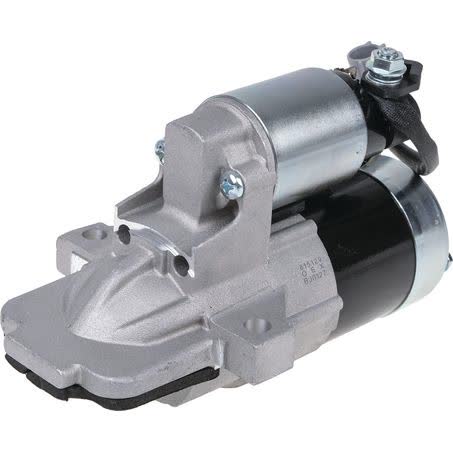

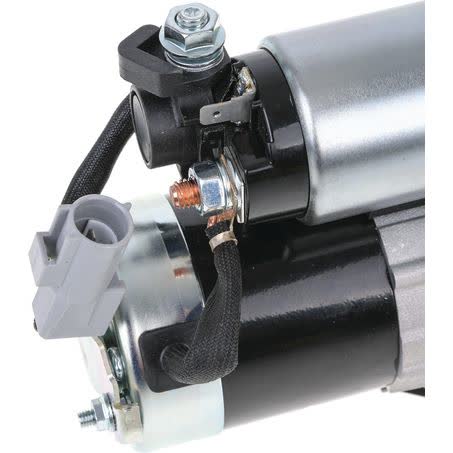

OEX Starter Motor 12V 11 Tooth CW Mitsubishi Style MXS2005U

The OEX starter motor is a 12V unit with clockwise rotation, 11 teeth, and a 1.4kW power rating. It is listed as new, with a pad starter mount type, and carries part number MXS2005U for identification when checking the application.

Physical dimensions matter on starter motors, and this unit is specified with 97mm mount centres, an 82mm flange diameter, 10.5mm mount hole diameter, 216mm overall length, 34mm pinion diameter, and 29mm pinion at rest. Those measurements are important when confirming whether the starter will physically suit the vehicle and mounting pattern.

The unit is described as Mitsubishi style and suits Mitsubishi unit make. It is also noted as being fitted with a multi-fit start wire terminal option, which may be relevant when matching the vehicle’s electrical connection layout. As with any starter motor, the part number and dimensions should be checked against the existing unit before ordering.

Key Features

• 12V starter motor
• Clockwise rotation
• 11-tooth pinion
• 1.4kW power rating
• Pad mount type
• Multi-fit start wire terminal option

Specifications

• Brand: OEX
• Product type: Starter motor
• Part No.: MXS2005U
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 1.4kW
• Starter mount type: Pad

Fitment guidance

• Use the part number MXS2005U as the primary check.
• The unit is listed for Mitsubishi unit make.
• The supplied fitment data references Ford Escape and Mazda 3 applications, along with Mazda 6, Mazda CX-7, and Mazda MX-5 families.
• Fitment is only indicated by the supplied application data and should still be verified against the existing starter, mounting pattern, rotation, teeth count, and terminal arrangement.
• Confirm the 12V specification, 11-tooth pinion, CW rotation, and 97mm mount centres before ordering.

Application and Buying Notes

When matching a starter motor, the main checks are the part number, mounting style, and electrical specification. This unit is a 12V, CW rotating starter with 11 teeth, a 1.4kW rating, and a pad mount, so those details should line up with the original starter or the vehicle application before purchase.

The physical measurements are just as important as the electrical details. The 97mm mount centres, 82mm flange diameter, 10.5mm mount hole diameter, 216mm overall length, and 34mm pinion diameter are all useful checkpoints when comparing against the existing part. Even a correct-looking starter can be wrong if the mounting pattern or pinion dimensions do not match.

This starter is listed as new and weighs 3.04kg. The warranty shown is 3yr Passenger and 1yr Commercial, so it is worth confirming how the vehicle will be used before relying on the warranty period. Passenger and commercial use are treated differently here, so the intended application should be considered at the time of purchase.

The safest way to buy a starter motor is to compare the old unit side by side with MXS2005U. Check the tooth count, rotation direction, mount type, and dimensions, then confirm the vehicle application information before fitting. That approach reduces the risk of ordering a part that is close in appearance but not correct in specification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2005U helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 97mm, Number of Teeth 11, Pinion at Rest 29mm, Power Rating 1.4kW, Suits Unit Make Mitsubishi, Note Option Fitted With Multi-Fit Start Wire Terminal, Starter Mount Type Pad.

Additional published details for cross-checking include Weight 3.04kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2005U, Brand OEX, Description OEX Starter Motor 12V 11Th CW Mitsubishi Style, Flange Diameter 82mm, Mount Hole Diameter 10.5, Overall Length 216mm, Pinion Diameter 34mm, Rotation CW.

OEX Starter Motor 12V 11Th CW Mitsubishi Style. Part number MXS2005U should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2005U, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD ESCAPE, FORD ESCAPE 2004, FORD ESCAPE 2005, FORD ESCAPE 2006, MAZDA 3, MAZDA 3 2003. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment using part number MXS2005U, the 12V CW specification, 11-tooth pinion, pad mount type, and the listed mounting dimensions before ordering.

FAQ

What is the part number for this starter motor?

The part number is MXS2005U.

What voltage does this starter motor use?

It is a 12V starter motor.

What rotation does it have?

It is clockwise rotation, shown as CW.

How many teeth does the pinion have?

The pinion has 11 teeth.

What vehicles are listed in the supplied fitment data?

The supplied fitment data references Ford Escape and Mazda applications, including Mazda 3, Mazda 6, Mazda CX-7, and Mazda MX-5 families. Fitment still needs to be confirmed against the part number and measurements.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
