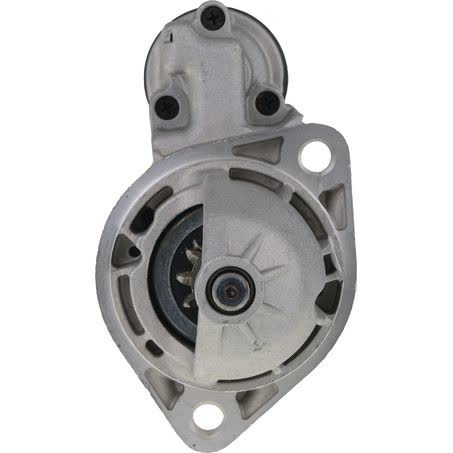

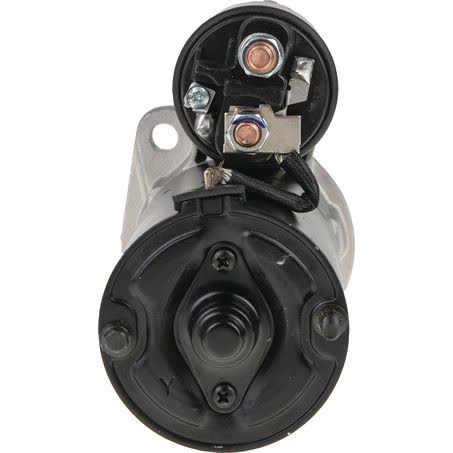

OEX Starter Motor 12V 11 Tooth CW Bosch Style BXS0175

The OEX Starter Motor BXS0175 is a new 12V starter motor in Bosch style, built with an 11 tooth pinion and clockwise rotation. It is listed as a 2.5kW unit with a 2 hole starter mount, so it suits applications where those core dimensions and mounting details match the original unit.

This starter motor has a 101mm mount centres A measurement, 82.5mm flange diameter, 63mm nose cone length, and 248mm overall length. The pinion diameter is 35.9mm, the mount hole diameter is 11mm, and the pinion at rest measurement is 23mm, all of which are useful checks when comparing against the existing starter.

It is identified for Bosch units and is sold as a new starter motor, not remanufactured. OEX states its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, produced in ISO certified factories, and supported by a comprehensive nationwide warranty.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• Bosch style unit
• 2 hole starter mount
• New unit

Specifications

• Part No.: BXS0175
• Brand: OEX
• Type: Starter Motor
• Voltage: 12V
• Power rating: 2.5kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 2 hole

Known applications

• BOMAG BW100A
• BOMAG BW120AD
• BOMAG BW151AD2
• DEUTZ BF4L1011F
• DEUTZ F2L1011F
• DEUTZ F3L1011
• DEUTZ F4L1011F
• DYNAPAC CC222HF/CHF

Application and Buying Notes

When comparing this starter to the one already on the machine, start with the part number BXS0175 and then confirm the physical details: 12V, 11 tooth, clockwise rotation, 2 hole mount, and Bosch style. Those identifiers do the heavy lifting in starter matching, especially where the application list covers multiple machines and engine variants.

The mounting dimensions are also important. Check the 101mm mount centres A, 82.5mm flange diameter, 63mm nose cone length, 248mm overall length, and 11mm mount hole diameter against the original starter before ordering. A starter can look similar but still differ in nose length, flange size, or pinion position, so those measurements should be verified carefully.

The 2.5kW power rating is another useful comparison point, but it should be considered alongside the physical dimensions and tooth count rather than on its own. This unit is listed as new, dry clutch, and suitable for Bosch applications, so it is intended for installations where those specifications align with the existing setup.

OEX notes that its products are sourced from ISO certified factories and backed by a nationwide warranty, with 3 years for passenger use and 1 year for commercial use. Warranty terms are still subject to the correct application and installation, so it is worth checking the original starter and the vehicle or machine use category before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0175 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 101mm, Nose Cone Length 63mm, Overall Length 248mm, Pinion Diameter 35.9mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXS0175, Brand OEX, Description OEX Starter Motor 12V 11Th CW Bosch Style, Flange Diameter 82.5mm, Mount Hole Diameter 11, Number of Teeth 11, Pinion at Rest 23mm, Power Rating 2.5kW.

OEX Starter Motor 12V 11Th CW Bosch Style. Part number BXS0175 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0175, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BOMAG BW100A, BOMAG BW100A 2000, BOMAG BW100A 2001, BOMAG BW100A 2002, DEUTZ BF4L1011F, DEUTZ BF4L1011F 1989. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking the part number BXS0175, Bosch style application, 12V specification, 11 tooth count, clockwise rotation, and all listed dimensions against the original starter before ordering.

FAQ

What is the part number for this starter motor?

The part number is BXS0175. For this listing, part number BXS0175 is the main reference point. Listed voltage is 12. Published fitment references include BOMAG BW100A, BOMAG BW100A 2000, BOMAG BW100A 2001. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number BXS0175 is the main reference point. Listed voltage is 12. Published fitment references include BOMAG BW100A, BOMAG BW100A 2000, BOMAG BW100A 2001. These details should still be checked against the original unit before ordering.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation. For this listing, part number BXS0175 is the main reference point. Listed voltage is 12. Published fitment references include BOMAG BW100A, BOMAG BW100A 2000, BOMAG BW100A 2001. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number BXS0175 is the main reference point. Listed voltage is 12. Published fitment references include BOMAG BW100A, BOMAG BW100A 2000, BOMAG BW100A 2001. These details should still be checked against the original unit before ordering.

What type of mounting does it use?

It uses a 2 hole starter mount, with 101mm mount centres A and 11mm mount hole diameter. For this listing, part number BXS0175 is the main reference point. Listed voltage is 12. Published fitment references include BOMAG BW100A, BOMAG BW100A 2000, BOMAG BW100A 2001. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS0175 is the main reference point. Listed voltage is 12. Published fitment references include BOMAG BW100A, BOMAG BW100A 2000, BOMAG BW100A 2001. These details should still be checked against the original unit before ordering.
