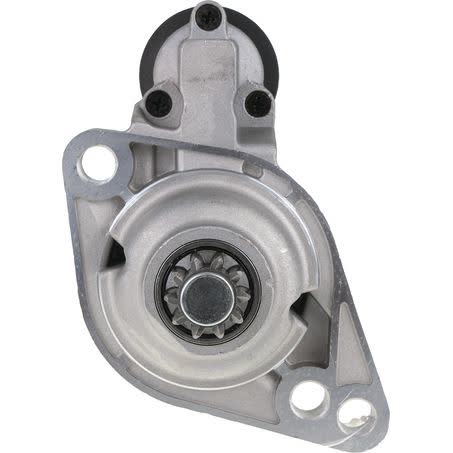

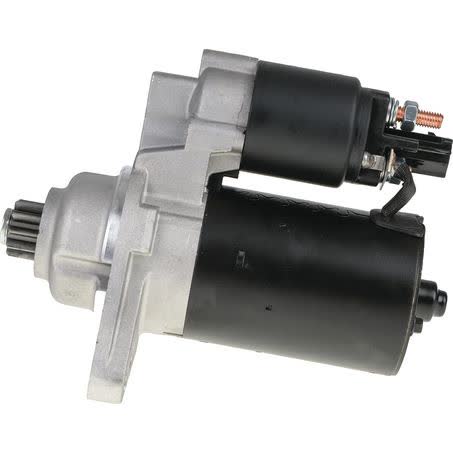

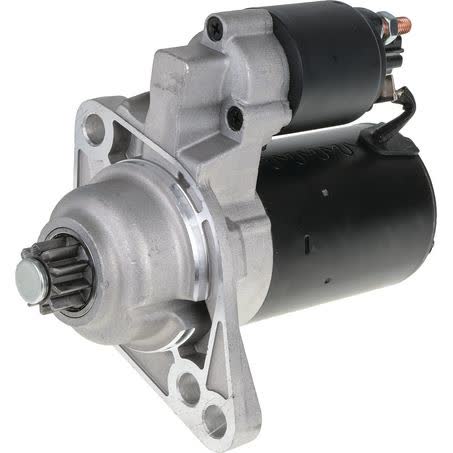

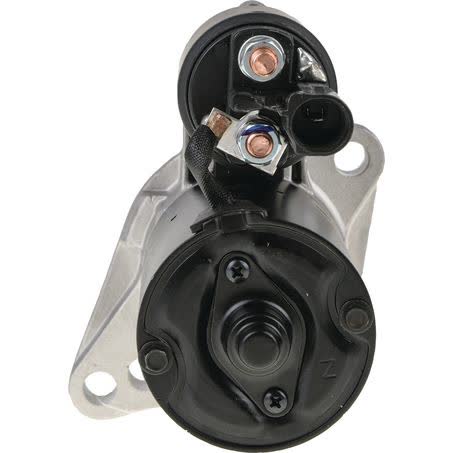

OEX Starter Motor 12V 10 Tooth CCW Bosch Style BXS0180

The OEX BXS0180 starter motor is a new 12V unit with 10 teeth, counter-clockwise rotation, and Bosch unit suitability. It is listed with a 2 hole starter mount, 111mm mount centres, a 76.2mm flange diameter, and a 1.1kW power rating.

Key dimensions matter on starter replacement, and this unit is specified with an overall length of 210mm, a nose cone length of 57mm, a 27.8mm pinion diameter, and a 53.3mm pinion at rest measurement. Those figures are important when checking physical clearance and mounting compatibility before purchase.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, made in ISO certified factories, and backed by a comprehensive nationwide warranty. The listed warranty for this starter motor is 3 years for passenger applications and 1 year for commercial applications.

Key Features

• New starter motor
• 12V electrical system
• 10 tooth pinion
• CCW rotation
• Bosch style / suits Bosch unit make
• 2 hole starter mount

Specifications

• Part number: BXS0180
• Brand: OEX
• Type: Starter motor
• Voltage: 12V
• Power rating: 1.1kW
• Rotation: CCW
• Number of teeth: 10
• Starter mount type: 2 hole

Fitment guidance

• Listed as suitable for Bosch unit make.
• Fitment application data includes Audi A3, Audi TT, Skoda Octavia, Skoda Rapid, Skoda Superb, Skoda Yeti, Volkswagen Golf, and Volkswagen Passat.
• Sample application years shown include Audi A3 2006 to 2013, Audi TT 2008 to 2009, Skoda Octavia 2007 to 2013, Skoda Rapid 2012 to 2014, and Volkswagen Golf 2004 to 2013.
• Fitment should be checked against the vehicle application and the part number BXS0180 before ordering.

Application and Buying Notes

Starter motors need to match more than just voltage, so confirm the 12V specification, 10 tooth pinion, and CCW rotation before buying. The listed 1.1kW power rating and 2 hole mount type are useful checks, but they should be matched with the existing starter and vehicle application to avoid a wrong fit.

Physical dimensions are just as important as the electrical details. This unit is listed with 111mm mount centres, a 76.2mm flange diameter, 57mm nose cone length, 210mm overall length, 27.8mm pinion diameter, and 53.3mm pinion at rest, so compare those measurements with the removed part where access allows.

Because this starter is described as Bosch style and suits Bosch unit make, the safest approach is to confirm the original starter details, the part number BXS0180, and the vehicle application together. That is especially important on vehicles where similar-looking starters can differ by rotation, tooth count, or mounting arrangement.

The warranty listed for this product is 3 years for passenger use and 1 year for commercial use. Warranty terms are helpful, but they do not replace fitment checking, particularly when the vehicle is from the Audi, Skoda, or Volkswagen application groups shown here.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0180 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 111mm, Nose Cone Length 57mm, Overall Length 210mm, Pinion Diameter 27.8mm, Rotation CCW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXS0180, Brand OEX, Description OEX Starter Motor 12V 10Th CCW Bosch Style, Flange Diameter 76.2mm, Mount Hole Diameter 12.5, Number of Teeth 10, Pinion at Rest 53.3mm, Power Rating 1.1kW.

OEX Starter Motor 12V 10Th CCW Bosch Style. Part number BXS0180 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0180, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI A3, AUDI A3 2006, AUDI A3 2007, AUDI A3 2008, SKODA OCTAVIA, SKODA OCTAVIA 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching the part number BXS0180, Bosch unit make suitability, 12V specification, 10 tooth count, CCW rotation, and all mounting dimensions against the vehicle application before purchase.

FAQ

Is this starter motor new or reconditioned?

This OEX starter motor is listed as new. For this listing, part number BXS0180 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2006, AUDI A3 2007. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number BXS0180 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2006, AUDI A3 2007. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 10 teeth. For this listing, part number BXS0180 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2006, AUDI A3 2007. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is listed as CCW, which means counter-clockwise rotation. For this listing, part number BXS0180 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2006, AUDI A3 2007. These details should still be checked against the original unit before ordering.

Which unit make is it suited to?

It is listed as suitable for Bosch unit make and described as Bosch style. For this listing, part number BXS0180 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2006, AUDI A3 2007. These details should still be checked against the original unit before ordering.

What warranty is listed for this part?

The listed warranty is 3 years for passenger applications and 1 year for commercial applications. For this listing, part number BXS0180 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2006, AUDI A3 2007. These details should still be checked against the original unit before ordering.
