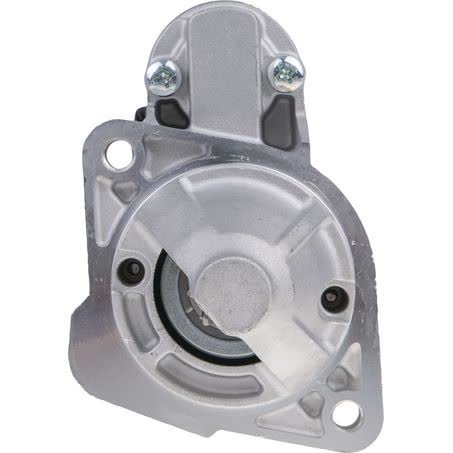

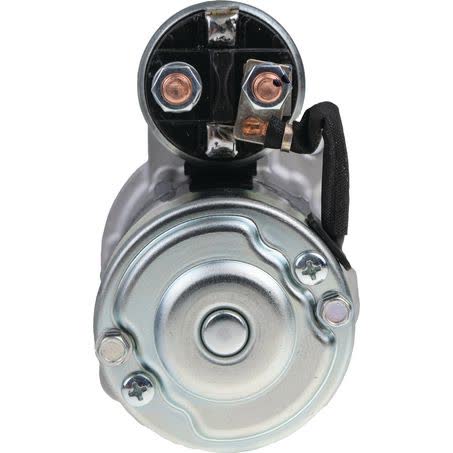

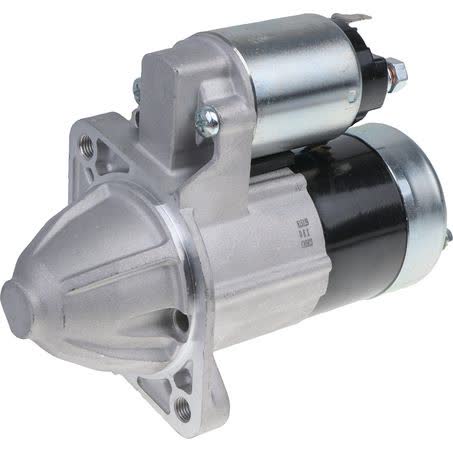

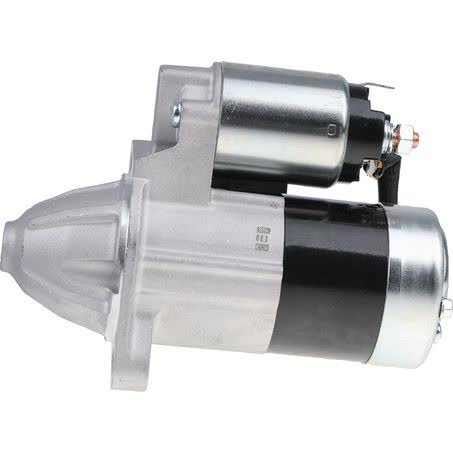

OEX Starter Motor 12V 8 Tooth CW Mitsubishi Style MXS2082

The OEX Starter Motor MXS2082 is a new 12V unit with clockwise (CW) rotation and an 8 tooth pinion, listed as Mitsubishi style and suited to Mitsubishi applications. It is a 2 hole starter motor with a 1kW power rating, 74mm flange diameter and M10 x 1.25 mount hole size.

Key dimensions matter when matching a starter motor, and this unit measures 195mm overall length, 52mm nose cone length, 106mm mount centres A and 28.5mm pinion diameter. The pinion at rest is 15mm, and the unit weighs 2.8kg.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with supply from ISO certified factories. The listed warranty is 3 years for passenger use and 1 year for commercial use, which gives a clear reference point when selecting the correct replacement.

As a rotating electrical component, this starter motor is intended for buyers who need a direct replacement style unit with matching voltage, rotation, mounting and pinion details. Confirming the part number MXS2082 and the physical measurements before purchase is the safest way to avoid delays and unnecessary returns.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 8 tooth pinion
• 2 hole starter mount
• New unit
• Mitsubishi style application

Specifications

• Brand: OEX
• Product type: Starter motor
• Part No.: MXS2082
• Voltage: 12V
• Rotation: CW
• Number of teeth: 8
• Power rating: 1kW
• Starter mount type: 2 hole

Fitment guidance

• MAZDA: 2, 2 2003, 2 2004, 2 2005, 2 2006, plus other listed applications

Application and Buying Notes

This starter motor should be checked against the original unit before ordering, especially the part number MXS2082, the 12V system requirement and the clockwise rotation. A starter with the correct voltage but the wrong rotation, tooth count or mount pattern will not be a suitable replacement.

The physical dimensions are just as important as the electrical details. Compare the 106mm mount centres A, 74mm flange diameter, 52mm nose cone length, 195mm overall length and M10 x 1.25 mount hole size with the existing starter motor or the vehicle application data.

The listed 8 tooth pinion and 28.5mm pinion diameter are key compatibility points for engagement with the ring gear. The pinion at rest measurement of 15mm and the 2 hole mount type can also help confirm you are looking at the correct style unit.

Although the unit is described as Mitsubishi style and suits Mitsubishi, no specific model list is provided here. If the original starter has a visible label, use MXS2082 and the printed dimensions together rather than relying on appearance alone.

For vehicles used in passenger and commercial roles, the warranty differs at 3 years passenger and 1 year commercial. That makes it worth confirming how the vehicle is used before purchase, along with whether the application is dry clutch, as listed.

Starter motors are straightforward parts, but the wrong match can create fitting issues, slow crank complaints or no engagement at all. Matching the starter mount type, tooth count, rotation and overall length gives you the best chance of ordering the right unit first time.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2082 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 106mm, Nose Cone Length 52mm, Overall Length 195mm, Pinion Diameter 28.5mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 2.8kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2082, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 74mm, Mount Hole Diameter M10 x 1.25, Number of Teeth 8, Pinion at Rest 15mm, Power Rating 1kW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS2082 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2082, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Please confirm fitment using the part number MXS2082, the 12V CW specification, the 8 tooth pinion, the 2 hole mount type and the listed dimensions before buying.

FAQ

What is the part number for this starter motor?

The listed part number is MXS2082. For this listing, part number MXS2082 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 2, MAZDA 2 2003, MAZDA 2 2004. These details should still be checked against the original unit before ordering.

Is this a 12V starter motor?

Yes. The voltage is listed as 12V. For this listing, part number MXS2082 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 2, MAZDA 2 2003, MAZDA 2 2004. These details should still be checked against the original unit before ordering.

What direction does it rotate?

It is listed as clockwise (CW) rotation. For this listing, part number MXS2082 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 2, MAZDA 2 2003, MAZDA 2 2004. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 8 teeth. For this listing, part number MXS2082 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 2, MAZDA 2 2003, MAZDA 2 2004. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number MXS2082 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 2, MAZDA 2 2003, MAZDA 2 2004. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2082 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA 2, MAZDA 2 2003, MAZDA 2 2004. These details should still be checked against the original unit before ordering.
