Sanden Air Conditioning Compressor 12V Ear Mount SD7H15SHD CXS4082

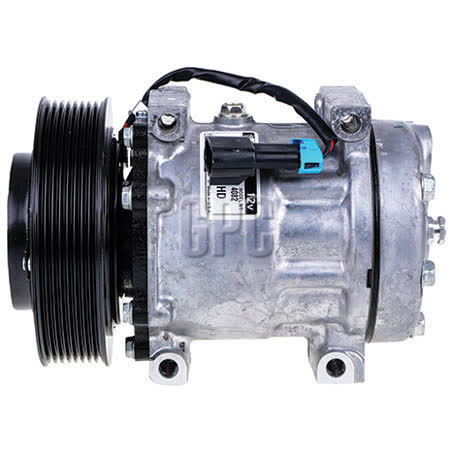

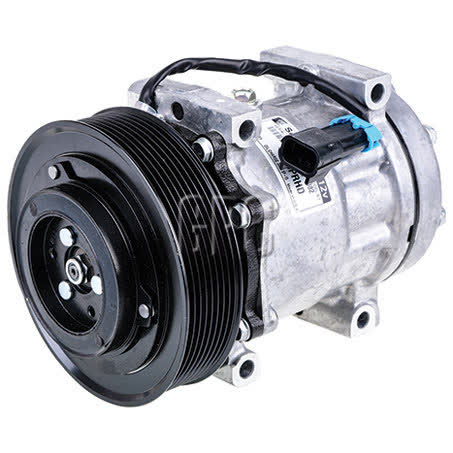

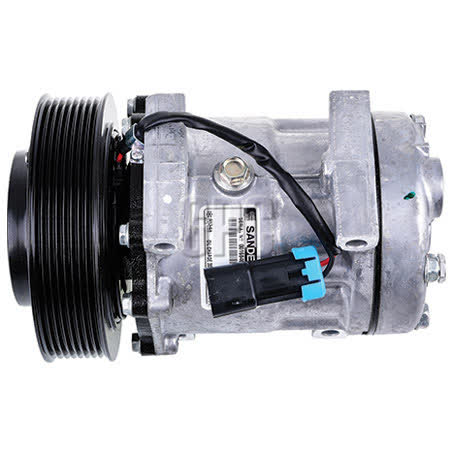

The Sanden Air Conditioning Compressor SD7H15SHD is a 12V compressor supplied under part number CXS4082. It is described as an ear mount unit with direct mount fitting type, an 8 groove pulley section, and a 140mm clutch diameter.

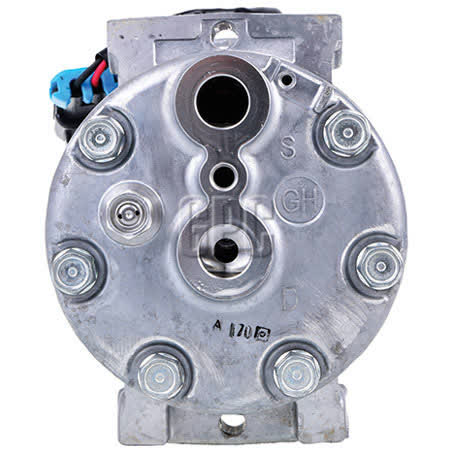

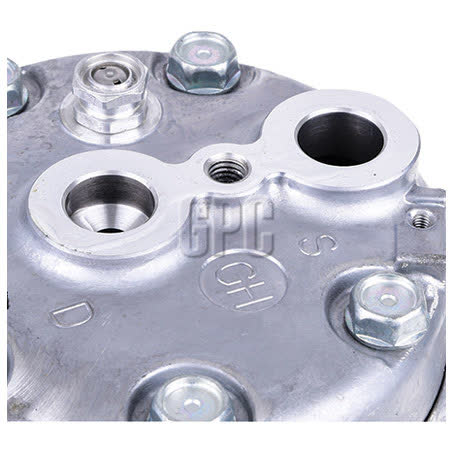

This compressor is listed with a horizontal special pad fitting type, GH head code, rubber armature type, and a gauge line of 61.55mm. The oil specification is SP15 and rotation is clockwise only, so both the mounting style and rotation direction need to be checked before ordering.

A one year warranty is listed for this compressor. Oil capacity is stated at 300ml, and there is no dust cover included. These details matter when matching the replacement to the vehicle’s existing air conditioning setup and service requirements.

Key Features

• 12V Sanden air conditioning compressor
• SD7H15SHD series
• Part number CXS4082
• Direct mount ear mount style
• 8 groove pulley section
• 140mm clutch diameter

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Voltage: 12V
• Unit of measure: each
• Compressor mounting: Direct mount
• Series: SD7H15SHD
• Part no.: CXS4082
• Pulley section: 8 groove

Verified fitment

• Freightliner Columbia CL112

Application and Buying Notes

Before ordering, compare the part number CXS4082, the SD7H15SHD series, and the 12V specification against the compressor already fitted to the vehicle. The mounting style is listed as direct mount with an ear mount design, and the fitting type is horizontal special pad, so the physical layout needs to match your existing bracket and hose arrangement.

The pulley section is 8 groove and the clutch diameter is 140mm, which are useful checks when confirming belt alignment and front-end spacing. If the current unit uses a different pulley count, clutch size, or rotation direction, it is not a like-for-like match.

The listed fitment reference is Freightliner Columbia CL112. If you are working on a Freightliner Columbia application, check the vehicle details carefully against the existing compressor label, mounting face, hose connections, and electrical connection before purchase. When any of those details differ, the safest approach is to verify the match by part number and compressor configuration rather than relying on model name alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4082 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Pulley Section 8 Groove, Suits Unit Make Sanden, Note Oil Type: SP15, Rotation CW only., Gauge Line 61.55mm, Dust Cover Y/N No.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS4082, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Ear Mount SD7H15SHD, Clutch Diameter 140mm, Fitting Type Horizontal Special Pad, Series SD7H15SHD, Voltage 12, Armature Type Rubber, Oil Capacity 300ml.

Sanden Air Conditioning Compressor 12V Ear Mount SD7H15SHD. Part number CXS4082 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4082, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FREIGHTLINER COLUMBIA, FREIGHTLINER COLUMBIA 2004, FREIGHTLINER COLUMBIA 2005, FREIGHTLINER COLUMBIA 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number CXS4082, the SD7H15SHD series, 12V electrical specification, 8 groove pulley, 140mm clutch diameter, and the listed Freightliner Columbia CL112 application before ordering.

FAQ

What vehicle application is listed for this compressor?

The listed application is Freightliner Columbia CL112. For this listing, part number CXS4082 is the main reference point. Listed voltage is 12. Published fitment references include FREIGHTLINER COLUMBIA, FREIGHTLINER COLUMBIA 2004, FREIGHTLINER COLUMBIA 2005. These details should still be checked against the original unit before ordering.

What is the part number for this compressor?

The part number listed is CXS4082. For this listing, part number CXS4082 is the main reference point. Listed voltage is 12. Published fitment references include FREIGHTLINER COLUMBIA, FREIGHTLINER COLUMBIA 2004, FREIGHTLINER COLUMBIA 2005. These details should still be checked against the original unit before ordering.

What voltage does this compressor use?

It is a 12V compressor. For this listing, part number CXS4082 is the main reference point. Listed voltage is 12. Published fitment references include FREIGHTLINER COLUMBIA, FREIGHTLINER COLUMBIA 2004, FREIGHTLINER COLUMBIA 2005. These details should still be checked against the original unit before ordering.

What pulley and clutch details are listed?

The compressor is listed with an 8 groove pulley section and a 140mm clutch diameter. For this listing, part number CXS4082 is the main reference point. Listed voltage is 12. Published fitment references include FREIGHTLINER COLUMBIA, FREIGHTLINER COLUMBIA 2004, FREIGHTLINER COLUMBIA 2005. These details should still be checked against the original unit before ordering.

What oil type should be used?

The listed oil type is SP15, with an oil capacity of 300ml. For this listing, part number CXS4082 is the main reference point. Listed voltage is 12. Published fitment references include FREIGHTLINER COLUMBIA, FREIGHTLINER COLUMBIA 2004, FREIGHTLINER COLUMBIA 2005. These details should still be checked against the original unit before ordering.

Does the compressor rotate in either direction?

No. Rotation is listed as clockwise only. For this listing, part number CXS4082 is the main reference point. Listed voltage is 12. Published fitment references include FREIGHTLINER COLUMBIA, FREIGHTLINER COLUMBIA 2004, FREIGHTLINER COLUMBIA 2005. These details should still be checked against the original unit before ordering.
