OEX Starter Motor 24V 11 Tooth CW Valeo VXS939

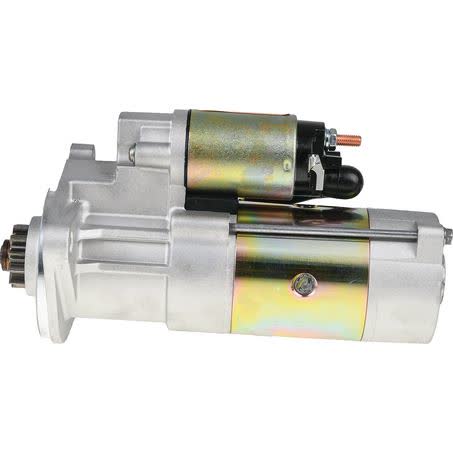

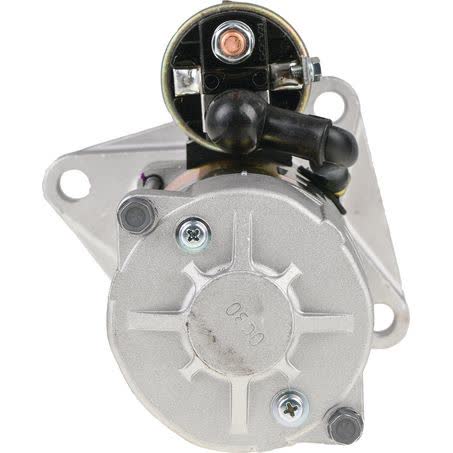

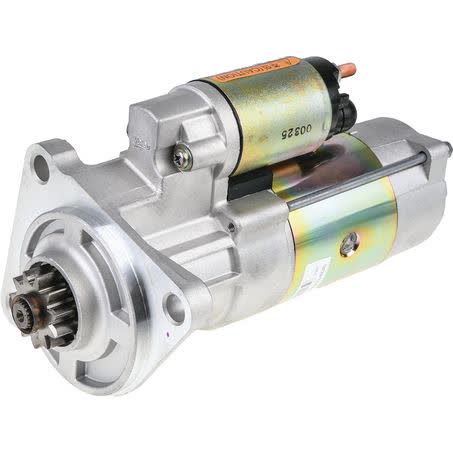

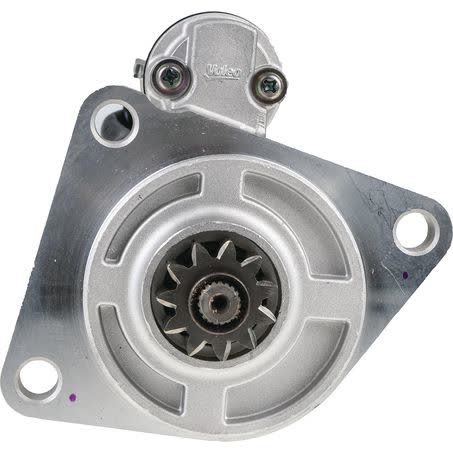

The OEX Starter Motor VXS939 is a new 24V unit with 11 teeth and clockwise rotation, suited to Valeo applications. It is a 5kW starter motor with a 3 hole mount type, and the key dimensions provided include 145mm mount centres A, 116mm mount centres B, 96mm mount centres C, and a 100mm flange diameter.

For fitment checking, the important identifiers are the part number VXS939, the Valeo unit make, 24V voltage, 11 tooth pinion, and CW rotation. The pinion diameter is 41.5mm, the pinion at rest is 30mm, and the mount hole diameter is 14mm, so this is a starter that needs careful comparison with the existing unit before ordering.

OEX states the product is made using OE components for fit and function, and the brand sources products from original equipment manufacturers and aftermarket suppliers. It is also described as coming from ISO9001 certified factories and is backed by a one year warranty, giving buyers a clear reference point for replacement planning and parts verification.

Key Features

• 24V starter motor
• 11 tooth pinion
• Clockwise rotation
• 5kW power rating
• 3 hole starter mount
• New unit

Specifications

• Part No.: VXS939
• Brand: OEX
• Product type: Starter Motor
• Voltage: 24V
• Number of teeth: 11
• Rotation: CW
• Starter mount type: 3 hole
• Mount centres A: 145mm

Application and Buying Notes

Before ordering, compare the part number VXS939 and the unit make Valeo with the starter already on the vehicle. The critical matching points here are 24V, 11 teeth, clockwise rotation, and the 3 hole mount arrangement, because those details must align with the existing application.

The mounting dimensions are just as important as the electrical rating. Check the 145mm, 116mm, and 96mm mount centres, the 100mm flange diameter, and the 14mm mount hole diameter against the original starter to avoid a mismatch at installation.

The 5kW power rating and 41.5mm pinion diameter are useful reference points when comparing replacements, but they do not replace a physical check of the old unit. If there is any uncertainty, the safest approach is to verify the removed starter against the listed measurements before fitment.

This is a new starter motor, not a remanufactured unit, and it carries a one year warranty. That gives you a straightforward replacement option, but the correct application still depends on matching the application details supplied for Valeo and the listed mount and gear specifications.

If you are matching from an existing vehicle rather than a part label, measure the mount centres and inspect the pinion count and rotation direction carefully. A 24V starter with 11 teeth and CW rotation is specific enough that a quick visual check can prevent the wrong part being fitted.

For a parts counter or workshop order, the best practice is to confirm the starter body shape, mount pattern, and electrical system voltage before purchase. The OEX unit is identified as a 24V, 11 tooth, CW starter with a 3 hole mount, so those are the first checks to complete.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS939 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 145mm, Mount Centres C 96mm, Number of Teeth 11, Pinion Diameter 41.5mm, Rotation CW, Voltage 24, Starter Mount Type 3 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. VXS939, Brand OEX, Description OEX Starter Motor 24V 11Th CW Valeo, Flange Diameter 100mm, Mount Centres B 116mm, Mount Hole Diameter 14, Pinion at Rest 30mm, Power Rating 5kW.

OEX Starter Motor 24V 11Th CW Valeo. Part number VXS939 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS939, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by matching the part number VXS939, the Valeo application, 24V voltage, 11 tooth pinion, CW rotation, and the listed mounting dimensions before ordering or installing.

FAQ

What is the part number for this starter motor?

The part number is VXS939. For this listing, part number VXS939 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 24V starter motor. For this listing, part number VXS939 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number VXS939 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

What rotation direction does it use?

It is clockwise rotation, listed as CW. For this listing, part number VXS939 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number VXS939 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.

What warranty is provided?

It carries a one year warranty. For this listing, part number VXS939 is the main reference point. Listed voltage is 24. These details should still be checked against the original unit before ordering.
