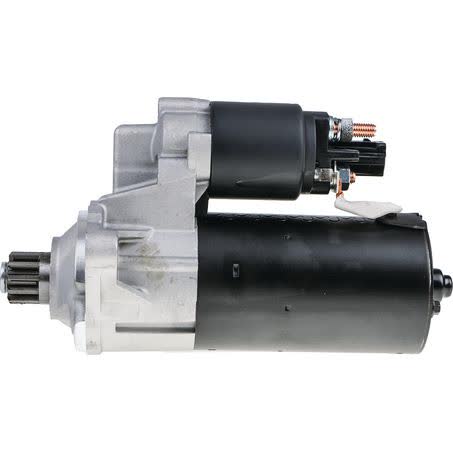

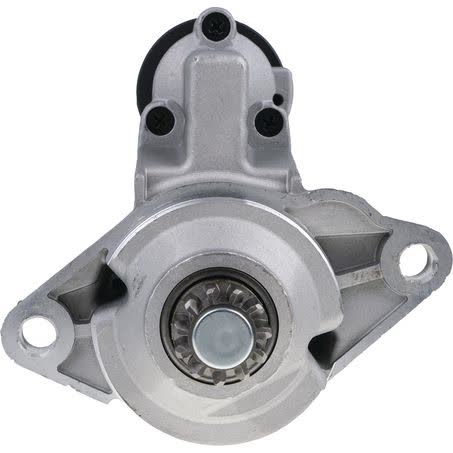

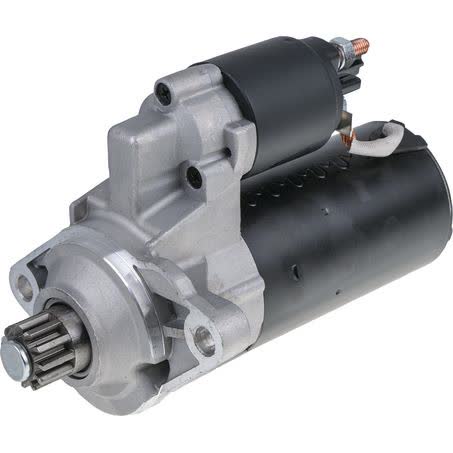

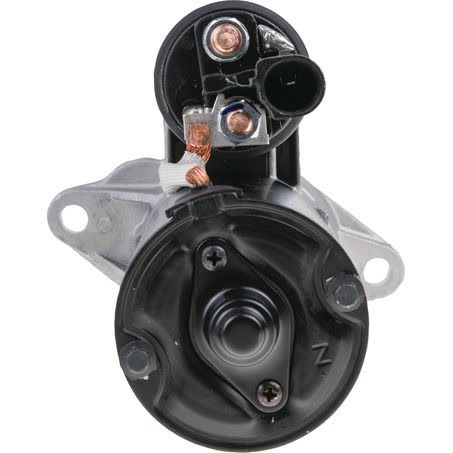

OEX Starter Motor 12V 11 Tooth CCW Bosch Style BXS0181

The OEX Starter Motor BXS0181 is a 12V starter motor with 11 teeth, counter-clockwise rotation, and a Bosch-style configuration. It is supplied new, not remanufactured, and is listed with a 2kW power rating, making the key identification points easy to match before ordering.

Physical dimensions matter with starters, and this unit is specified with 119mm mount centres, a 76mm flange diameter, an overall length of 243mm, and a 29mm pinion diameter. The pinion at rest is 42mm, and the starter mount type is 2 hole.

This starter is listed for Bosch unit make applications and is noted as not interchangeable with BXS4020. The warranty is 3 years for passenger use and 1 year for commercial use, so it is worth checking both the electrical and mounting details carefully against the original unit before purchase.

Key Features

• 12V starter motor
• 11 tooth pinion
• Counter-clockwise rotation
• Bosch style unit
• New starter motor
• 2 hole starter mount

Specifications

• Voltage: 12V
• Power rating: 2kW
• Number of teeth: 11
• Rotation: CCW
• Mount centres A: 119mm
• Overall length: 243mm
• Flange diameter: 76mm
• Pinion diameter: 29mm

Fitment guidance

• Explicit fitment data supplied includes Skoda Superb applications and Volkswagen Passat applications.
• Fitment samples shown include Skoda Superb 2010 to 2015 and Volkswagen Passat 2005 to 2014.
• Confirm the starter on the vehicle matches the Bosch-style, 12V, 11 tooth, CCW configuration before ordering.

Application and Buying Notes

For a starter motor, the most useful checkpoints are the electrical rating, rotation, tooth count, and mounting dimensions. This OEX unit is 12V, 2kW, CCW, with 11 teeth, 119mm mount centres, and a 76mm flange diameter, so it should only be considered where those details align with the original starter.

The part number is BXS0181, and that is the safest identifier to compare first if you are matching an existing unit. The listing also notes the unit is not interchangeable with BXS4020, which is important if you are comparing similar Bosch-style starters that may look alike but differ in fitment or mounting.

The dry clutch note, 29mm pinion diameter, 42mm pinion at rest measurement, and 2 hole mount type are all practical checks that can prevent a mismatch. If the original starter differs in any of those areas, it should be treated as a separate application even if the vehicle model appears similar.

Warranty coverage is stated as 3 years for passenger use and 1 year for commercial use. That warranty does not replace fitment checking, so it is still important to confirm the starter’s shape, pinion count, rotation, and measurements against the removed unit or vehicle requirements before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0181 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 119mm, Overall Length 243mm, Pinion Diameter 29mm, Rotation CCW, Voltage 12, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. BXS0181, Brand OEX, Description OEX Starter Motor 12V 11Th CCW Bosch Style, Flange Diameter 76mm, Number of Teeth 11, Pinion at Rest 42mm, Power Rating 2kW, Suits Unit Make Bosch, Note Unit not interchangable with BXS4020.

OEX Starter Motor 12V 11Th CCW Bosch Style. Part number BXS0181 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0181, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include SKODA SUPERB, SKODA SUPERB 2010, SKODA SUPERB 2011, SKODA SUPERB 2012, VOLKSWAGEN PASSAT, VOLKSWAGEN PASSAT 2005. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking the part number BXS0181, Bosch-style application details, 12V specification, 11 tooth CCW configuration, and the listed mounting and dimension measurements against the original starter before purchase.

FAQ

What is the part number for this starter motor?

The part number is BXS0181. For this listing, part number BXS0181 is the main reference point. Listed voltage is 12. Published fitment references include SKODA SUPERB, SKODA SUPERB 2010, SKODA SUPERB 2011. These details should still be checked against the original unit before ordering.

What voltage and rotation does it use?

It is a 12V starter motor with counter-clockwise (CCW) rotation. For this listing, part number BXS0181 is the main reference point. Listed voltage is 12. Published fitment references include SKODA SUPERB, SKODA SUPERB 2010, SKODA SUPERB 2011. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number BXS0181 is the main reference point. Listed voltage is 12. Published fitment references include SKODA SUPERB, SKODA SUPERB 2010, SKODA SUPERB 2011. These details should still be checked against the original unit before ordering.

What are the main mounting measurements?

The listed measurements are 119mm mount centres, a 76mm flange diameter, and a 2 hole starter mount. For this listing, part number BXS0181 is the main reference point. Listed voltage is 12. Published fitment references include SKODA SUPERB, SKODA SUPERB 2010, SKODA SUPERB 2011. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number BXS0181 is the main reference point. Listed voltage is 12. Published fitment references include SKODA SUPERB, SKODA SUPERB 2010, SKODA SUPERB 2011. These details should still be checked against the original unit before ordering.

What vehicles are shown in the fitment data?

The supplied fitment data includes Skoda Superb applications and Volkswagen Passat applications, with sample years shown from 2005 to 2015 depending on model. For this listing, part number BXS0181 is the main reference point. Listed voltage is 12. Published fitment references include SKODA SUPERB, SKODA SUPERB 2010, SKODA SUPERB 2011. These details should still be checked against the original unit before ordering.
