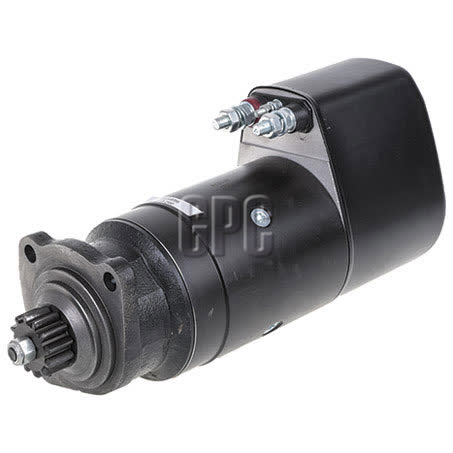

OEX Starter Motor 24V 12T CW Bosch Style BXS9056

The OEX Starter Motor BXS9056 is a new 24V unit with 12 teeth, clockwise rotation and a Bosch style fitment profile. It is listed with a 6.6kW power rating, a 3-hole starter mount type, and an OEM number of 0001417053, making those details the key checkpoints when confirming the correct replacement.

Measured dimensions matter with starters, and this unit is specified with 127mm mount centres A, 90mm mount centres C and B, a 89mm flange diameter, 13mm mount hole diameter, 401mm overall length and a 46mm pinion diameter. The pinion at rest is 40mm, and the unit is suitable for wet or dry clutch applications.

The listed fitment information includes Mack G330 applications, but the safest buying method is still to match the part number BXS9056, the OEM number 0001417053, the 24V electrical requirement and the physical mounting measurements before ordering. That approach helps avoid confusion where similar-looking starters differ in mount pattern, rotation or pinion size.

Key Features

• 24V starter motor
• 12-tooth pinion
• Clockwise rotation
• Bosch style / suits Bosch unit make
• 3-hole starter mount
• New unit

Specifications

• Voltage: 24V
• Number of teeth: 12
• Rotation: CW
• Power rating: 6.6kW
• Starter mount type: 3 hole
• OEM number: 0001417053
• Part number: BXS9056
• Flange diameter: 89mm

Verified fitment

• Mack G330
• Mack G330 1992
• Mack G330 1993
• Mack G330 1994
• Mack G330 1995

Application and Buying Notes

Before buying, confirm the electrical system is 24V and check that your existing starter matches the clockwise rotation, 12-tooth pinion and Bosch style configuration. The part number BXS9056 and OEM number 0001417053 are the strongest reference points for comparison when the old unit is available for cross-checking.

The physical dimensions are just as important as the electrical rating. Compare the 3-hole mount type, 127mm mount centres A, 90mm mount centres B and C, 89mm flange diameter, 13mm mount hole diameter and 401mm overall length against the removed starter, as small differences can affect alignment and installation.

The 6.6kW power rating, 46mm pinion diameter and 40mm pinion at rest help distinguish this starter from other Bosch style units that may look similar but are not interchangeable. Where access allows, check the old starter’s label and the mounting face before ordering rather than relying on appearance alone.

OEX lists this as a new unit and backs the brand with a 3yr Passenger and 1yr Commercial warranty. Warranty terms are useful, but they do not confirm fitment, so the practical checks remain the part number, OEM number, voltage, rotation and mounting dimensions.

If you are replacing a starter on a Mack G330, use the model and year reference as a guide only and still compare the starter physically before fitting. Starters with the same application family can still vary by mount centres, pinion specification or clocking, and those differences matter at installation time.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS9056 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 12, Pinion at Rest 40mm, Power Rating 6.6kW, Suits Unit Make Bosch, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, OEM Number 0001417053, Product Group 1 ROTATING ELECTRICAL, Part No. BXS9056, Brand OEX, Description OEX Starter Motor 24V 12Th CW Bosch Style, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 13, Overall Length 401mm.

OEX Starter Motor 24V 12Th CW Bosch Style. Part number BXS9056 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS9056, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility by matching part number BXS9056, OEM number 0001417053, 24V voltage, 12-tooth CW configuration and the stated mounting dimensions against your existing starter or vehicle application details before purchase.

FAQ

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number BXS9056 is the main reference point. Listed voltage is 24. Published fitment references include MACK G330, MACK G330 1992, MACK G330 1993. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 24V starter motor. For this listing, part number BXS9056 is the main reference point. Listed voltage is 24. Published fitment references include MACK G330, MACK G330 1992, MACK G330 1993. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is BXS9056. For this listing, part number BXS9056 is the main reference point. Listed voltage is 24. Published fitment references include MACK G330, MACK G330 1992, MACK G330 1993. These details should still be checked against the original unit before ordering.

What OEM number is listed?

The listed OEM number is 0001417053. For this listing, part number BXS9056 is the main reference point. Listed voltage is 24. Published fitment references include MACK G330, MACK G330 1992, MACK G330 1993. These details should still be checked against the original unit before ordering.

What clutch types is it suitable for?

It is listed as suitable for wet or dry clutch applications. For this listing, part number BXS9056 is the main reference point. Listed voltage is 24. Published fitment references include MACK G330, MACK G330 1992, MACK G330 1993. These details should still be checked against the original unit before ordering.

What fitment is provided for this starter?

The supplied fitment information includes Mack G330 applications, including 1992, 1993, 1994 and 1995 model-year references. For this listing, part number BXS9056 is the main reference point. Listed voltage is 24. Published fitment references include MACK G330, MACK G330 1992, MACK G330 1993. These details should still be checked against the original unit before ordering.
