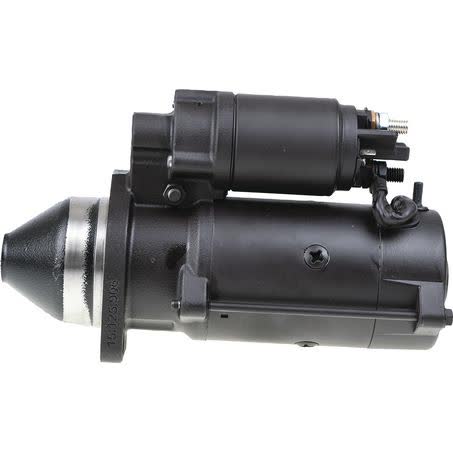

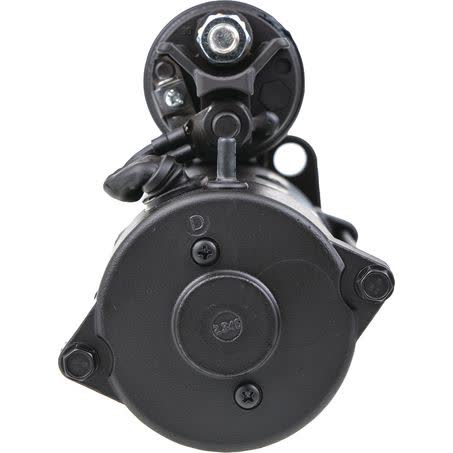

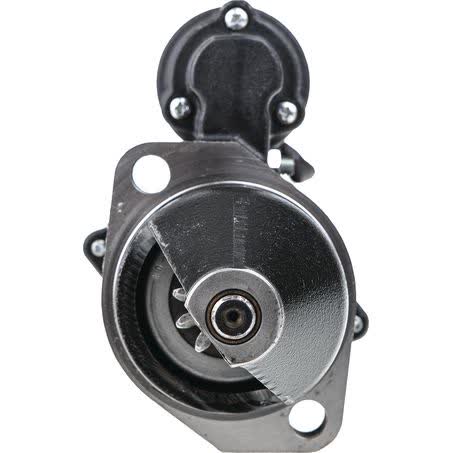

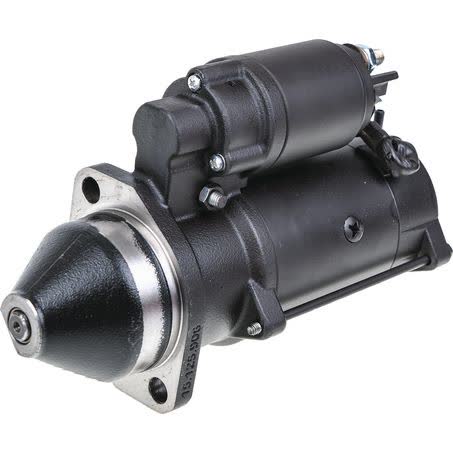

Mahle Starter Motor 24V 11 Tooth CW 3.5KW MS726

The Mahle MS726 is a new starter motor built as an OE product for 24V applications, with clockwise rotation and 11 teeth on the pinion. It is listed as a starter motor with a 3.5kW power rating, 2-hole mounting, and a reduction gear transmission type, so the physical mounting and drive arrangement are important checks before purchase.

Key dimensions are provided for identification and comparison: overall length is 277mm, flange diameter is 82.5mm, the mount hole diameter is 13.5mm, and the mount centre-to-centre measurement is 105mm. The pinion diameter is 41mm, the pinion at rest is 21mm, and the stated flywheel depth is 24.0, which are all useful reference points when matching the starter to the application.

This starter is identified as Mahle part number MS726 and is described as suitable for Hatz applications, including HATZ 2L41C, HATZ 2M41, HATZ 3L41C, HATZ 3M41, HATZ 3M43, HATZ 4L41C, HATZ 4L42C, HATZ 4M41, HATZ 4M42, and HATZ 4M43. Because starter fitment depends on the exact engine and mounting arrangement, the part number and dimensions should be checked carefully against the existing unit.

The unit is new, supplied each, and carries a one year warranty. For buyers comparing replacements, the combination of 24V voltage, 11-tooth pinion, clockwise rotation, and 3.5kW rating makes this a very specific match rather than a universal starter motor.

Key Features

• Mahle OE product
• New starter motor
• 24V electrical system
• Clockwise rotation
• 11-tooth pinion
• 3.5kW power rating

Specifications

• Brand: Mahle
• Product type: Starter motor
• Part No.: MS726
• Voltage: 24V
• Rotation: CW
• Number of teeth: 11
• Power rating: 3.5kW
• Starter mount type: 2 hole

Confirmed application guidance

• HATZ 2L41C
• HATZ 2M41
• HATZ 3L41C
• HATZ 3M41
• HATZ 3M43
• HATZ 4L41C
• HATZ 4L42C
• HATZ 4M41

Application and Buying Notes

Before ordering, compare the starter on the vehicle with the MS726 details: 24V voltage, clockwise rotation, 11 teeth, 2-hole mount, 105mm mount centre-to-centre, and 13.5mm mount hole diameter. These are the most practical checkpoints for confirming whether the replacement matches the existing unit and the engine installation.

The listed Hatz coverage includes 2L41C, 2M41, 3L41C, 3M41, 3M43, 4L41C, 4L42C, 4M41, 4M42, and 4M43. Even within the same engine family, starter fitment can vary by mounting pattern, pinion arrangement, and flywheel engagement, so it is best to verify the exact application and compare the old starter’s dimensions before fitting.

The starter is a reduction gear type with a 3.5kW rating, which makes the electrical specification clear, but it still needs the correct physical interface to work properly. Check the overall length of 277mm, flange diameter of 82.5mm, pinion diameter of 41mm, and the stated flywheel depth of 24.0 against the original part or machine specification.

As with any starter motor replacement, use the part number MS726 as the primary reference where possible. If the existing unit is still available, matching the tag, mounting ear spacing, pinion tooth count, and rotation direction is the safest way to reduce the chance of ordering the wrong component.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS726 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Hole Diameter 13.5, Overall Length 277mm, Pinion Diameter 41mm, Rotation CW, Voltage 24, Mount Cnt to Cnt 105mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Transmission Type with reduction gear, Number of mounting bores 2, For flywheel depth 24.0, Packaging length 31.8, Packaging height 13.50, Product Group 2 STARTER MOTORS, Part No. MS726, Brand MAHLE, Description Mahle Starter Motor 24V 11Th CW.

Mahle Starter Motor 24V 11Th CW. Part number MS726 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS726, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HATZ 2L41C, HATZ 2L41C 2015, HATZ 2M41, HATZ 2M41 2015. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching Mahle part number MS726, 24V voltage, 11-tooth clockwise configuration, and the stated mounting and dimension details to the existing starter and engine application before purchase.

FAQ

What is the part number for this starter motor?

The part number is MS726. For this listing, part number MS726 is the main reference point. Listed voltage is 24. Published fitment references include HATZ 2L41C, HATZ 2L41C 2015, HATZ 2M41. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 24V starter motor. For this listing, part number MS726 is the main reference point. Listed voltage is 24. Published fitment references include HATZ 2L41C, HATZ 2L41C 2015, HATZ 2M41. These details should still be checked against the original unit before ordering.

How does this starter rotate?

It has clockwise rotation, listed as CW. For this listing, part number MS726 is the main reference point. Listed voltage is 24. Published fitment references include HATZ 2L41C, HATZ 2L41C 2015, HATZ 2M41. These details should still be checked against the original unit before ordering.

What are the key mounting details?

It uses a 2-hole starter mount, with 2 mounting bores, a 13.5mm mount hole diameter, and 105mm mount centre-to-centre. For this listing, part number MS726 is the main reference point. Listed voltage is 24. Published fitment references include HATZ 2L41C, HATZ 2L41C 2015, HATZ 2M41. These details should still be checked against the original unit before ordering.

Which engines are listed as compatible?

The listed applications are HATZ 2L41C, 2M41, 3L41C, 3M41, 3M43, 4L41C, 4L42C, 4M41, 4M42, and 4M43. For this listing, part number MS726 is the main reference point. Listed voltage is 24. Published fitment references include HATZ 2L41C, HATZ 2L41C 2015, HATZ 2M41. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

This starter motor is listed as new and carries a one year warranty. For this listing, part number MS726 is the main reference point. Listed voltage is 24. Published fitment references include HATZ 2L41C, HATZ 2L41C 2015, HATZ 2M41. These details should still be checked against the original unit before ordering.
