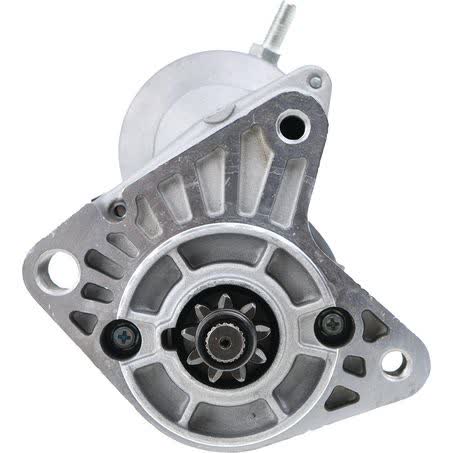

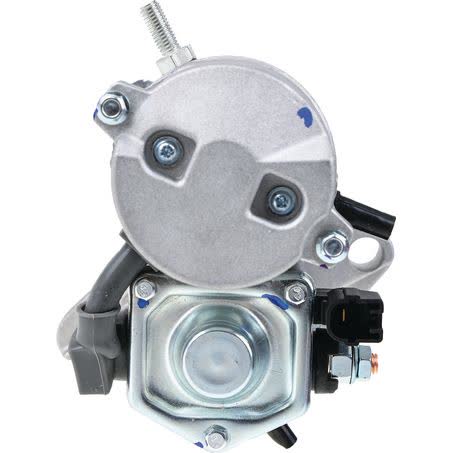

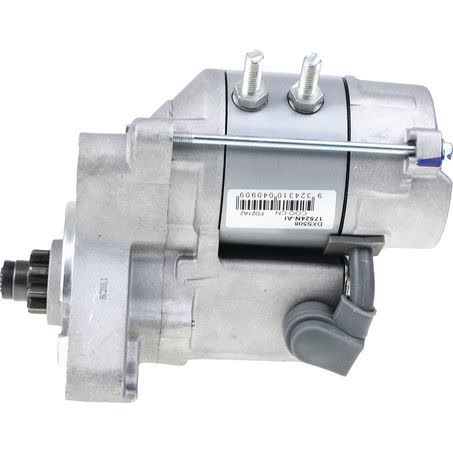

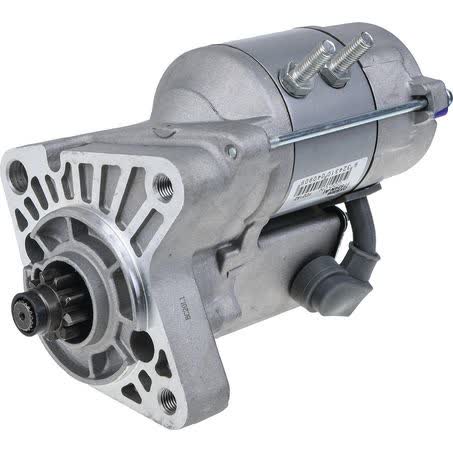

OEX Starter Motor 12V 9 Tooth Denso Style DXS508

The OEX Starter Motor DXS508 is a 12V starter motor in 9 tooth Denso style, supplied new and listed as a 3 hole starter mount type. It is rated at 1.4kW, has clockwise rotation, and uses a 74mm flange diameter with M10x1.25 / 13 mount hole diameter.

This unit is identified with part number DXS508 and is specified with mount centres of 117mm, 92mm and 87mm. The overall length is 190mm, the pinion diameter is 29mm, and the pinion at rest measures 20mm. Those dimensions are important when matching a replacement starter to the vehicle and the existing mounting arrangement.

OEX states its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with production from ISO certified factories. The starter is backed by a 3 year passenger and 1 year commercial warranty, and is supplied as each unit.

Fitment information supplied for this part includes Toyota applications, with preview listings covering Corolla, Estima Emina / Lucida, Tarago, Tercel and Town Ace SBV. The exact application still needs to be checked against the vehicle details and the part number before ordering, especially where starter layout and mounting dimensions must match exactly.

Key Features

• 12V starter motor
• 9 tooth Denso style
• New unit
• Clockwise rotation
• 3 hole starter mount type
• 1.4kW power rating

Specifications

• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.4kW
• Number of teeth: 9
• Suits unit make: Denso
• Rotation: CW
• Starter mount type: 3 hole

Known fitment preview

• Toyota Corolla
• Toyota Estima Emina / Lucida
• Toyota Tarago
• Toyota Tarago / Estima
• Toyota Tercel
• Toyota Town Ace SBV

Application and Buying Notes

When replacing a starter motor, the safest check is the part number and the physical dimensions. This unit is DXS508, built as a 12V, 9 tooth Denso style starter with a 3 hole mount, 74mm flange diameter and mount centres of 117mm, 92mm and 87mm. Those figures need to line up with the starter being replaced, because even a small difference in mounting or pinion arrangement can prevent correct installation.

The 1.4kW power rating, clockwise rotation and 29mm pinion diameter are also relevant when comparing alternatives. A starter that is close in appearance can still differ in rotation, tooth count, flange size or mount hole arrangement, so it is worth checking the removed unit and the application details side by side before purchase.

This starter is listed as new, not remanufactured, and is covered by a 3 year passenger / 1 year commercial warranty. For commercial use, the warranty term is shorter, so it is sensible to confirm the intended duty cycle before ordering. The unit weighs 3.9kg and is supplied each, which can help when checking freight handling or comparing like-for-like parts.

The Toyota fitment preview suggests this starter is used across several Toyota applications, including Corolla, Estima Emina / Lucida, Tarago, Tercel and Town Ace SBV. That is a useful guide, but the final check should always be made against the vehicle’s exact model, build details and the part number on the existing starter or replacement reference.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS508 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 117mm, Mount Centres C 92mm, Number of Teeth 9, Pinion at Rest 20mm, Power Rating 1.4kW, Suits Unit Make Denso, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. DXS508, Brand OEX, Description OEX Starter Motor 12V 9Th Denso Style, Flange Diameter 74mm, Mount Centres B 87mm, Mount Hole Diameter M10x1.25 / 13, Overall Length 190mm.

OEX Starter Motor 12V 9Th Denso Style. Part number DXS508 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS508, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA COROLLA, TOYOTA COROLLA 1978, TOYOTA COROLLA 1979, TOYOTA COROLLA 1980. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number DXS508 and checking the starter’s 12V, 9 tooth Denso style specification, 3 hole mount, mount centres, flange diameter and rotation against the vehicle application before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is DXS508. For this listing, part number DXS508 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA COROLLA, TOYOTA COROLLA 1978, TOYOTA COROLLA 1979. These details should still be checked against the original unit before ordering.

Is this a 12V starter motor?

Yes. The unit is specified as 12V. For this listing, part number DXS508 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA COROLLA, TOYOTA COROLLA 1978, TOYOTA COROLLA 1979. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 9 teeth. For this listing, part number DXS508 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA COROLLA, TOYOTA COROLLA 1978, TOYOTA COROLLA 1979. These details should still be checked against the original unit before ordering.

Is this starter new or remanufactured?

It is listed as new. For this listing, part number DXS508 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA COROLLA, TOYOTA COROLLA 1978, TOYOTA COROLLA 1979. These details should still be checked against the original unit before ordering.

What warranty is supplied with this starter?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS508 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA COROLLA, TOYOTA COROLLA 1978, TOYOTA COROLLA 1979. These details should still be checked against the original unit before ordering.

What Toyota applications are shown in the fitment preview?

The supplied fitment preview includes Toyota Corolla, Toyota Estima Emina / Lucida, Toyota Tarago, Toyota Tarago / Estima, Toyota Tercel and Toyota Town Ace SBV. For this listing, part number DXS508 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA COROLLA, TOYOTA COROLLA 1978, TOYOTA COROLLA 1979. These details should still be checked against the original unit before ordering.
