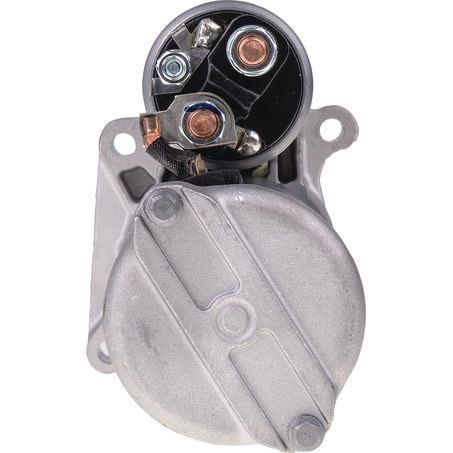

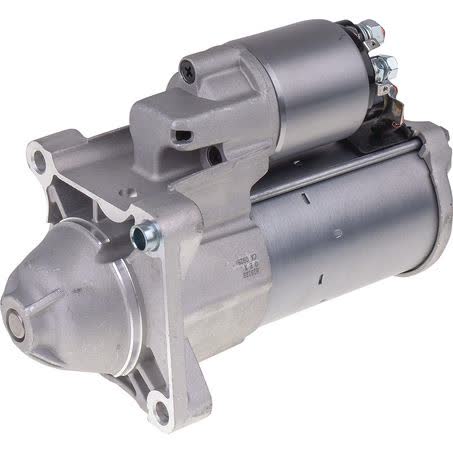

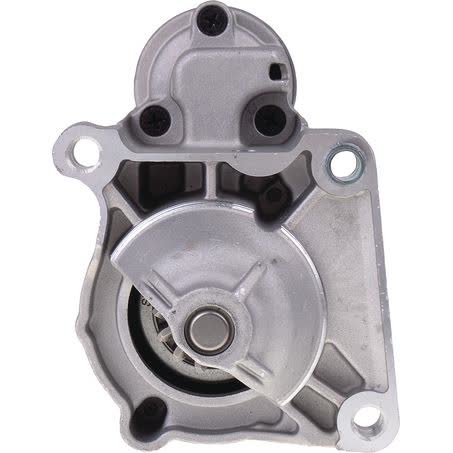

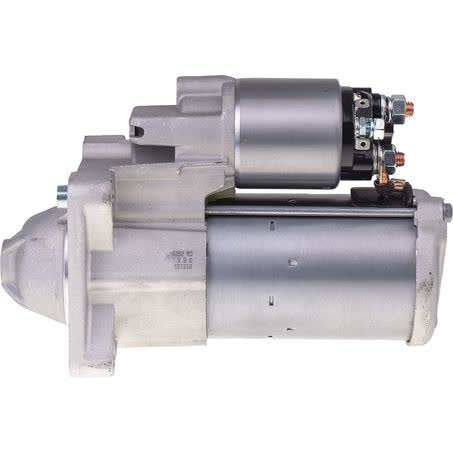

OEX Starter Motor 12V 13T CW Bosch Style BXS0184

The OEX Starter Motor BXS0184 is a 12V, 13 tooth unit with clockwise rotation and a Bosch style fitment profile. It is a new starter motor sold as each, with a 3 hole starter mount type and an OEM number of 0001170200.

Key physical checks for this unit include 112mm mount centres A, a 66mm flange diameter, a 37mm nose cone length, and an overall length of 210mm. The pinion diameter is 34.5mm and the pinion at rest measurement is 1mm, which are useful reference points when matching the starter to the vehicle application.

This starter motor is listed for Bosch unit make applications and sits in the rotating electrical product group. The warranty is 3 years for passenger use and 1 year for commercial use, which is a practical detail to confirm before ordering if the vehicle is used in a work environment.

Key Features

• 12V starter motor
• 13 tooth pinion
• Clockwise rotation
• 3 hole starter mount
• Bosch style application
• New unit

Specifications

• Brand: OEX
• Part No.: BXS0184
• OEM Number: 0001170200
• Voltage: 12V
• Number of teeth: 13
• Rotation: CW
• Starter mount type: 3 hole
• Mount centres A: 112mm

Confirmed application details

• Compatible with MINI applications listed against this part number.
• Applications include MINI 2013, MINI 2014, MINI 2015, MINI 2016 and MINI 2017.
• Applications also include MINI Clubman 2016, MINI Clubman 2017, MINI Clubman 2018 and MINI Clubman 2019.
• MINI Countryman is also shown in the fitment grouping for this starter motor.
• Fitment is tied to the listed application group and should be checked against the part number and starter measurements before purchase.

Application and Buying Notes

When selecting a starter motor, the most important checks are the part number BXS0184, the OEM number 0001170200, and the physical measurements that define the unit. For this starter, those key dimensions are 112mm mount centres A, 66mm flange diameter, 37mm nose cone length, 210mm overall length and 34.5mm pinion diameter.

The 12V rating and 13 tooth count must also align with the vehicle’s original starter specification. Rotation is clockwise, and the starter mount type is 3 hole, so the replacement should be compared carefully with the removed unit rather than relying on appearance alone.

Because this is listed as Bosch style and suited to Bosch unit make applications, it is sensible to confirm the original starter details from the vehicle or the old part before ordering. That check matters most where the vehicle model appears in the fitment grouping but exact engine or build details are not provided here.

The warranty is different for passenger and commercial use, so the intended vehicle use should be noted before purchase. If the vehicle is used commercially, the covered period is 1 year; for passenger use, the covered period is 3 years.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0184 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 112mm, Number of Teeth 13, Pinion at Rest 1mm, Rotation CW, Voltage 12, Starter Mount Type 3 Hole, OEM Number 0001170200.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. BXS0184, Brand OEX, Description OEX Starter Motor 12V 13Th CW Bosch Style, Flange Diameter 66mm, Nose Cone Length 37mm, Overall Length 210mm, Pinion Diameter 34.5mm, Suits Unit Make Bosch, New / Reman. New.

OEX Starter Motor 12V 13Th CW Bosch Style. Part number BXS0184 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0184, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MINI MINI, MINI MINI 2013, MINI MINI 2014, MINI MINI 2015. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number BXS0184, OEM number 0001170200, the 12V 13 tooth clockwise specification, and the listed mounting and dimension details before ordering.

FAQ

What is the part number for this starter motor?

The part number is BXS0184. For this listing, part number BXS0184 is the main reference point. Listed voltage is 12. Published fitment references include MINI MINI, MINI MINI 2013, MINI MINI 2014. These details should still be checked against the original unit before ordering.

What is the OEM number listed for this starter motor?

The OEM number listed is 0001170200. For this listing, part number BXS0184 is the main reference point. Listed voltage is 12. Published fitment references include MINI MINI, MINI MINI 2013, MINI MINI 2014. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number BXS0184 is the main reference point. Listed voltage is 12. Published fitment references include MINI MINI, MINI MINI 2013, MINI MINI 2014. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 13 teeth. For this listing, part number BXS0184 is the main reference point. Listed voltage is 12. Published fitment references include MINI MINI, MINI MINI 2013, MINI MINI 2014. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

The rotation is clockwise, shown as CW. For this listing, part number BXS0184 is the main reference point. Listed voltage is 12. Published fitment references include MINI MINI, MINI MINI 2013, MINI MINI 2014. These details should still be checked against the original unit before ordering.

What warranty applies to this starter motor?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS0184 is the main reference point. Listed voltage is 12. Published fitment references include MINI MINI, MINI MINI 2013, MINI MINI 2014. These details should still be checked against the original unit before ordering.
