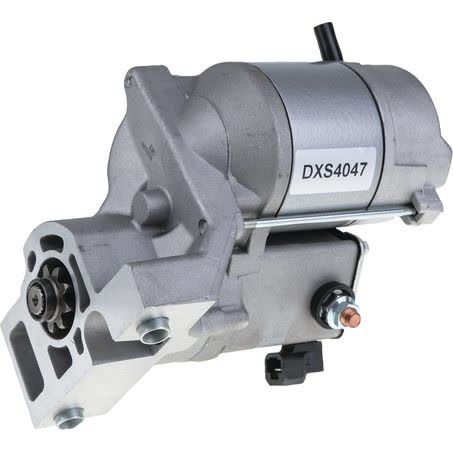

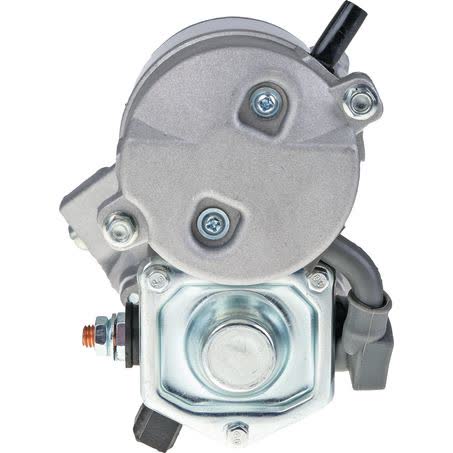

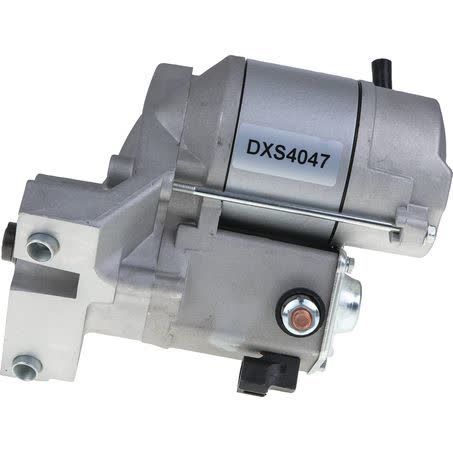

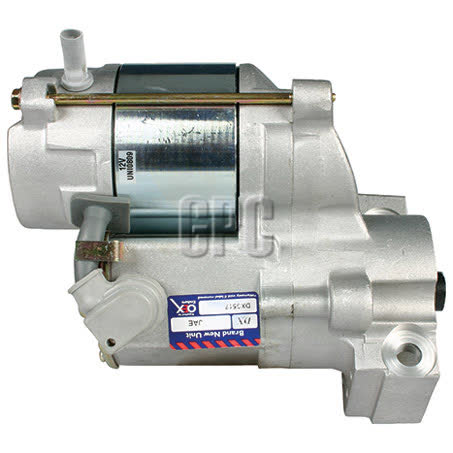

OEX Starter Motor 12V 9TH CW Denso Style DXS4047

The OEX DXS4047 is a 12V starter motor in a 9th clock-wise configuration, built in a Denso style with a pad mount. Key identifiers for cross-checking are Part No. DXS4047 and OEM Number DXS517, which are the most useful references when matching the unit to an existing starter or vehicle application.

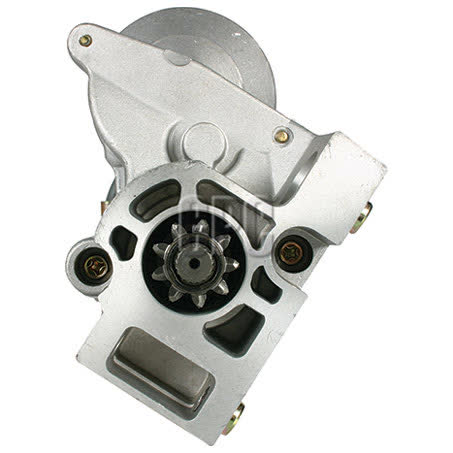

This starter motor is rated at 1.4kW and uses 9 teeth, with a pinion diameter of 29mm, a pinion at rest measurement of 3mm, and a flange diameter of 80mm. Mount centres are 82mm and the mount hole diameter is 10mm, so physical comparison is important before ordering.

It is listed as a new unit and suits Denso applications. The design is for dry clutch use, and the overall length is 187mm. For buyers replacing an existing starter, the rotation, tooth count, voltage, mounting style and dimensions should all be checked against the vehicle and the removed part.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clock-wise rotation
• Denso style unit
• Pad mount type
• 1.4kW power rating

Specifications

• Part No.: DXS4047
• OEM Number: DXS517
• Voltage: 12V
• Power Rating: 1.4kW
• Rotation: CW
• Number of Teeth: 9
• Starter Mount Type: Pad
• Suits Unit Make: Denso

Listed vehicle applications

• Holden Frontera
• Holden Jackaroo / Monterey
• Holden Rodeo
• Isuzu MU
• Isuzu Vehicross
• Isuzu Wizard

Application and Buying Notes

Before ordering, compare the removed starter motor with DXS4047 and confirm the 12V system, 9 tooth pinion, CW rotation and pad mount style. The 80mm flange diameter, 82mm mount centres, 10mm mount hole diameter and 187mm overall length are practical checks that can prevent a mismatch.

The starter is specified as a Denso style unit and suits Denso applications, so the safest match is made by checking the part number, OEM Number DXS517, and the physical mounting pattern. A starter can look close but still differ in tooth count, rotation or nose and flange dimensions.

OEX products are sourced from ISO certified factories and the brand is backed by a comprehensive nationwide warranty. Even so, correct identification still matters, because starter motors must match the vehicle’s electrical setup, mounting face, pinion engagement and rotation direction to be suitable.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4047 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 82mm, Number of Teeth 9, Pinion at Rest 3mm, Power Rating 1.4kW, Suits Unit Make Denso, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. DXS4047, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 80mm, Mount Hole Diameter 10, Overall Length 187mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS4047 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4047, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN FRONTERA, HOLDEN FRONTERA 1999, HOLDEN FRONTERA 2000, HOLDEN FRONTERA 2001, ISUZU MU, ISUZU MU 1998. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching the part number DXS4047, OEM Number DXS517, 12V rating, 9 tooth CW configuration, pad mount style and physical dimensions against the vehicle and the existing starter before purchase.

FAQ

What is the voltage of this starter motor?

It is a 12V starter motor. For this listing, part number DXS4047 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN FRONTERA, HOLDEN FRONTERA 1999, HOLDEN FRONTERA 2000. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter motor has 9 teeth. For this listing, part number DXS4047 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN FRONTERA, HOLDEN FRONTERA 1999, HOLDEN FRONTERA 2000. These details should still be checked against the original unit before ordering.

What rotation does this unit use?

It is a clockwise (CW) starter motor. For this listing, part number DXS4047 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN FRONTERA, HOLDEN FRONTERA 1999, HOLDEN FRONTERA 2000. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as a new unit. For this listing, part number DXS4047 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN FRONTERA, HOLDEN FRONTERA 1999, HOLDEN FRONTERA 2000. These details should still be checked against the original unit before ordering.

What vehicle applications are listed?

Listed applications include Holden Frontera, Holden Jackaroo / Monterey, Holden Rodeo, Isuzu MU, Isuzu Vehicross and Isuzu Wizard. For this listing, part number DXS4047 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN FRONTERA, HOLDEN FRONTERA 1999, HOLDEN FRONTERA 2000. These details should still be checked against the original unit before ordering.

What should I check before buying?

Check the part number DXS4047, OEM Number DXS517, 12V rating, 9 tooth count, CW rotation, pad mount style and the dimensions including 80mm flange diameter, 82mm mount centres, 10mm mount hole diameter and 187mm overall length. For this listing, part number DXS4047 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN FRONTERA, HOLDEN FRONTERA 1999, HOLDEN FRONTERA 2000. These details should still be checked against the original unit before ordering.
