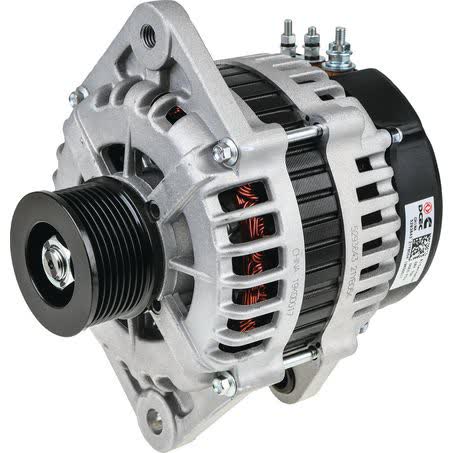

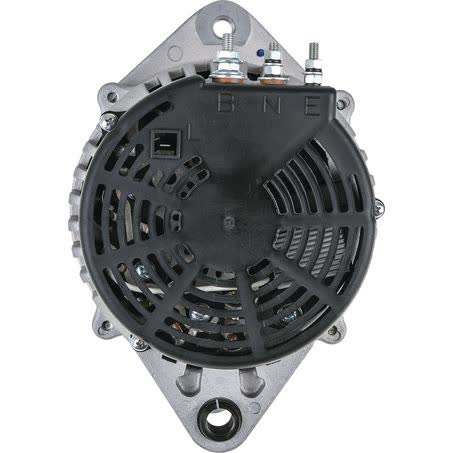

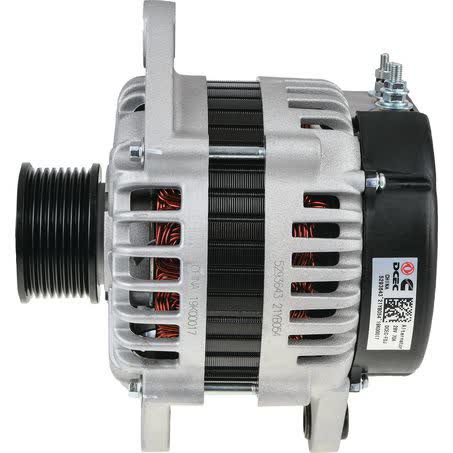

OEX Alternator 24V 70A Delco Style DXA9500

The OEX Alternator DXA9500 is a new 24V, 70A alternator with a Delco style mounting layout, twin leg alternator mount, and internal regulator. It is listed with an 8 groove pulley, 65.5mm pulley outside diameter, and 68mm inside mounting legs, so those dimensions need to line up with the existing unit and drive setup before purchase.

This alternator is supplied as an each item and is identified as part number DXA9500. It suits Delco applications and carries a 3yr Passenger / 1yr Commercial warranty, which is useful if the vehicle is used in different duty cycles and you need to match the replacement to the intended use.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and that production is supported by ISO9001 certified factories with engineering, testing, and quality control procedures. For a charging component, that matters because the fit, pulley alignment, and electrical specification must all match the vehicle’s requirements, not just the appearance of the casing.

Key Features

• 24V alternator with 70A output
• Delco style unit
• New alternator, not remanufactured
• Internal regulator
• Twin leg alternator mount
• 8 groove pulley

Specifications

• Voltage: 24V
• Power rating: 70 amp
• Pulley section: 8 groove
• Pulley outside diameter: 65.5mm
• Inside mounting legs: 68mm
• Mount centre to centre: 198mm
• Adjusting hole diameter: M12x1.75
• Pivot hole diameter: 13mm

Checked fitment references

• ACTIVE AL918F
• ACTIVE AL918F 2015
• ACTIVE AL926F/FT
• ACTIVE AL926F/FT 2015
• ACTIVE AL936LE
• ACTIVE AL936LE 2015
• ACTIVE AL938LE
• ACTIVE AL938LE 2015

Application and Buying Notes

Before ordering, compare the replacement alternator against the existing unit in your machine. The key checks here are 24V charging system voltage, 70A output, Delco style fitment, twin leg mount layout, and the physical dimensions of 68mm inside mounting legs, 198mm mount centre to centre, and the M12x1.75 adjusting hole. If any of those differ, the part may not be correct even if the alternator looks similar.

The 8 groove pulley and 65.5mm pulley outside diameter are important because belt engagement and alignment depend on them. If the belt count or pulley size is wrong, the alternator may physically bolt up but still be unsuitable for the application. The internal regulator is another detail to confirm, since electrical configuration needs to match the vehicle’s charging system.

This is a new OEX alternator, so it is intended as a direct replacement style component rather than a remanufactured unit. The listed 3yr Passenger / 1yr Commercial warranty gives a clear warranty framework, but it does not replace the need to verify the application details, mounting pattern, pulley section, and part number DXA9500 before fitting.

If you are matching by machine model, use the fitment references as a starting point only and still confirm the existing alternator specifications. The listed applications include ACTIVE AL918F, ACTIVE AL926F/FT, ACTIVE AL936LE, ACTIVE AL938LE, HERCULES HD656D, and LOVOL FL958G-11 variants, but the exact unit on the machine should always be checked against the part number and mounting measurements.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA9500 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 68mm, Power Rating (Amp) 70, Pulley Section 8 Groove, Suits Unit Make Delco, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. DXA9500, Brand OEX, Description OEX Alternator 24V 70A Delco Style, Adjusting Hole Diameter M12x1.75, Pivot Hole Diameter 13, Pulley Outside Diameter 65.5mm, Regulator Type Internal, Voltage 24, Mount Cnt to Cnt 198mm.

OEX Alternator 24V 70A Delco Style. Part number DXA9500 should be checked first. Listed voltage is 24. Listed output rating is 70. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA9500, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 70 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ACTIVE AL918F, ACTIVE AL918F 2015, ACTIVE AL926F/FT, ACTIVE AL926F/FT 2015, HERCULES HD656D, HERCULES HD656D 2022. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number DXA9500, 24V charging system details, 70A output, Delco style mounting, twin leg mount, pulley section, and the listed dimensions before ordering.

FAQ

Is this alternator new or remanufactured?

It is listed as new, not remanufactured.

What voltage and amperage is the DXA9500?

It is a 24V alternator with a 70A power rating.

What pulley setup does it use?

It uses an 8 groove pulley with a 65.5mm pulley outside diameter.

Does it have an internal regulator?

Yes. The regulator type is listed as internal.

What mounting measurements should be checked?

Check the 68mm inside mounting legs, 198mm mount centre to centre, M12x1.75 adjusting hole, and 13mm pivot hole.

Which applications are referenced for this alternator?

Referenced applications include ACTIVE AL918F, ACTIVE AL926F/FT, ACTIVE AL936LE, ACTIVE AL938LE, HERCULES HD656D, and LOVOL FL958G-11 variants. Final fitment still needs to be confirmed against the existing unit and dimensions.
