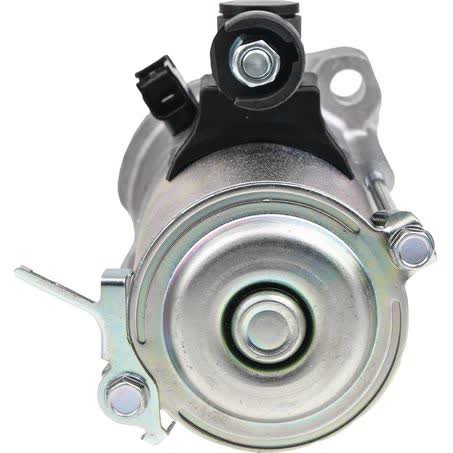

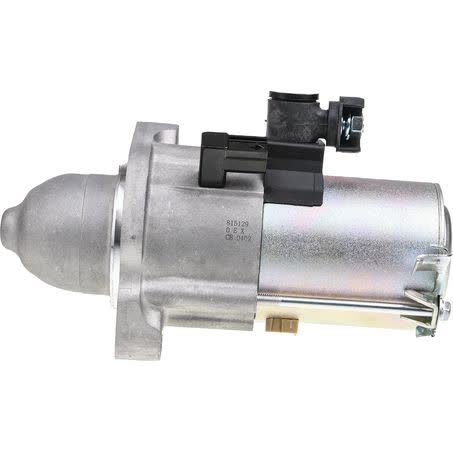

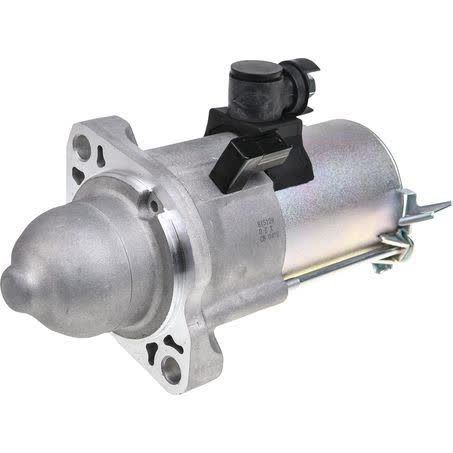

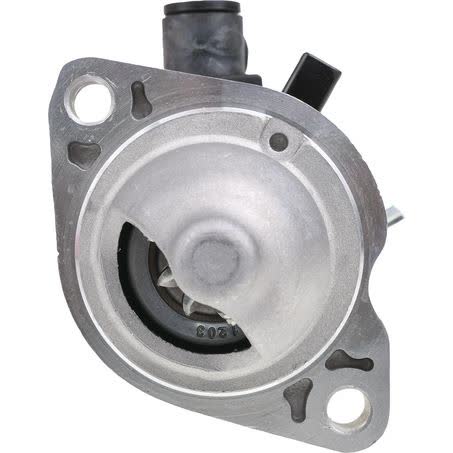

OEX Starter Motor 12V 9T CW Mitsuba Style MXS823

The OEX starter motor, part number MXS823, is a new 12V unit with 9 teeth and clockwise rotation. It is listed as Mitsuba style and suits Mitsuba applications, with a 2 hole starter mount and 104mm mount centres A for reference during comparison.

Key dimensions on this starter motor include a 75mm flange diameter, 61mm nose cone length, 218mm overall length, 30mm pinion diameter, and 33mm pinion at rest. These measurements are the practical checks to match against the removed unit before ordering.

OEX lists this as a dry clutch starter motor in the rotating electrical product group. The warranty is stated as 3 years for passenger use and 1 year for commercial use, which gives a clear guide to how the unit is backed for different applications.

Key Features

• New OEX starter motor
• 12V electrical system
• 9 tooth pinion
• Clockwise rotation
• Mitsuba style unit
• 2 hole starter mount

Specifications

• Part number: MXS823
• Brand: OEX
• Type: Starter motor
• Voltage: 12V
• Number of teeth: 9
• Rotation: CW
• New / remanufactured: New
• Starter mount type: 2 hole

Fitment guidance

• Suits Mitsuba unit make
• Fitment information provided includes Honda Accord applications from 2013 through 2019
• Honda is listed in the fitment data
• Honda Accord is listed in the fitment data

Application and Buying Notes

Before buying, compare the part number MXS823, the 12V rating, the 9 tooth pinion, and the clockwise rotation against the unit being replaced. Those details are the quickest way to avoid an incorrect starter selection when the vehicle uses a Mitsuba-style arrangement.

The physical dimensions matter just as much as the electrical details. Check the 104mm mount centres A, 75mm flange diameter, 61mm nose cone length, 218mm overall length, and 2 hole starter mount against the old starter motor and mounting points. Even small differences can stop the unit from seating correctly.

This starter is listed for Mitsuba applications, and the supplied fitment data includes Honda Accord applications across 2013 to 2019. That does not replace a direct confirmation on the vehicle, so the safest approach is to verify the original unit, the mounting pattern, and the application details before purchase.

There is also an important electrical check noted for installation. Low voltage to the starter can cause solenoid contacts to chatter and burn, so battery condition and cable condition should be checked before fitting the new starter motor. A healthy charging and cranking circuit is part of a proper installation check.

The starter is marked as suitable for dry clutch use, so that detail should be matched to the vehicle arrangement where applicable. For commercial use, the stated warranty is 1 year, while passenger use is 3 years, so it is worth matching the intended application to the warranty term provided.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS823 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 104mm, Number of Teeth 9, Pinion at Rest 33mm, Rotation CW, Voltage 12, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXS823, Brand OEX, Description OEX Starter Motor 12V 9Th CW Mitsuba Style - See Note, Flange Diameter 75mm, Nose Cone Length 61mm, Overall Length 218mm, Pinion Diameter 30mm, Suits Unit Make Mitsuba, Note Voltage drop to the starter (Low voltage) can cause the solenoid contacts to chatter and burn. Please make sure to check the battery condition and cables before the new starter motor fitment..

OEX Starter Motor 12V 9Th CW Mitsuba Style - See Note. Part number MXS823 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS823, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using the part number MXS823, the Mitsuba style application, and the listed dimensions and rotation before ordering. Vehicle application details should be checked against the original starter motor and the vehicle’s specifications.

FAQ

What is the part number for this OEX starter motor?

The part number is MXS823. For this listing, part number MXS823 is the main reference point. Listed voltage is 12. Published fitment references include HONDA ACCORD, HONDA ACCORD 2013, HONDA ACCORD 2014. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number MXS823 is the main reference point. Listed voltage is 12. Published fitment references include HONDA ACCORD, HONDA ACCORD 2013, HONDA ACCORD 2014. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number MXS823 is the main reference point. Listed voltage is 12. Published fitment references include HONDA ACCORD, HONDA ACCORD 2013, HONDA ACCORD 2014. These details should still be checked against the original unit before ordering.

What rotation does the starter motor have?

It is clockwise rotation, listed as CW. For this listing, part number MXS823 is the main reference point. Listed voltage is 12. Published fitment references include HONDA ACCORD, HONDA ACCORD 2013, HONDA ACCORD 2014. These details should still be checked against the original unit before ordering.

What vehicles are shown in the fitment data?

The supplied fitment data includes Honda and Honda Accord applications, with Honda Accord listed from 2013 through 2019. For this listing, part number MXS823 is the main reference point. Listed voltage is 12. Published fitment references include HONDA ACCORD, HONDA ACCORD 2013, HONDA ACCORD 2014. These details should still be checked against the original unit before ordering.

What should be checked before fitting this starter motor?

Check the battery condition and cables, and compare the part number, 12V rating, 9 tooth count, CW rotation, and the listed dimensions with the original unit. For this listing, part number MXS823 is the main reference point. Listed voltage is 12. Published fitment references include HONDA ACCORD, HONDA ACCORD 2013, HONDA ACCORD 2014. These details should still be checked against the original unit before ordering.
