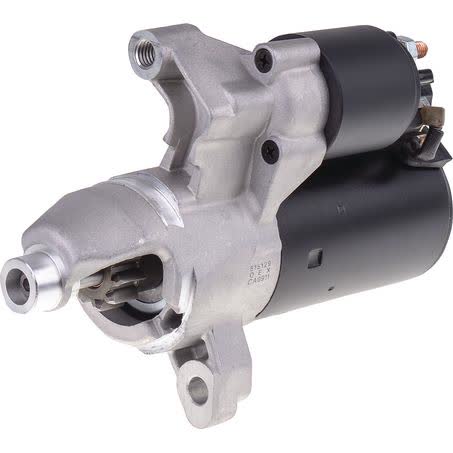

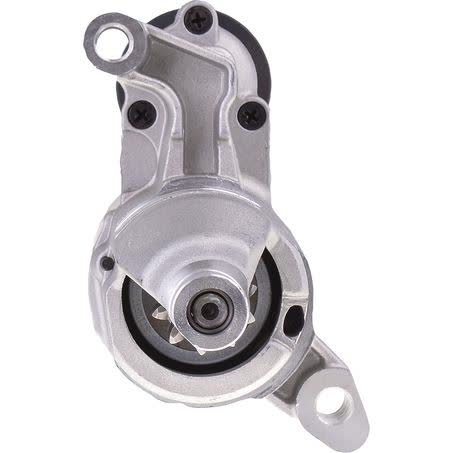

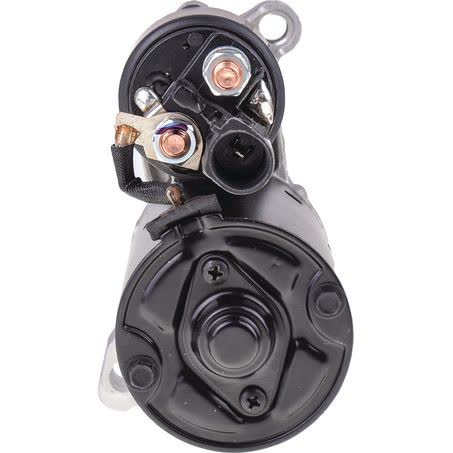

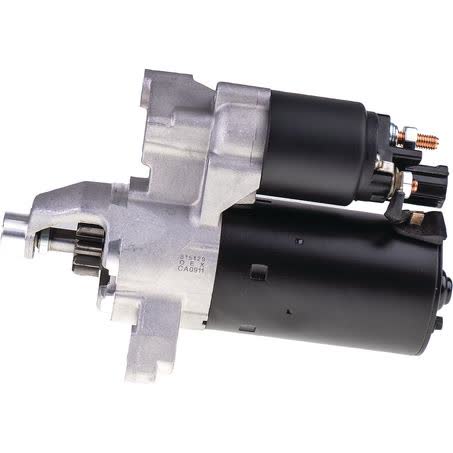

OEX Starter Motor 12V 10 Tooth Bosch Style BXS0185

The OEX Starter Motor BXS0185 is a 12V starter motor in Bosch style with 10 teeth, a 1.4kW power rating, and clockwise rotation. It is a new unit, supplied each, and includes a 3yr passenger / 1yr commercial warranty.

Key dimensions include a 134mm mount centres A measurement, 66mm flange diameter, 230mm overall length, 33mm pinion diameter, and 23mm pinion at rest. The starter mount type is 2 hole, with a mount hole diameter of M12x1.75 / 11 and a listed weight of 3.04kg.

This starter is listed as suitable for Bosch unit make applications and is grouped under rotating electrical / starter motors. The fitment data provided includes Audi and Bentley applications, so matching the part number and physical specifications to the vehicle is important before ordering.

Key Features

• 12V Bosch style starter motor
• 10 tooth pinion
• 1.4kW power rating
• Clockwise rotation
• New unit, not remanufactured
• 2 hole starter mount

Specifications

• Part number: BXS0185
• Brand: OEX
• Product type: Starter motor
• Unit of measure: Each
• Voltage: 12V
• Number of teeth: 10
• Power rating: 1.4kW
• Rotation: Clockwise (CW)

Fitment guide

• Audi A4
• Audi A5
• Audi A6
• Audi A7
• Audi A8
• Audi Q5
• Audi Q7
• Bentley Continental

Application and Buying Notes

Before ordering, confirm the part number BXS0185 matches the starter you are replacing and compare the physical details: 12V, 10 teeth, 1.4kW, clockwise rotation, and a 2 hole mount with 134mm mount centres. These are the practical checks that help separate a correct replacement from a similar-looking unit.

The listed Bosch style and Bosch unit make matter when the original starter uses that style of housing and mounting arrangement. The flange diameter is 66mm, the overall length is 230mm, and the pinion measurements are 33mm diameter with 23mm at rest, so these figures should be checked against the removed unit where access allows.

Vehicle fitment information is provided for Audi and Bentley applications, but model and year alone should not be treated as enough for a final match. Starter motors can differ by engine, transmission, mounting pattern, and pinion specification, so the safest approach is to compare the existing unit, the part number, and all listed dimensions before purchase.

This is a new starter motor supplied as a single piece, and the warranty differs between passenger and commercial use. If the vehicle is used commercially, make sure the intended application sits within the 1yr commercial warranty terms rather than assuming the passenger warranty period applies.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0185 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 134mm, Number of Teeth 10, Pinion at Rest 23mm, Power Rating 1.4kW, Suits Unit Make Bosch, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXS0185, Brand OEX, Description OEX Starter Motor 12V 10Th Bosch Style, Flange Diameter 66mm, Mount Hole Diameter M12x1.75 / 11, Overall Length 230mm, Pinion Diameter 33mm, Rotation CW.

OEX Starter Motor 12V 10Th Bosch Style. Part number BXS0185 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0185, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI A4, AUDI A4 2007, AUDI A4 2008, AUDI A4 2009, BENTLEY CONTINENTAL, BENTLEY CONTINENTAL 2011. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by checking the BXS0185 part number, 12V Bosch style configuration, 10-tooth count, CW rotation, 2 hole mount, and all listed dimensions against the vehicle and removed starter before ordering.

FAQ

What is the part number for this starter motor?

The part number is BXS0185. For this listing, part number BXS0185 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2007, AUDI A4 2008. These details should still be checked against the original unit before ordering.

What voltage is the OEX BXS0185 starter motor?

It is a 12V starter motor. For this listing, part number BXS0185 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2007, AUDI A4 2008. These details should still be checked against the original unit before ordering.

How many teeth does this starter motor have?

It has 10 teeth. For this listing, part number BXS0185 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2007, AUDI A4 2008. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number BXS0185 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2007, AUDI A4 2008. These details should still be checked against the original unit before ordering.

What warranty is listed for this part?

The warranty is 3yr passenger / 1yr commercial. For this listing, part number BXS0185 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2007, AUDI A4 2008. These details should still be checked against the original unit before ordering.

Which vehicles are shown in the fitment data?

The provided fitment data includes Audi A4, A5, A6, A7, A8, Q5 and Q7 applications, plus Bentley Continental and Bentley Flying Spur applications. For this listing, part number BXS0185 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2007, AUDI A4 2008. These details should still be checked against the original unit before ordering.
