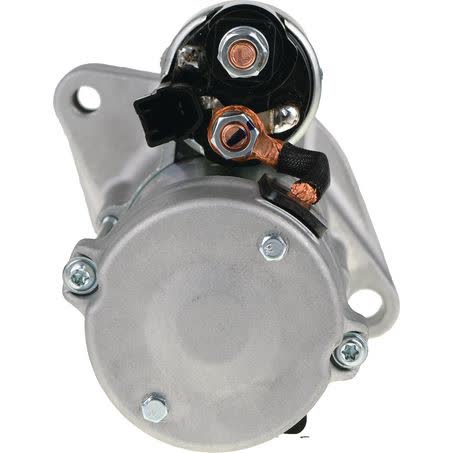

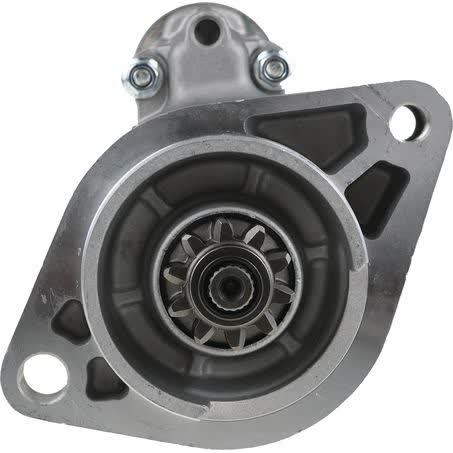

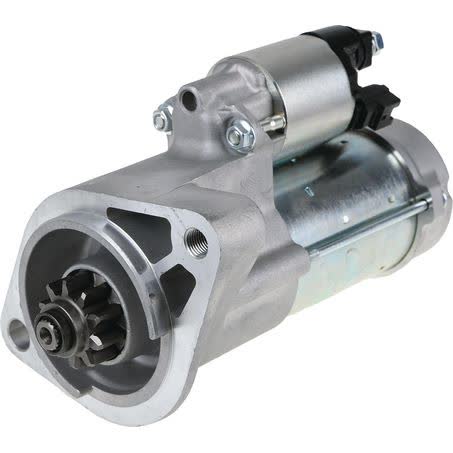

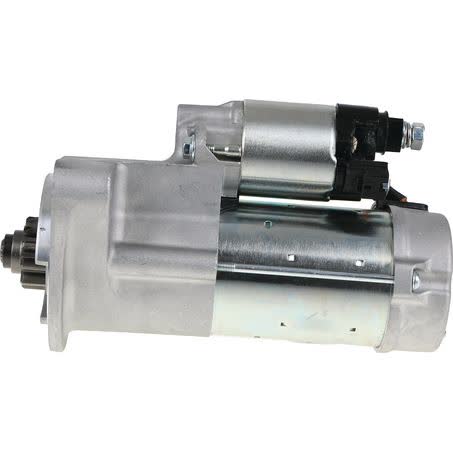

OEX Starter Motor 12V 10 Tooth CW Denso Style DXS636

The OEX starter motor DXS636 is a new 12V unit with 10 teeth, clockwise rotation, and a Denso style application. It is listed as a dry clutch starter motor with a 2-hole starter mount, 130mm mount centres, and an 82.5mm flange diameter.

Key physical dimensions are provided for checking against the existing starter before ordering: overall length is 230mm, pinion diameter is 38mm, pinion at rest is 17.5mm, and the mount hole diameter is M12x1.25 / 13. The unit is intended to suit Denso applications.

This part is also noted as a replacement for 9th Valeo VXS918. The listed warranty is 3 years for passenger use and 1 year for commercial use, which gives a useful reference when comparing this starter to the original unit in the vehicle.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• Denso style application
• New unit
• Dry clutch design

Specifications

• Brand: OEX
• Part No.: DXS636
• Product type: Starter motor
• Voltage: 12V
• Number of teeth: 10
• Rotation: CW
• Suits unit make: Denso
• Starter mount type: 2 hole

Fitment guidance

• Toyota
• Toyota Fortuner
• Toyota Hilux
• Toyota Land Cruiser Prado

Application and Buying Notes

Before ordering, compare the part number DXS636, the 10 tooth pinion, 12V rating, and clockwise rotation with the starter fitted to the vehicle. The mount centres of 130mm, 82.5mm flange diameter, and 2-hole mounting pattern are practical checks that help confirm the new unit matches the existing arrangement.

The listed pinion at rest of 17.5mm and pinion diameter of 38mm are important if you are matching the physical starter layout rather than relying on a vehicle name alone. Small differences in mounting, pinion position, or rotation can mean the starter will not suit, even where the vehicle make appears similar.

This starter is described as a Denso style unit and the fitment data includes Toyota, Toyota Fortuner, Toyota Hilux, and Toyota Land Cruiser Prado applications. That helps narrow the search, but the safest approach is still to compare the original starter, the mounting points, and the full application details before purchase.

Warranty is listed as 3 years for passenger use and 1 year for commercial use. That warranty period applies to the product as supplied, so it is worth keeping the invoice and confirming the application before installation to avoid issues if the starter does not match the vehicle.

If you are unsure, compare the old unit side by side with this starter and check the mount hole diameter of M12x1.25 / 13, the overall length of 230mm, and the 10 tooth pinion count. Those measured details are often the quickest way to confirm whether the starter is a direct match.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS636 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 130mm, Number of Teeth 10, Pinion at Rest 17.5mm, Rotation CW, Voltage 12, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXS636, Brand OEX, Description OEX Starter Motor 12V 10Th CW Denso Style, Flange Diameter 82.5mm, Mount Hole Diameter M12x1.25 / 13, Overall Length 230mm, Pinion Diameter 38mm, Suits Unit Make Denso, Note RPL 9TH VALEO - VXS918.

OEX Starter Motor 12V 10Th CW Denso Style. Part number DXS636 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS636, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using part number DXS636, the 12V 10 tooth clockwise specification, the 2-hole mounting arrangement, and the supplied application details before ordering. Vehicle names alone are not enough to confirm starter compatibility.

FAQ

What is the part number for this starter motor?

The part number listed is DXS636. For this listing, part number DXS636 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number DXS636 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number DXS636 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is clockwise rotation, listed as CW. For this listing, part number DXS636 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020. These details should still be checked against the original unit before ordering.

What vehicles are shown in the fitment data?

The fitment data includes Toyota, Toyota Fortuner, Toyota Hilux, and Toyota Land Cruiser Prado applications. For this listing, part number DXS636 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020. These details should still be checked against the original unit before ordering.

What warranty is listed for this part?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS636 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA FORTUNER, TOYOTA FORTUNER 2015, TOYOTA FORTUNER 2020. These details should still be checked against the original unit before ordering.
