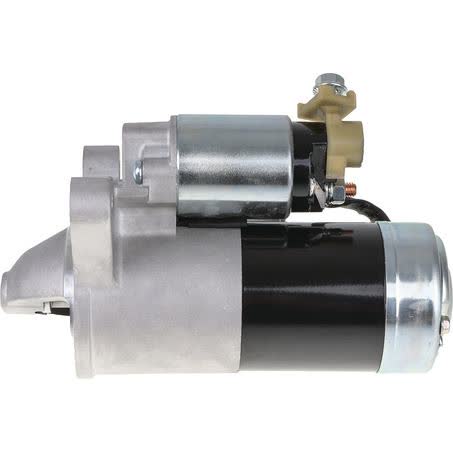

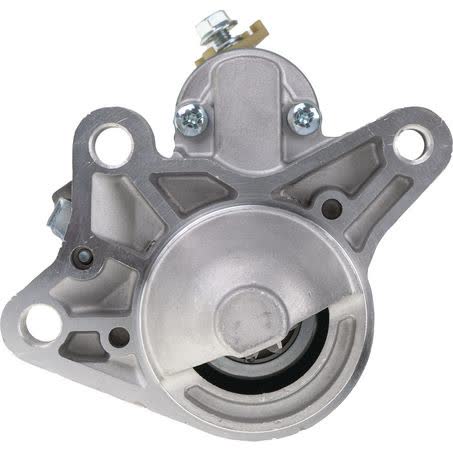

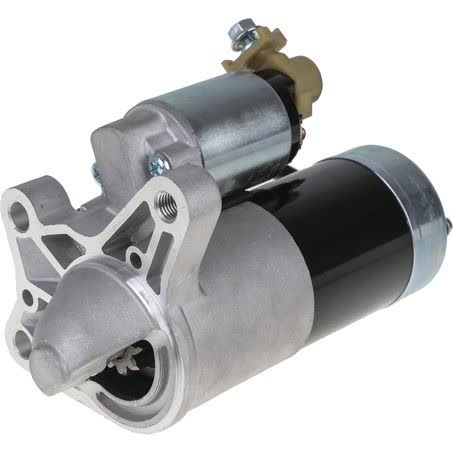

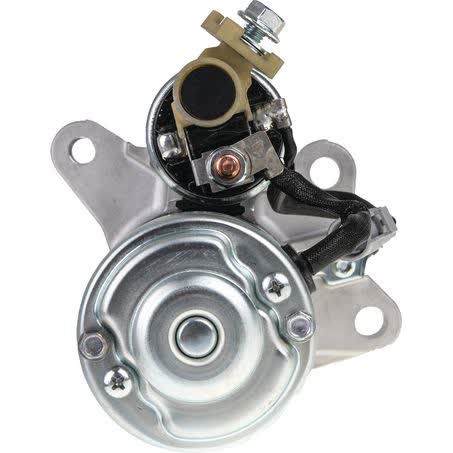

OEX Starter Motor 12V 9 Tooth CW Mitsubishi Style MXS2086

This OEX starter motor is a new 12V unit with clockwise rotation and 9 teeth, identified by part number MXS2086. It is listed as Mitsubishi suit application and is fitted with a round plug start wire terminal, which is an important check when matching the electrical connection to the vehicle loom.

Key physical measurements include 134mm mount centres A, 98mm mount centres B, 73mm mount centres C, a 73mm flange diameter, 37mm nose cone length, and an overall length of 221.5mm. The mount hole diameter is M12 / 12.5, so the mounting style and clearances should be checked carefully before ordering.

The starter is rated at 1.8kW and has a pinion diameter of 31mm, with pinion at rest listed as 1.5mm. It suits dry clutch applications and is supplied new, not remanufactured, with warranty cover listed as 3 years for passenger use and 1 year for commercial use.

Key Features

• New starter motor
• 12V clockwise rotation
• 9 tooth pinion
• Round plug start wire terminal
• Dry clutch application
• Mitsubishi suit application

Specifications

• Brand: OEX
• Product type: Starter motor
• Part No.: MXS2086
• OEM Number: SH02-18-400
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 1.8kW

Fitment notes

• Fitment data supplied references Mazda applications, including Mazda 6 and Mazda CX-5.
• Sample applications provided include Mazda 6 2012 through 2019, and Mazda CX-5 2012 and 2013.
• Only use the listed vehicle application if the part number, terminal type, mount pattern, and starter dimensions match the vehicle being serviced.

Application and Buying Notes

Before ordering, check the starter against the vehicle’s existing unit using part number MXS2086, the OEM number SH02-18-400, and the round plug start wire terminal. The mounting pattern is a 3 hole type with 134mm, 98mm, and 73mm mount centres, so those measurements should line up with the original starter and the engine housing.

The electrical specification is 12V with clockwise rotation and a 1.8kW power rating. Those details matter because an otherwise similar starter can still be incorrect if the rotation, voltage, tooth count, or terminal style differs from the original unit fitted to the vehicle.

Clearance around the nose cone and pinion should also be checked. This unit has a 37mm nose cone length, 31mm pinion diameter, 1.5mm pinion at rest, and an overall length of 221.5mm, so physical space around the bell housing and starter aperture needs to suit the replacement exactly.

If the vehicle is listed as Mazda 6 or Mazda CX-5, use that only as a starting point and still compare the dimensions, mount centres, and terminal arrangement. Mitsubishi suit application, 9 teeth, CW rotation, and dry clutch specification are the key identifiers supplied here, and they should be matched against the removed starter before fitment.

For commercial use, the warranty is listed separately from passenger use at 1 year versus 3 years. Keep the purchase details, part number, and any workshop checks together so the correct unit can be confirmed quickly if the vehicle has been altered, repaired, or fitted with a non-original starter previously.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2086 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 134mm, Mount Centres C 73mm, Nose Cone Length 37mm, Overall Length 221.5mm, Pinion Diameter 31mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS2086, Brand OEX, Description OEX Starter Motor 12V 9Th CW Mitsubishi Style - See Note, Flange Diameter 73mm, Mount Centres B 98mm, Mount Hole Diameter M12 / 12.5.

OEX Starter Motor 12V 9Th CW Mitsubishi Style - See Note. Part number MXS2086 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2086, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MAZDA 6, MAZDA 6 2012, MAZDA 6 2013, MAZDA 6 2014. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by comparing part number MXS2086, OEM number SH02-18-400, the round plug start wire terminal, and the listed mounting and dimension details against the vehicle before purchase.

FAQ

What type of starter motor is this?

It is a new OEX starter motor, 12V, clockwise rotation, with 9 teeth and a 1.8kW power rating.

What part numbers are listed?

The part number is MXS2086 and the OEM number listed is SH02-18-400.

What terminal type does it use?

It is fitted with a round plug start wire terminal.

What mounting measurements are provided?

The listed measurements are 134mm mount centres A, 98mm mount centres B, 73mm mount centres C, a 73mm flange diameter, and an M12 / 12.5 mount hole diameter.

Which vehicle applications are referenced?

The supplied fitment information references Mazda applications, including Mazda 6 and Mazda CX-5, with sample years for Mazda 6 from 2012 to 2019 and Mazda CX-5 from 2012 and 2013.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
