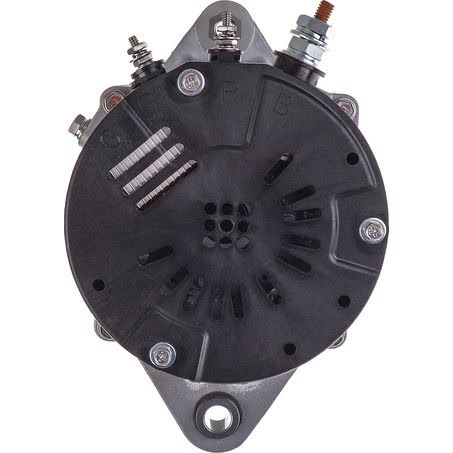

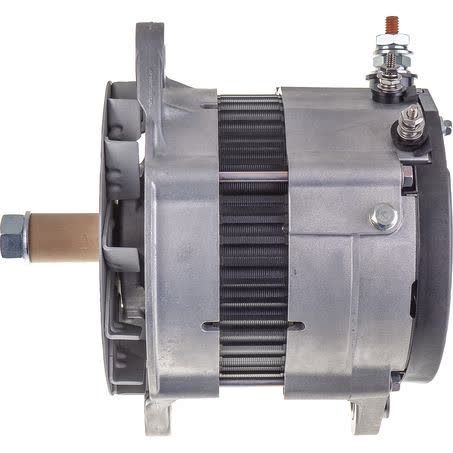

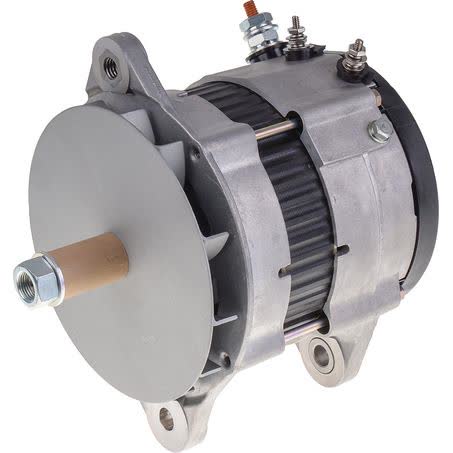

OEX Alternator 24V 95A Denso Style DXA9501

The OEX Alternator DXA9501 is a new 24V, 95A unit built in Denso style for applications that match the listed mounting and electrical details. Key identifiers include Part No. DXA9501, Pin Code IR165, internal regulator type, twin leg alternator mount, and a 22mm shaft diameter.

This alternator is supplied as a new unit, not remanufactured, and is listed with a 3yr Passenger / 1yr Commercial warranty. For installation planning, the important physical checks are the 101mm inside mounting legs, 198mm mount centre-to-centre, 13 mm pivot hole diameter, and M12 adjusting hole diameter.

As a 24 volt alternator with a 95 amp power rating, this part suits systems that require that voltage and output combination. The unit weight is listed at 13kg, so it is worth allowing for the size and handling of the assembly when comparing against the original unit.

OEX describes its alternator range as quality-focused aftermarket product, with ISO9001 certified factories supporting engineering, testing, and quality control procedures. The core buying step remains confirming the part number, voltage, amperage, regulator type, and mounting measurements against the vehicle or removed unit before ordering.

Key Features

• New OEX alternator, not remanufactured
• 24V electrical system
• 95A power rating
• Denso style unit
• Internal regulator
• Twin leg alternator mount

Specifications

• Brand: OEX
• Product type: Alternator
• Part No.: DXA9501
• Voltage: 24V
• Power rating: 95A
• Regulator type: Internal
• Suits unit make: Denso
• Alternator mount: Twin Leg

Application and Buying Notes

For alternators, voltage and physical mounting details matter as much as the part number. This unit is 24V and 95A, with an internal regulator, so it should only be considered for vehicles or systems that call for that exact electrical setup. If the original alternator is a Denso style unit, the next step is to compare the mounting pattern, shaft size, and hole dimensions carefully rather than relying on appearance alone.

The listed mounting measurements are the main checks here: 101mm inside mounting legs, 198mm mount centre-to-centre, 13 mm pivot hole diameter, and M12 adjusting hole diameter. The 22mm shaft diameter also needs to align with the existing pulley and installation arrangement. If any of these measurements differ from the removed unit, a physical match is not assured.

Because the fitment data supplied is limited, the safest approach is to verify the part number DXA9501 and compare it directly with the vehicle application or the original alternator tag. This is especially important on electrical components, where a correct-looking unit can still be wrong in voltage, regulator type, or mounting layout.

The 13kg weight gives a general sense of the unit size, but it should not be used as a substitute for fitment confirmation. Where possible, check the old alternator for the same mounting style, hole sizes, and terminal or regulator details before purchase. That is the most reliable way to reduce installation delays and avoid ordering the wrong part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA9501 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 101mm, Pivot Hole Diameter 13 mm, Regulator Type Internal, Suits Unit Make Denso, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. DXA9501, Brand OEX, Description OEX Alternator 24V 95A Denso Style, Adjusting Hole Diameter M12, Pin Code IR165, Power Rating (Amp) 95, Shaft Diameter 22mm, Voltage 24, Mount Cnt to Cnt 198mm.

OEX Alternator 24V 95A Denso Style. Part number DXA9501 should be checked first. Listed voltage is 24. Listed output rating is 95. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA9501, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 95 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

Compatibility note: Confirm fitment by matching Part No. DXA9501, 24V, 95A, internal regulator, Denso style, and the listed mounting measurements against the vehicle or removed alternator before ordering.

FAQ

Is this alternator new or remanufactured?

This is listed as a new alternator.

What voltage and output does this alternator have?

It is a 24V alternator with a 95A power rating.

What part number should I use to check compatibility?

The listed part number is DXA9501.

What mounting details are provided for this alternator?

The listed mounting details are 101mm inside mounting legs, 198mm mount centre-to-centre, a 13 mm pivot hole diameter, and an M12 adjusting hole diameter.

Does this alternator use an internal regulator?

Yes. The regulator type is listed as internal.

Is fitment guaranteed from the product title alone?

No. Fitment should be confirmed by matching the part number, voltage, amperage, regulator type, and mounting measurements against the original unit or vehicle application.
