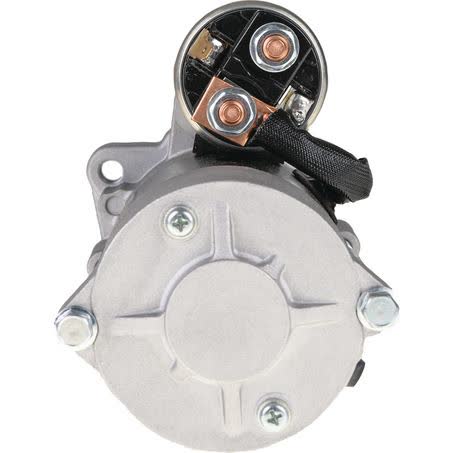

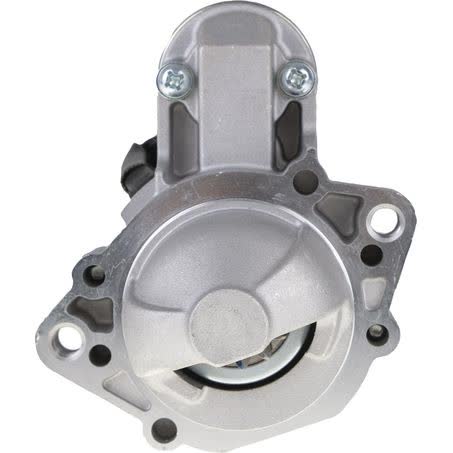

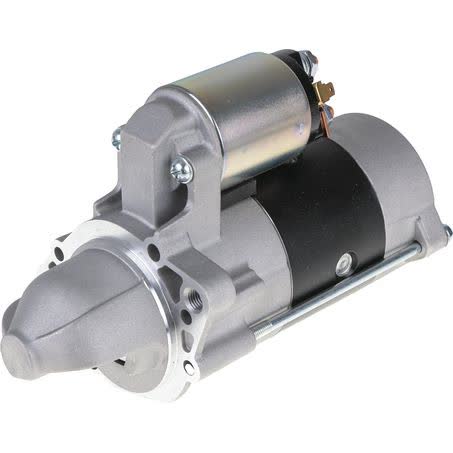

OEX Starter Motor 12V 13 Tooth CW Mitsubishi Style MXS2089

The OEX Starter Motor MXS2089 is a new 12V rotating electrical unit with a 2.2kW power rating, 13 teeth, clockwise rotation, and a Mitsubishi style application. It is supplied as a 2 hole starter motor with a 70mm flange diameter and M10 x 1.25 mount hole diameter, so the mounting pattern and electrical specifications should be checked carefully before ordering.

This unit measures 226mm overall length, with a 161mm body length and 65mm nose cone length. The pinion diameter is 35mm and the pinion at rest is 20mm, which are useful checks when comparing against the removed starter or the vehicle application details.

The listed note says it suits manual transmission only, and for automatic use the alternate part is MXS2094. Fitment data supplied with this item references Mitsubishi and Mitsubishi Triton applications, including Mitsubishi Triton 2015, but final confirmation should always be made against the part number, mounting style, tooth count, and rotation before purchase.

Key Features

• New OEX starter motor
• 12V operation
• 13 tooth pinion
• Clockwise rotation
• 2.2kW power rating
• 2 hole starter mount

Specifications

• Brand: OEX
• Part No.: MXS2089
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 13
• Power rating: 2.2kW
• Starter mount type: 2 hole

Fitment information supplied

• Mitsubishi
• Mitsubishi Triton
• Mitsubishi Triton 2015

Application and Buying Notes

Before ordering, match the part number MXS2089, the 12V rating, 13 tooth count, clockwise rotation, and 2 hole mount layout against the unit being replaced. Those details are the quickest way to reduce the chance of a mismatch, especially when the vehicle has had previous starter changes or mixed replacement parts fitted.

The note for this starter motor is important: it suits manual transmission only. If the vehicle is automatic, the listed alternate part is MXS2094. That distinction matters more than appearance alone, because the starter configuration and application can differ even where the engine family or vehicle badge looks similar.

Mounting and physical dimensions should be checked if you are comparing by measurement. The flange diameter is 70mm, the mount hole diameter is M10 x 1.25, and the overall length is 226mm. The body length is 161mm and the nose cone length is 65mm, which can help when confirming available clearance and alignment.

If you are working from an old starter, compare the pinion diameter of 35mm and the pinion at rest measurement of 20mm, along with the 13 tooth count and CW rotation. These are practical identifiers when the vehicle model list is broad or when the exact original unit is no longer on hand.

The supplied fitment references include Mitsubishi and Mitsubishi Triton, including Mitsubishi Triton 2015. That is a helpful guide, but starter fitment should still be confirmed against the vehicle build, transmission type, and the existing starter details before purchase, particularly where the vehicle has been modified or repaired previously.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2089 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Flange Diameter 70mm, Mount Hole Diameter M10 x 1.25, Number of Teeth 13, Pinion at Rest 20mm, Power Rating 2.2kW, Suits Unit Make Mitsubishi, Note SUITS M/T ONLY, FOR AUTO USE MXS2094.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. MXS2089, Brand OEX, Description OEX Starter Motor 12V 13Th CW Mitsubishi Style, Body Length 161mm, Mount Centres A 105mm, Nose Cone Length 65mm.

OEX Starter Motor 12V 13Th CW Mitsubishi Style. Part number MXS2089 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2089, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using the part number MXS2089, the manual-transmission-only note, and the listed mounting and electrical specifications before ordering. If the vehicle is automatic, the noted alternative is MXS2094.

FAQ

What is the part number for this starter motor?

The part number listed is MXS2089. For this listing, part number MXS2089 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015. These details should still be checked against the original unit before ordering.

Is this a 12V starter motor?

Yes. The voltage is listed as 12V. For this listing, part number MXS2089 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is listed as clockwise rotation, shown as CW. For this listing, part number MXS2089 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015. These details should still be checked against the original unit before ordering.

Does this starter suit automatic transmission vehicles?

No. The note states it suits manual transmission only. For automatic use, the listed alternate is MXS2094. For this listing, part number MXS2089 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015. These details should still be checked against the original unit before ordering.

What vehicle fitment is supplied for this part?

The supplied fitment references include Mitsubishi and Mitsubishi Triton, including Mitsubishi Triton 2015. For this listing, part number MXS2089 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015. These details should still be checked against the original unit before ordering.

What are the main mounting details to check?

The starter is a 2 hole mount with a 70mm flange diameter and M10 x 1.25 mount hole diameter. For this listing, part number MXS2089 is the main reference point. Listed voltage is 12. Published fitment references include MITSUBISHI TRITON, MITSUBISHI TRITON 2015. These details should still be checked against the original unit before ordering.
