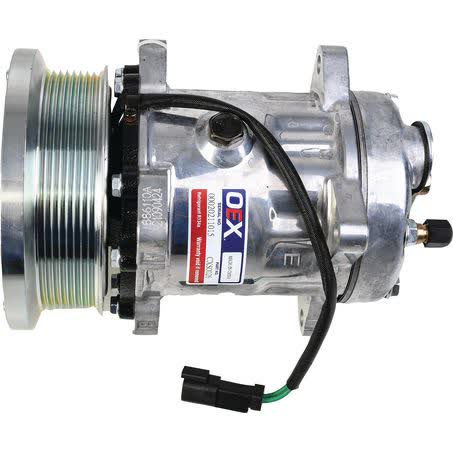

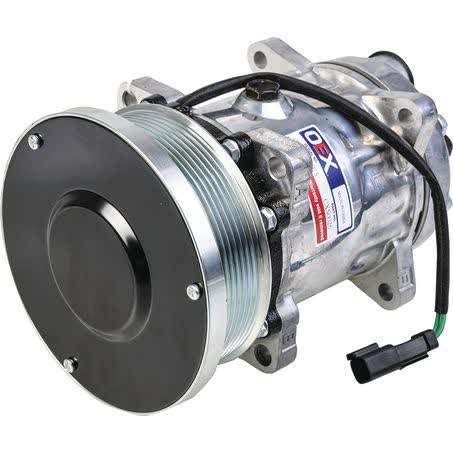

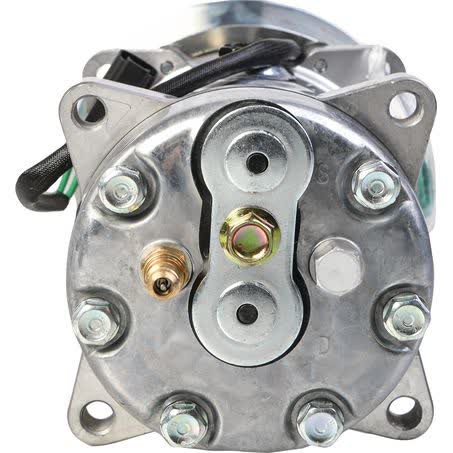

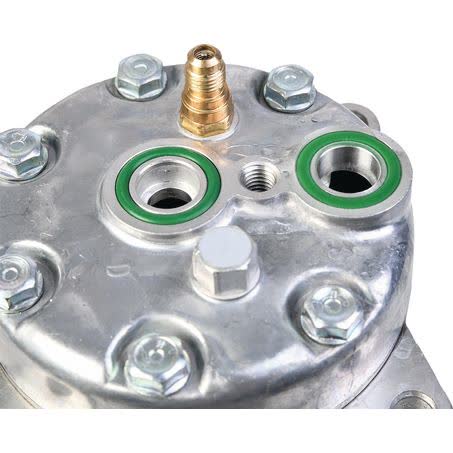

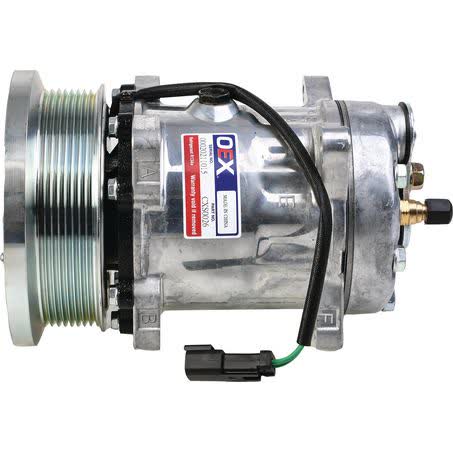

OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style CXS0026

The OEX Air Conditioning Compressor is a 24V unit in SD7H15 style with ear mount mounting and a horizontal pad fitting type. It is identified as part number CXS0026 and is listed with an 8 groove pulley section, a 132mm clutch diameter and a 46.46mm gauge line.

This compressor is described as a Sanden suit unit and uses PAG46 oil, with an oil capacity of 300ml. The unit also includes a dust cover and a sealed heavy duty clutch arrangement noted as SHD, which is relevant when matching the compressor to the existing air conditioning setup.

The listed notes specify ORX017 O-rings x 2 and a head code of GK. For buyers replacing an existing compressor, the key checks are the 24V electrical requirement, ear mount style, 8 groove pulley, 132mm clutch diameter and the CXS0026 part number.

Key Features

• 24V air conditioning compressor
• SD7H15 style compressor
• Ear mount mounting
• Horizontal pad fitting type
• 8 groove pulley section
• 132mm clutch diameter

Specifications

• Brand: OEX
• Product type: Air conditioning compressor
• Part No.: CXS0026
• Voltage: 24V
• Series: SD7H15
• Compressor mounting: Ear mount
• Fitting type: Horizontal pad
• Pulley section: 8 groove

Fitment guidance

• No vehicle-specific fitment list has been verified here.
• The supplied application data includes Caterpillar equipment references, including 135H, 143H, 14H, 163H, 24M, 345B/BL, 735, 740, 740EJ, 770, 793F, 824G, 826G, 836G, 836H, 836K, 980G, 980H, 986H, 988G, 988H, Agricultural 527 and RM500.
• Sample applications shown in the supplied data include Caterpillar 135H 2003 and Caterpillar 143H 1996.
• Fitment must still be checked against the existing compressor details, mount style, pulley groove count, clutch diameter and part number before ordering.

Application and Buying Notes

When replacing an air conditioning compressor, matching the physical mounting and drive details matters as much as the electrical rating. This unit is a 24V ear mount compressor with a horizontal pad fitting type, an 8 groove pulley section and a 132mm clutch diameter, so those points should be compared directly against the removed part.

The compressor is listed as SD7H15 style and as a Sanden suit unit, which helps narrow the application, but it is still important to confirm the existing arrangement on the machine. The supplied notes also specify PAG46 oil and an oil capacity of 300ml, so the refrigerant oil type and charge requirements should be checked during installation.

The part number CXS0026 is the most reliable identifier for matching this compressor. The note for ORX017 O-rings x 2 should also be taken into account, particularly where seals are being renewed during compressor replacement.

If the existing compressor shows a different groove count, clutch diameter, mounting style or voltage, do not assume interchangeability. A direct visual check and part number match are the safest way to avoid a costly mismatch on climate control repairs.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS0026 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Ear Mount, Pulley Section 8 Groove, Suits Unit Make Sanden, Note O Ring to suit ORX017 x 2. SHD ( Sealed Heavy Duty Clutch ). Oil type PAG46., Oil Capacity 300ml, Head Code GK, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXS0026, Brand OEX, Description OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style, Clutch Diameter 132mm, Fitting Type Horizontal Pad, Series SD7H15, Voltage 24, Gauge Line 46.46mm, Dust Cover Y/N Yes.

OEX Air Conditioning Compressor 24V Ear Mount SD7H15 Style. Part number CXS0026 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS0026, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CATERPILLAR 135H, CATERPILLAR 135H 2003, CATERPILLAR 143H, CATERPILLAR 143H 1996. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is Two Years. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by matching part number CXS0026, 24V voltage, ear mount style, 8 groove pulley, 132mm clutch diameter, horizontal pad fitting type and the listed application details before purchase.

FAQ

What is the part number for this compressor?

The part number is CXS0026.

What voltage is this air conditioning compressor?

It is a 24V compressor.

What mounting style does it use?

The compressor is listed as ear mount with a horizontal pad fitting type.

What pulley and clutch details are listed?

It has an 8 groove pulley section and a 132mm clutch diameter.

What oil type should be used?

The listed oil type is PAG46, with an oil capacity of 300ml.

Is there any fitment information supplied?

Yes. The supplied application data includes Caterpillar equipment references, including 135H, 143H, 14H, 163H, 24M, 345B/BL, 735, 740, 740EJ, 770, 793F, 824G, 826G, 836G, 836H, 836K, 980G, 980H, 986H, 988G, 988H, Agricultural 527 and RM500, but the part should still be matched by its physical details and part number.
