OEX Alternator 12V 130A Denso Style DXA4110

The OEX Alternator DXA4110 is a 12V, 130A unit built in a Denso style with a pad mount and internal regulator. It is supplied new, weighs 6.12kg, and uses a 6 groove pulley with a 60mm outside diameter. These details matter when matching the alternator to the vehicle’s charging system and mount arrangement.

This alternator suits Denso applications and is identified with pin code IR43, inside mounting legs of 49mm, and an adjusting hole diameter of 12mm. The mount leg thickness is listed at 75mm, so checking the physical shape and fixing points against the original unit is important before ordering.

OEX positions this range as an aftermarket option with quality and reliability in mind, backed by a 3 year passenger / 1 year commercial warranty. The brand also notes ISO9001 certified factories and manufacturing practices aimed at consistent engineering and testing, which is useful context for buyers wanting a replacement alternator rather than a repair gamble.

Key Features

• 12V, 130A alternator
• New unit
• Denso style construction
• Internal regulator
• Pad mount design
• 6 groove pulley

Specifications

• Brand: OEX
• Product type: Alternator
• Voltage: 12V
• Power rating: 130A
• Part No.: DXA4110

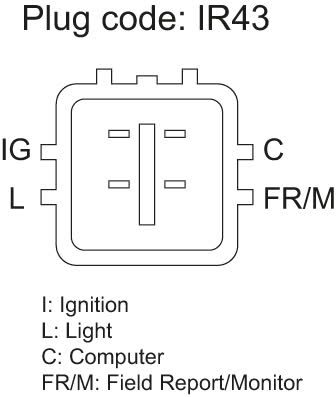

• Pin code: IR43
• Pulley outside diameter: 60mm
• Pulley section: 6 groove

Fitment guidance

• Fitment information provided includes Suzuki Kizashi applications.
• Applications listed include Suzuki Kizashi for model years 2010, 2011, 2012, 2013, 2014, 2015 and 2016.
• Because alternators must match the mounting style, pulley, plug and charging specification, compare the original unit and part number before purchase.

Application and Buying Notes

Start with the part number DXA4110 and the physical specification set: 12V, 130A, Denso style, pad mount, internal regulator, and IR43 pin code. Those details are the most reliable first check for compatibility, especially where the original alternator has been replaced previously or the vehicle has had charging system work done.

The pulley and mounting dimensions are just as important as the electrical rating. This unit has a 6 groove pulley with a 60mm outside diameter, inside mounting legs of 49mm, an adjusting hole diameter of 12mm, and mount leg thickness of 75mm. If any of those points differ from the existing alternator, fitment should be verified carefully before fitting.

The fact that this is a new alternator may suit buyers looking to replace a worn or inconsistent charging unit rather than refurbish the existing one. Even so, the correct outcome depends on matching the physical mount, connector code, pulley type, rotation, and vehicle application. Confirming these details against the removed unit is the safest way to avoid a return.

For commercial use, the warranty is listed as 1 year, while passenger use is listed as 3 years. If the vehicle is used in more than one way, it is sensible to confirm which warranty category applies before purchase. The unit weighs 6.12kg, which can also help when comparing it with the original alternator at hand.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA4110 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 49mm, Pin Code IR43, Pulley Outside Diameter 60mm, Regulator Type Internal, Suits Unit Make Denso, Alternator Mount Pad, Insulated Return No.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. DXA4110, Brand OEX, Description OEX Alternator 12V 130A Denso Style, Adjusting Hole Diameter 12mm, Mount Leg Thickness 75mm, Power Rating (Amp) 130, Pulley Section 6 Groove, Rotation CW.

OEX Alternator 12V 130A Denso Style. Part number DXA4110 should be checked first. Listed voltage is 12. Listed output rating is 130. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA4110, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 130 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number DXA4110, the Denso-style pad mount, IR43 pin code, 12V 130A rating, 6 groove pulley, and the vehicle application details before ordering. If the original unit does not match these specifications, do not assume interchangeability.

FAQ

What is the part number for this alternator?

The part number is DXA4110. For this listing, part number DXA4110 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include SUZUKI KIZASHI, SUZUKI KIZASHI 2010, SUZUKI KIZASHI 2011. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with a 130A power rating. For this listing, part number DXA4110 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include SUZUKI KIZASHI, SUZUKI KIZASHI 2010, SUZUKI KIZASHI 2011. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It has an internal regulator. For this listing, part number DXA4110 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include SUZUKI KIZASHI, SUZUKI KIZASHI 2010, SUZUKI KIZASHI 2011. These details should still be checked against the original unit before ordering.

Does this alternator suit Denso applications?

Yes. It is listed as Denso style and suits Denso units. For this listing, part number DXA4110 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include SUZUKI KIZASHI, SUZUKI KIZASHI 2010, SUZUKI KIZASHI 2011. These details should still be checked against the original unit before ordering.

What pulley does it use?

It has a 6 groove pulley with a 60mm outside diameter. For this listing, part number DXA4110 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include SUZUKI KIZASHI, SUZUKI KIZASHI 2010, SUZUKI KIZASHI 2011. These details should still be checked against the original unit before ordering.

Is fitment listed for Suzuki Kizashi?

Yes. The fitment information provided includes Suzuki Kizashi applications for 2010 through 2016. For this listing, part number DXA4110 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include SUZUKI KIZASHI, SUZUKI KIZASHI 2010, SUZUKI KIZASHI 2011. These details should still be checked against the original unit before ordering.
