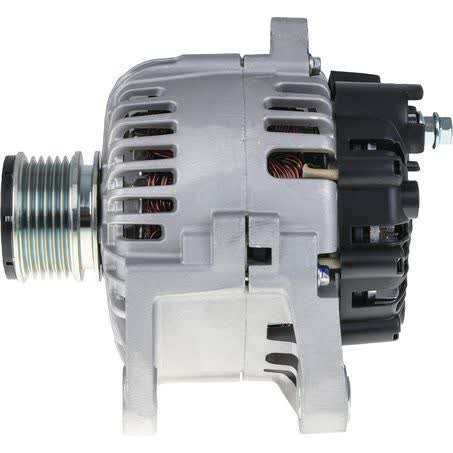

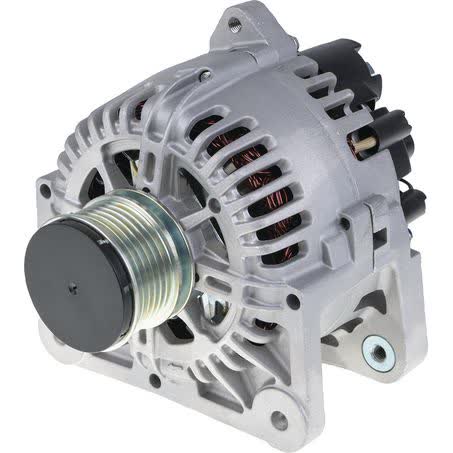

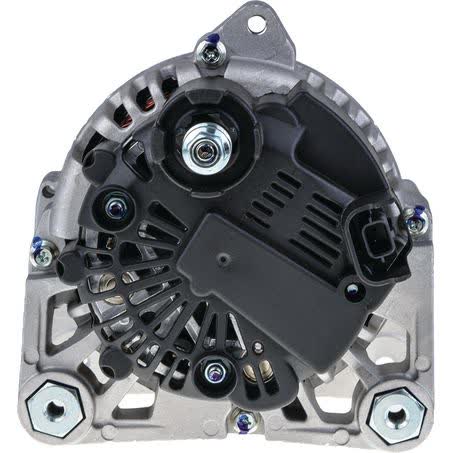

OEX Alternator 12V 110A Valeo Style VXA035

The OEX Alternator VXA035 is a 12V, 110A unit built in a Valeo style configuration for vehicles using a Valeo alternator pattern. It is supplied as a new alternator, weighs 6kg, and uses a quad leg alternator mount with 60mm inside mounting legs.

Key physical details for checking before purchase include a 127mm mount centre to centre measurement, M8x1.25 / 8 adjusting and pivot holes, and a 6 groove pulley with a 55mm outside diameter. These dimensions matter because alternators can look similar while differing at the mounting points, pulley setup, or belt alignment.

OEX lists this part under part number VXA035 and backs it with a 3 year passenger / 1 year commercial warranty. The unit sits in the rotating electrical group and is intended for applications that require a Valeo-style 12V alternator rated at 110 amps.

Key Features

• 12V alternator with 110A output
• Valeo style configuration
• New unit
• Quad leg alternator mount
• 6 groove pulley
• 60mm inside mounting legs

Specifications

• Brand: OEX
• Product type: Alternator
• Part No.: VXA035
• Voltage: 12V
• Power rating: 110A
• New / remanufactured: New
• Weight: 6kg
• Alternator mount: Quad leg

Fitment guidance

• Supported fitment references include Renault Kangoo applications across model years shown in the supplied fitment data.
• Renault Megane is also referenced in the fitment data, but no year-by-year application detail is provided here.
• Because alternator fitment depends on mount style, pulley configuration, and connector details as well as vehicle model, verify all measurements against the existing unit before ordering.

Application and Buying Notes

Check the vehicle against the part number VXA035 first, then compare the mounting pattern, pulley, and hole sizes. This alternator is a 12V, 110A Valeo style unit with a quad leg mount, 60mm inside mounting legs, and 127mm mount centre to centre, so the correct physical match is just as important as the vehicle model.

The 6 groove pulley and 55mm outside diameter need to suit the existing belt system. If the belt arrangement on the vehicle uses a different groove count or pulley size, the alternator may not line up correctly even if the model name appears close.

The M8x1.25 / 8 adjusting and pivot holes are useful checkpoints when comparing the unit to the original alternator. These measurements help confirm whether the bracket and adjustment setup will line up as expected during installation.

As a new OEX alternator, this unit is intended as a direct replacement style part for suitable Valeo applications, but alternator interchange can vary within the same vehicle range. Confirm the original unit make, the mounting layout, and the pulley details before fitting to avoid delays or incorrect supply.

The 3 year passenger / 1 year commercial warranty adds useful cover, but it does not replace fitment verification. If the existing alternator is available, matching the part number and physical dimensions to VXA035 is the safest way to confirm suitability.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXA035 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 60mm, Power Rating (Amp) 110, Pulley Section 6 Groove, Voltage 12, Mount Cnt to Cnt 127mm, Weight 6kg, Product Group 1 ROTATING ELECTRICAL.

Additional published details for cross-checking include Part No. VXA035, Brand OEX, Description OEX Alternator 12V 110A Valeo Style, Adjusting Hole Diameter M8x1.25 / 8, Pivot Hole Diameter M8x1.25 / 8, Pulley Outside Diameter 55mm, Suits Unit Make Valeo, Alternator Mount Quad Leg, New / Reman. New.

OEX Alternator 12V 110A Valeo Style. Part number VXA035 should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number VXA035, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include RENAULT KANGOO, RENAULT KANGOO 2004, RENAULT KANGOO 2005, RENAULT KANGOO 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by checking part number VXA035, the Valeo style application, quad leg mount, 12V 110A rating, 6 groove pulley, and all listed mounting measurements against the vehicle and original alternator before purchase.

FAQ

What type of alternator is this?

It is an OEX alternator, part number VXA035, in a Valeo style configuration. It is a new 12V unit rated at 110A.

What vehicles does it suit?

Supplied fitment references include Renault Kangoo applications and Renault Megane references. Exact suitability still needs to be confirmed against the part number and mounting details.

What mounting details should I check?

Check the quad leg mount, 60mm inside mounting legs, and 127mm mount centre to centre. The adjusting and pivot holes are M8x1.25 / 8.

What pulley does it use?

It has a 6 groove pulley with a 55mm outside diameter.

Is this a new or remanufactured alternator?

It is listed as new.

What warranty is supplied?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
