Mahle Alternator 24V 110A New - Part No. MG475

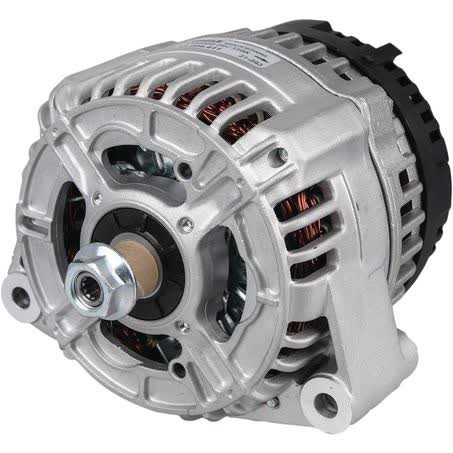

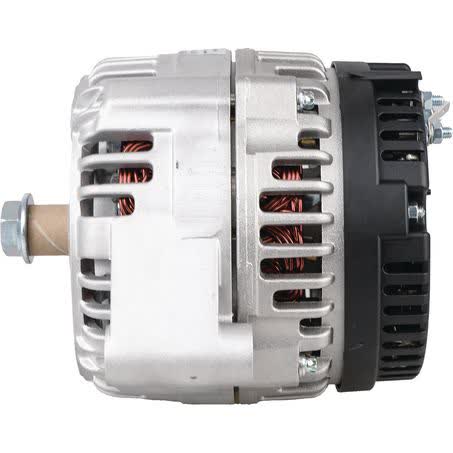

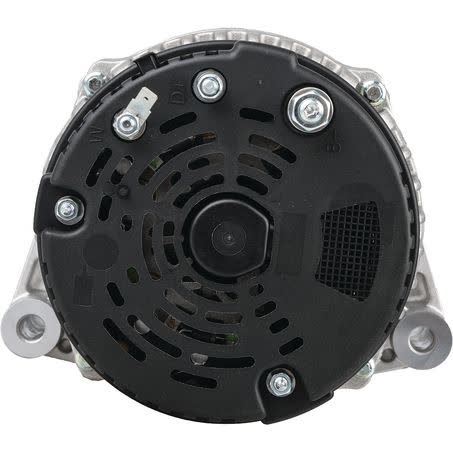

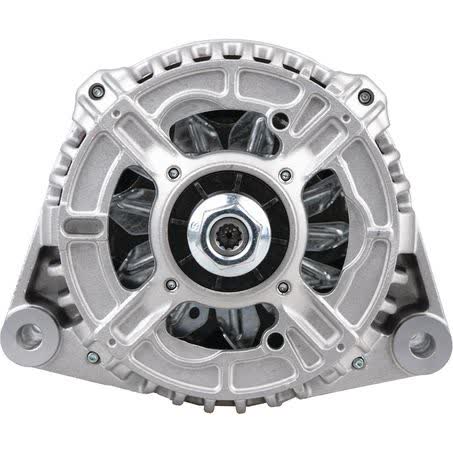

The Mahle Alternator MG475 is a new 24V unit rated at 110A, supplied as an each item and listed under part number MG475. It is specified with a single leg alternator mount, internal regulator, clockwise rotation, and no belt pulley fitted, so it is important to compare the mounting and drive arrangement on the vehicle before ordering.

This alternator is noted as suitable for Deutz applications and uses a W connector/clamp. Key mounting figures include 156mm mount centre to centre, 56mm mount leg thickness, 56.0 mounting bores distance, a 10mm pivot hole diameter, a 10mm adjusting hole diameter, and 2 mounting bores. These details are the main checkpoints when confirming whether it matches the replacement unit.

The unit has a 17mm shaft diameter and is listed with a 110A charge current, which matches the 110A power rating and 24V system voltage shown in the specifications. As a new Mahle alternator, it is supplied without a belt pulley, so the pulley arrangement from the vehicle may need to be transferred or matched separately where applicable.

Key Features

• New Mahle alternator
• 24V system
• 110A charge current
• Internal regulator
• Clockwise rotation (CW)
• Single leg alternator mount

Specifications

• Brand: Mahle
• Part No.: MG475
• Product type: Alternator
• Voltage: 24V
• Power rating: 110A
• Charge current: 110A
• New / Reman.: New
• Regulator type: Internal

Application and Buying Notes

Before ordering, match the part number MG475 and check the existing alternator against the listed mounting details: single leg mount, 2 mounting bores, 156mm mount centre to centre, 56mm mount leg thickness, and 10mm pivot and adjusting holes. These dimensions are the most useful checks when confirming whether the replacement will physically sit in the same position.

The unit is a 24V, 110A alternator with an internal regulator and clockwise rotation, so the electrical setup and belt drive direction should be compared carefully with the vehicle already fitted. Because the alternator is supplied without a belt pulley, you should confirm whether the vehicle requires a specific pulley arrangement and whether the original pulley is intended to be reused.

The listing notes suitability for Deutz, but no model-specific fitment range is provided here. For that reason, the safest approach is to verify the current alternator’s brand, part number, terminal style, mounting style, shaft size, and pulley requirement before purchasing. That is especially important on commercial, industrial, or equipment applications where similar-looking alternators can differ in mount spacing or connector style.

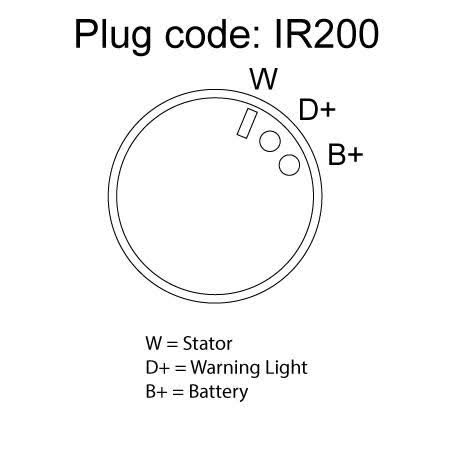

If you are replacing a worn or failed unit, compare the connector/clamp style marked W and the shaft diameter of 17mm against the unit being removed. Small differences in mounting bores, rotation, or regulator type can affect installation even when the alternator looks broadly similar. A careful parts check is the best way to avoid downtime and unnecessary returns.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MG475 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Mount Leg Thickness 56mm, Pivot Hole Diameter 10, Pulley Section Not Applicable, Rotation CW, Suits Unit Make Mahle, Note To suit Deutz, Mount Cnt to Cnt 156mm.

Additional published details for cross-checking include Alternator Charge Current [A] 110, Connector / Clamp W, Mounting Bores Distance 56.0, Packaging length 24.8, Packaging height 17.50, Product Group 2 ALTERNATORS, Part No. MG475, Brand MAHLE, Description Mahle Alternator 24V 110A.

Mahle Alternator 24V 110A. Part number MG475 should be checked first. Listed voltage is 24. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is Not Applicable. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MG475, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

Compatibility note: Confirm compatibility by matching part number MG475 and checking the listed 24V, 110A, single leg, CW, internal regulator, W connector, 156mm mount centre to centre, 56mm mount leg thickness, 10mm holes, and without belt pulley details against the existing unit and application.

FAQ

What is the part number for this alternator?

The part number listed is MG475.

Is this a new or remanufactured alternator?

It is listed as new.

What voltage and output does it have?

It is a 24V alternator with a 110A power rating and 110A charge current.

Does it come with a pulley?

No. It is listed as without belt pulley.

What type of regulator does it use?

It uses an internal regulator.

Is fitment confirmed for a specific vehicle model?

No specific vehicle model fitment is provided here. The listing only notes that it suits Deutz, so the part number MG475 and the mounting, rotation, connector, voltage, and pulley details should be checked against the existing unit before buying.
