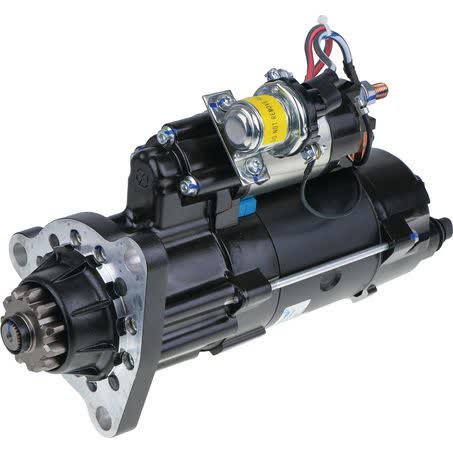

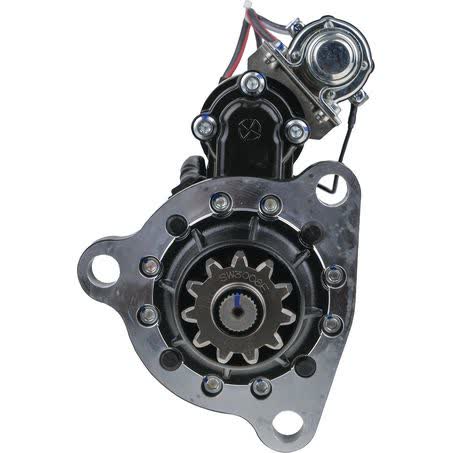

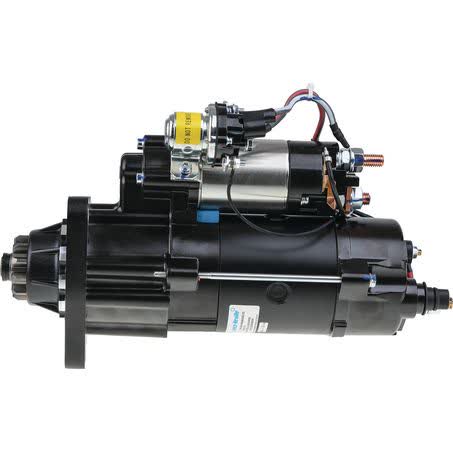

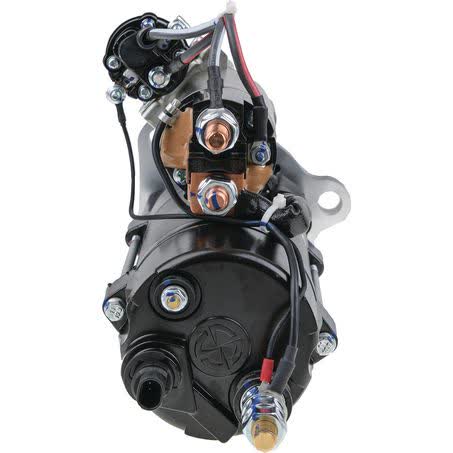

Prestolite Starter Motor 12V 11T CW 39MT Style M110603

The Prestolite Starter Motor M110603 is a new 12V starter motor in 39MT style, built with 11 teeth and clockwise rotation. It is supplied as a 3 hole starter mount type with 127mm mount centres at A, B and C, which are important checks when comparing against the existing unit.

Key dimensions listed for this unit include a 92mm flange diameter, 16.9mm mount hole diameter, 290mm overall length, 56.5mm pinion diameter and 46mm pinion at rest. The power rating is 7kW, making the electrical and physical fit details just as important as the part number match.

This starter is described as wet clutch compatible, with an insulated return, over crank protection and a rotatable nose for easier installation. It is a Prestolite unit for Prestolite applications, and the listed OEM number is 8201063.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• 39MT style
• Rotatable nose for easier fitment
• Wet clutch for better durability

Specifications

• Part No.: M110603
• OEM Number: 8201063
• Brand: Prestolite
• Voltage: 12V
• Power Rating: 7kW
• Rotation: CW
• Number of Teeth: 11
• Starter Mount Type: 3 hole

Checked application examples

• ATKINSON F4870
• ATLAS COPCO MT5020
• BCI EXPLORER
• CASE IH 9150, 9170, 9180, 9250, 9260, 9270, 9280, 9350, 9380, 9390
• CATERPILLAR 3406, 3408, 3408T, 621G, 623G
• CUMMINS C8.3-C, ISC 8.3, L10, N14, NTC-855, VT-903
• DETROIT DIESEL 6V92T and SERIES 60-14.0L
• FORD 800-SERIES, 900-SERIES, 9000-SERIES, CL and L-SERIES

Application and Buying Notes

When matching a starter motor, the safest checks are the part number M110603, the OEM number 8201063, and the physical dimensions. This unit is 12V, 7kW, 39MT style, 11 tooth and clockwise rotation, so the existing starter should be compared for voltage, rotation direction, tooth count and mounting layout before ordering.

The mount centres are listed as 127mm at A, B and C, with a 3 hole starter mount type, 92mm flange diameter and 16.9mm mount hole diameter. Those measurements matter if the starter needs to sit correctly against the bell housing or adapter face, especially where access is tight and the rotatable nose is relied on for installation positioning.

If you are replacing an older Prestolite starter, the safest approach is to confirm the number of teeth, pinion diameter of 56.5mm, pinion at rest of 46mm and overall length of 290mm against the removed unit. Even where the application list includes a model family, matching the exact starter configuration is the best way to avoid ordering the wrong assembly.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number M110603 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 127mm, Number of Teeth 11, Pinion at Rest 46mm, Power Rating 7kW, Suits Unit Make Prestolite, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Wet, Product Group 2 STARTER MOTORS, Part No. M110603, Brand PRESTOLITE, Description Prestolite Starter Motor 12V 11Th CW 39MT Style, Flange Diameter 92mm, Mount Centres B 127mm, Mount Hole Diameter 16.9, Overall Length 290mm.

Prestolite Starter Motor 12V 11Th CW 39MT Style. Part number M110603 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number M110603, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ATKINSON F4870, ATLAS COPCO MT5020, ATLAS COPCO MT5020 2010, ATLAS COPCO MT5020 2011, ATLAS COPCO MT5020 2012, BCI EXPLORER. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by checking part number M110603, OEM number 8201063, 12V electrical setup, 11 tooth CW rotation, 39MT style and the listed mounting dimensions against the existing starter and machine application.

FAQ

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number M110603 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, ATLAS COPCO MT5020, ATLAS COPCO MT5020 2010. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number M110603 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, ATLAS COPCO MT5020, ATLAS COPCO MT5020 2010. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The starter rotates clockwise, listed as CW. For this listing, part number M110603 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, ATLAS COPCO MT5020, ATLAS COPCO MT5020 2010. These details should still be checked against the original unit before ordering.

What are the main mounting dimensions?

The starter has 127mm mount centres at A, B and C, a 92mm flange diameter, and a 16.9mm mount hole diameter. For this listing, part number M110603 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, ATLAS COPCO MT5020, ATLAS COPCO MT5020 2010. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as a new starter motor. For this listing, part number M110603 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, ATLAS COPCO MT5020, ATLAS COPCO MT5020 2010. These details should still be checked against the original unit before ordering.

What warranty is supplied?

The listed warranty is one year. For this listing, part number M110603 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, ATLAS COPCO MT5020, ATLAS COPCO MT5020 2010. These details should still be checked against the original unit before ordering.
