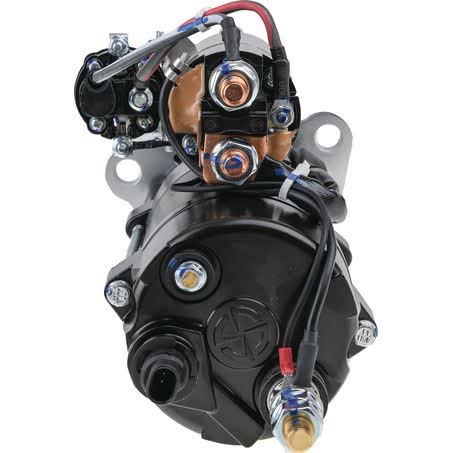

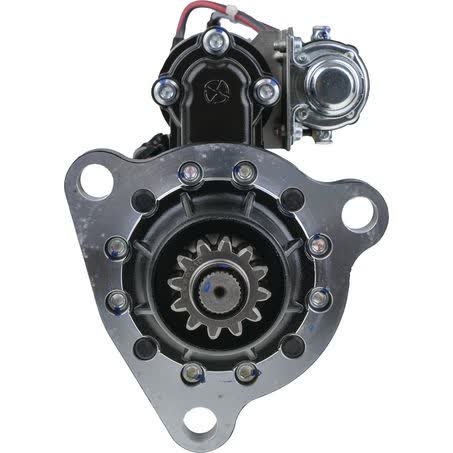

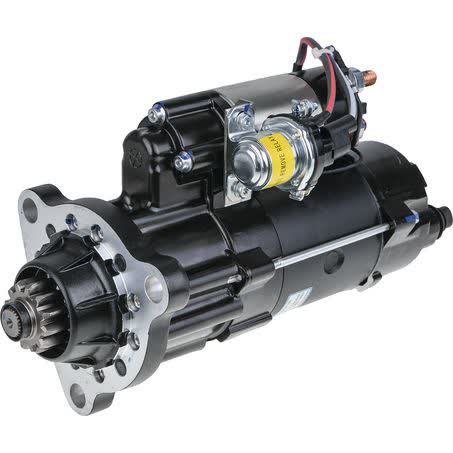

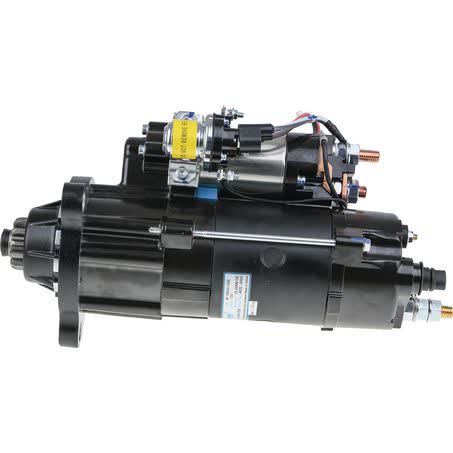

Prestolite Starter Motor 12V 12T CW 39MT Style M110610

This Prestolite starter motor is a 12V, clockwise-rotation unit with 12 teeth and a 39MT style description. It is listed as new, carries a one year warranty, and is identified by part number M110610 and OEM number 8201064.

Key physical details include a 3 hole starter mount, 127mm mount centres A, B and C, a 92mm flange diameter, 16.9mm mount hole diameter, and an overall length of 290mm. The pinion is 46mm in diameter and sits 47mm at rest, so matching the mounting and nose dimensions matters as much as the electrical rating.

The starter is rated at 7kW and uses a wet clutch design. Listed features include a rotatable nose for easier fitment, insulated return, and over crank protection. These are practical details to check against the existing unit before ordering, especially where access is tight or the application is sensitive to starter engagement depth.

Key Features

• 12V starter motor
• Clockwise rotation
• 12 tooth pinion
• 7kW power rating
• Wet clutch design
• Rotatable nose

Specifications

• Brand: Prestolite
• Part No.: M110610
• OEM Number: 8201064
• New unit
• Warranty: One year
• Voltage: 12V
• Rotation: CW
• Number of teeth: 12

Application notes and fitment references

• Fitment references include AGCO Allis 9435 and 9455.
• Application references include Allis Chalmers 7030, 7040, 7050, 7060 and 7080.
• Application references include Case 4994 and 9150, and Case IH 1440D and 1460D.
• Application references include Caterpillar 3176, 3306 and 3306T.
• Application references include Ford Transit 2006 to 2014.
• Application references include Freightliner Columbia and FL Series models.
• Application references include International Acco 2003 to 2011 and International Harvester 1430D.
• Application references include John Deere 5730, 5830, 6101A, 8630, 8640, 8650, 8760, 8770, 8870 and 9860 STS.

Application and Buying Notes

Before ordering, compare the part number M110610, OEM number 8201064, and the mounting dimensions against the starter already fitted to the machine. The important checks here are the 3 hole mount, 127mm mount centres, 92mm flange diameter, 16.9mm mount hole diameter, and 290mm overall length.

The 12V electrical setup, 12 tooth pinion, clockwise rotation, and 7kW rating all need to align with the vehicle or machine specification. A starter can look similar at a glance and still differ in tooth count, rotation, or pinion depth, so the pinion diameter of 46mm and pinion at rest measurement of 47mm are worth confirming carefully.

This unit is listed as a Prestolite starter motor and the fitment references span agricultural, truck, and industrial applications. Because those references are broad, the safest buying approach is to verify the existing unit number, the mounting face, and the rotation before committing to the purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number M110610 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 127mm, Number of Teeth 12, Pinion at Rest 47mm, Power Rating 7kW, Suits Unit Make Prestolite, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Wet, Product Group 2 STARTER MOTORS, Part No. M110610, Brand PRESTOLITE, Description Prestolite Starter 12V 12Th CW 39MT Style, Flange Diameter 92mm, Mount Centres B 127mm, Mount Hole Diameter 16.9, Overall Length 290mm.

Prestolite Starter 12V 12Th CW 39MT Style. Part number M110610 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number M110610, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER, AGCO ALLIS R62 GLEANER, ALLIS CHALMERS 7030, ALLIS CHALMERS 7040. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment by checking part number M110610, OEM number 8201064, and the listed dimensions and application details against the original starter before ordering.

FAQ

What type of part is this?

It is a Prestolite starter motor, listed as a 12V, clockwise-rotation unit with 12 teeth and a 7kW power rating. For this listing, part number M110610 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER. These details should still be checked against the original unit before ordering.

What part numbers are provided?

The listed part number is M110610 and the OEM number is 8201064. For this listing, part number M110610 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER. These details should still be checked against the original unit before ordering.

What mounting details should I check?

Check the 3 hole mount, 127mm mount centres A, B and C, 92mm flange diameter, 16.9mm mount hole diameter, and 290mm overall length. For this listing, part number M110610 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER. These details should still be checked against the original unit before ordering.

Is this starter new or remanufactured?

It is listed as new. For this listing, part number M110610 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER. These details should still be checked against the original unit before ordering.

What features are listed?

The listed features are rotatable nose for easy fitment, wet clutch for better durability, insulated return, and over crank protection. For this listing, part number M110610 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER. These details should still be checked against the original unit before ordering.

How should I confirm compatibility?

Confirm the part number, OEM number, voltage, rotation, tooth count, and the physical dimensions against the original starter and application details before ordering. For this listing, part number M110610 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER. These details should still be checked against the original unit before ordering.
