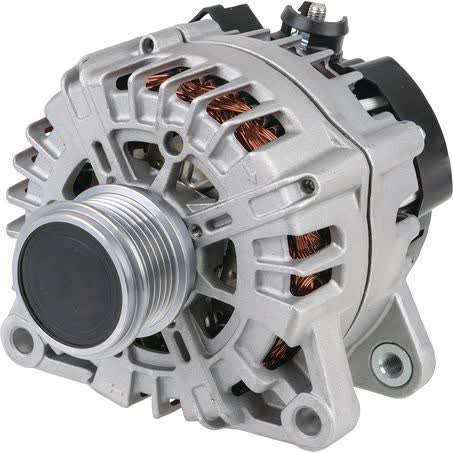

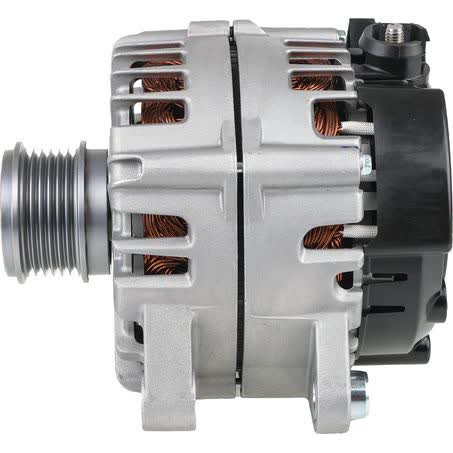

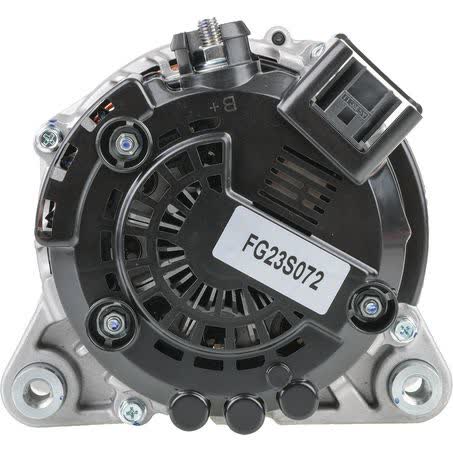

OEX Alternator 12V 225A Valeo Style VXA036

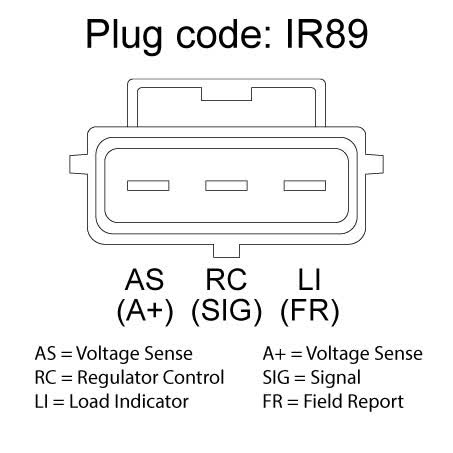

The OEX Alternator VXA036 is a new 12V, 225A unit in Valeo style, supplied as each and identified with pin code IR89. It is listed with a 6 groove pulley, clockwise rotation, internal regulator, and a quad leg alternator mount, so the mounting and electrical details can be checked against the vehicle before purchase.

This alternator suits Valeo units and has inside mounting legs measuring 48mm, a pivot hole diameter of 11/10.5 x 1.5, and an adjusting hole diameter of 11.5. Those dimensions matter when matching the replacement to the original fitment, especially where the mounting ears, pivot point, or belt alignment need to line up exactly.

OEX positions this range as an aftermarket option with a focus on quality and reliability, and the product is backed by a 3yr Passenger 1yr Commercial warranty. For workshop or retail fitting, it is still important to confirm the unit make, part number VXA036, and the electrical and pulley arrangement before fitting to the vehicle.

Key Features

• 12V alternator with 225A power rating
• Valeo style replacement
• Internal regulator
• 6 groove pulley
• Clockwise rotation
• Quad leg alternator mount

Specifications

• Brand: OEX
• Product type: Alternator
• Part No.: VXA036
• Voltage: 12V
• Power rating: 225A
• Suits unit make: Valeo
• Pulley outside diameter: 54mm
• Pulley section: 6 groove

Fitment guidance

• Ford Mondeo applications are shown in the supplied fitment information
• Sample fitment years listed include 2014, 2015, 2016, 2017, 2018 and 2019
• Fitment is tied to the vehicle application details and should still be checked against the original unit and part number

Application and Buying Notes

Before ordering, compare the original alternator to VXA036 by checking the Valeo style, 12V system, 225A output, 6 groove pulley, and clockwise rotation. A replacement alternator can look similar yet differ in the mounting, regulator, or pulley arrangement, so the 48mm inside mounting legs and the quad leg mount should be treated as important checks rather than approximate measurements.

The mounting dimensions are especially relevant here because the pivot hole is listed as 11/10.5 x 1.5 and the adjusting hole diameter as 11.5. If the original unit uses a different ear spacing, bolt size, or adjuster position, the alternator may not seat correctly even if the electrical rating is suitable.

This alternator is listed with an internal regulator and no insulated return, so the charging system layout needs to match the vehicle’s original setup. That is the kind of detail that can affect installation, connector compatibility, and the way the unit integrates with the existing electrical system.

For vehicle-specific purchases, the safest approach is to confirm the part number VXA036 against the removed unit and then check the application details for the vehicle. The fitment information supplied here includes Ford Mondeo applications, with sample model years from 2014 through 2019, but the exact match should always be verified against the vehicle build and original alternator specifications.

If you are replacing a high-output alternator, the 225A rating and 54mm pulley outside diameter are useful reference points, but they do not replace a direct comparison with the original part. Matching the unit make, mount style, pulley section, and rotation reduces the risk of ordering the wrong component and saves time at installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXA036 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 48mm, Pivot Hole Diameter 11/10.5 x 1.5, Pulley Outside Diameter 54mm, Regulator Type Internal, Suits Unit Make Valeo, Alternator Mount Quad Leg, Insulated Return No.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. VXA036, Brand OEX, Description OEX Alternator 12V 225A Valeo Style, Adjusting Hole Diameter 11.5, Pin Code IR89, Power Rating (Amp) 225, Pulley Section 6 Groove, Rotation CW.

OEX Alternator 12V 225A Valeo Style. Part number VXA036 should be checked first. Listed voltage is 12. Listed output rating is 225. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number VXA036, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment using part number VXA036, the Valeo style application, and the listed mounting and electrical details before ordering. Ford Mondeo applications are shown in the supplied fitment information, but the final check should always be made against the vehicle and original alternator.

FAQ

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does this alternator have?

It is a 12V alternator with a 225A power rating.

What type of regulator does it use?

It uses an internal regulator.

What pulley setup does it have?

It has a 6 groove pulley with a pulley outside diameter of 54mm.

What mounting details are listed for this unit?

It is listed with a quad leg alternator mount, inside mounting legs of 48mm, a pivot hole diameter of 11/10.5 x 1.5, and an adjusting hole diameter of 11.5.

What vehicle fitment is shown?

Ford Mondeo applications are shown in the supplied fitment information, with sample years including 2014 through 2019. The exact match should still be confirmed against the vehicle and the original alternator.
